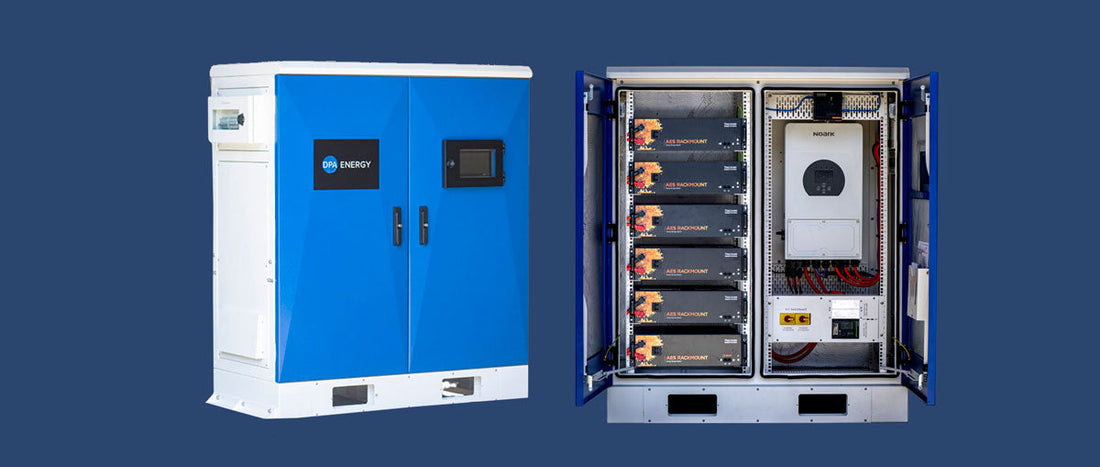

DPA ESSential™ Series
Fast Installs. Clean Compliance. Built for Installers.
The ESSential Series is DPA’s scalable, pre-wired cabinet solution. Manufactured in Victoria, it’s designed to simplify solar and battery installs across residential, commercial and remote sites.
Built for efficiency, flexibility and long-term performance, it meets Australian standards and is compatible with trusted inverter brands. It’s suitable for both on- and off-grid systems.
The DPA ESSential Series is built on trusted technology from Victron and Noark, two of the most respected names in the industry. Our long-standing partnerships ensure each cabinet is backed by proven reliability, seamless integration, and DPA’s deep product knowledge and local support.
Systems are rebate-ready with Victron (off-grid), Noark (on/off-grid) and Discover AES Rackmount 5.12kWh batteries.
Built into every ESSential cabinet, the LYNK II Gateway makes the system smarter, from faster installs to real-time performance data and remote access. It ensures seamless integration with inverters and intelligent control for greater visibility, reliability and efficiency.
Smart Monitoring Built-In
Each ESSential cabinet includes a dedicated system management interface: Ekrano GX (Victron systems) or MyNoark (Noark systems). These intuitive platforms give installers and end users full visibility over system performance – battery health, inverter data and solar input – whether onsite or remote.
Ready to Connect
Programmed, solar-ready, and cabled for rapid deployment, just connect AC and panels. Scales up to three cabinets and up to 35kWh of Discover AES Rackmount 5.12kWh batteries.
Tested for Reliability
Each cabinet is factory-tested before dispatch to minimise onsite troubleshooting and ensure peace of mind.
Aluminium Advantage
Lighter, corrosion-resistant construction for easier handling and coastal durability.
Australian-Made
IP55-rated with fan-forced cooling and optional air-conditioning. Designed for harsh heat and rugged installs.
🎥 ESSential™ Cabinets in Action: Webinar Replay
Watch the replay of Wired by DPA featuring Gareth Thomas, as he walks through the rebate-ready ESSential™ Cabinet Series, including real-world install tips, Victron and Noark configurations and what makes the system truly installer-friendly.
Built for Installers
| Core Benefit | What This Means for You |
|---|---|
| Save Time On Site | Fully pre-wired to reduce labour, simplify commissioning, and accelerate installation. |
| Australian-Made | Built in Victoria and wired to meet Australian electrical standards, with local support and quality assurance. |
| Modular & Flexible | Compatible with Victron and NOARK inverters. Select either on- or off-grid configurations to suit your project. |
| Rebate-Ready | Eligible for the Battery Rebate with NOARK (on/off-grid) and Victron (off-grid). |
| Installer-Focused | Designed with installer feedback, enabling smoother quoting, consistent builds and fewer onsite errors. |
| Certified Protection | IP55-rated enclosure: dust-resistant and sealed against low-pressure water jets, ideal for outdoor or coastal installs. |
| Custom Options | Need something specific? We offer tailored wiring, inverter and battery combinations, including storage up to 35kWh. |
What’s Inside the Pre-Wired Switchboards
DC Switchboard
Includes breakers for PV isolation and battery protection, pre-wired for faster installs and straightforward compliance.
AC Switchboard
Includes generator changeover and breaker, with inverter supply managed internally, ready to connect on-site.
Victron-Powered ESSential Cabinets
From single-phase 5kVA setups to powerful 3-phase 24kVA systems, our Victron-powered ESSential cabinets are built for both residential and C&I applications. Each system is pre-wired, tested, and includes Victron’s trusted Multiplus-II inverter/chargers and SmartSolar MPPTs.
👉 See the full comparison table below for detailed specifications and configuration options.
Noark-Powered ESSential Cabinets
Designed for simplicity, scalability, and smart energy management, our Noark ESSential range includes both single and three-phase systems from 5kW to 12kW. Each cabinet comes pre-wired, tested and equipped with Noark’s Sion or Trinix inverters and MyNoark system monitoring.
👉 Explore the full specifications in the comparison table below.
Victron
|
DPA Part Number
|
ESS-DPAE- 5kVA-100 |
ESS-DPAE-10kVA-100 | ESS-DPAE-10kVA-200 |
ESS-DPAE- 24kVA-200EXAMPLE |
| Inverter brand | VICTRON | VICTRON | VICTRON | VICTRON |
| Nominal* Inverter size | 5kVA | 10kVA | 10kVA | 3 x 8kVA |
| Special or Standard build | Special | Standard | Standard | Special |
 |
|
|
||
| Number of cabinets | 1 | 1 | 1 | 3 |
| Single (1) or 3 phase | 1ph | 1ph | 1ph | 3ph |
| Inverter/Charger | Victron Multiplus-II 48/5000 | Victron Multiplus-II 48/10000 | Victron Multiplus-II 48/10000 | 3 x Victron Multiplus-II 48/8000 |
| AC OUTPUT | ||||
| Continuous (Rated) Output Power at 25 deg C | 4kW | 8kW | 8kW | 19.2kW |
| Max Cont Current Pass Thru | 50A | 100A | 100A | TBC |
| Surge power | 9kW | 18kW | 18kW | 45kW |
| Transformer based | Yes | Yes | Yes | Yes |
| PV STRING INPUT | ||||
| Additional Solar Charger | Victron MPPT SmartSolar 450/100 | Victron MPPT SmartSolar 450/100 | Victron MPPT SmartSolar 450/200 | 3 x Victron MPPT SmartSolar 450/200 |
| Max PV Input Power | 5.7kW | 5.7kW | 11.5kW | 3 x11.5kW |
| PV String Voltage | 450V | 450V | 450V | 450V |
| # of MPPTs, # strings /mppt | 2/1 | 2/1 | 4/1 | 3x(4/1) |
| System management device | Ekrano | Ekrano | Ekrano | Ekrano |
| Number of batteries (up to and including) | Min 2 / Max 6 | Min 3 / Max 6 | Min 3 / Max 6 | Min 9 / Max 18 |
| Pre-Wired DC switchboard | YES | YES | YES | YES |
| Pre-wired AC switchboard | YES | YES | YES | YES |
| Dimensions | W 1.33m x H 1.45m x D 0.61m | W 1.33m x H 1.45m x D 0.61m | W 1.33m x H 1.45m x D 0.61m | W 4.0m x H 1.7m x D 0.61m |
| Weight without batts | 200kg | 220kg | 220kg | 900kg |
Noark
|
DPA Part Number
|
ESS-DPAE- H5-1 |
ESS-DPAE-H8-1 |
ESS-DPAE- H10-3 |
ESS-DPA-H12-3 |
| Inverter brand | NOARK | NOARK | NOARK | NOARK |
| Nominal* Inverter size | 5kW | 8kW | 10kW | 12 kW |
| Special or Standard build | Standard | Standard | Standard | Standard |
| Number of cabinets | 1 | 1 | 1 | 1 |
| Single (1) or 3 phase | 1ph | 1ph | 3ph | 3ph |
| Inverter/Charger |
Noark
Sion 5kW |
Noark
Sion 8kW |
Noark
Trinix 10kW |
Noark
Trinix 12kW |
| AC OUTPUT | ||||
| Continuous (Rated) Output Powre at 25 deg C | 5kW | 8kW | 10kW | 12kW |
| Max Cont Current Pass Thru | 35A | 50A | 45A | 45A |
| Surge power (for 10 seconds) | 200% Rated Power | 200% Rated Power | 200% Rated Power | 200% Rated Power |
| Transformer based | No | No | No | No |
| PV STRING INPUT | ||||
| Max PV Input Power | 7.5kW | 12kW | 15kW | 18kW |
| PV String Voltage | 500V | 500V | 800V | 800V |
| # of MPPTs, # strings /mppt | 2/1 | 2/2 | 2/2 | 2/2 |
| System management device | MyNoark | MyNoark | MyNoark | MyNoark |
| Number of batteries (up to and including) | Min 2 / Max 6 | Min 3 / Max 6 | Min 3 / Max 6 | Min 3 / Max 6 |
| Pre-Wired DC switchboard | YES | YES | YES | YES |
| Pre-wired AC switchboard | YES | YES | YES | YES |
| Dimensions | W 1.33m x H 1.45m x D 0.61m | W 1.33m x H 1.45m x D 0.61m | W 1.33m x H 1.45m x D 0.61m | W 4.0m x H 1.7m x D 0.61m |
| Weight without batts | 200kg | 210kg | 220kg | 220kg |
Need something custom?
Speak with your DPA representative about tailored configurations to meet your project needs.
Standard cabinet size is 1330mm (W) × 1450mm (H) × 610mm (D).
For larger storage, ask about our 11-battery cabinet (Part No: ESS-DPAE-PLAIN-CABINET).
