Deye Range
Deye have four product groups in the commercial range offered by DPA, for on grid, fringe of grid, and most off grid applications.
BOS-G, GE-F60, GE-F120, MS-G215 & MS-GS215 range
-

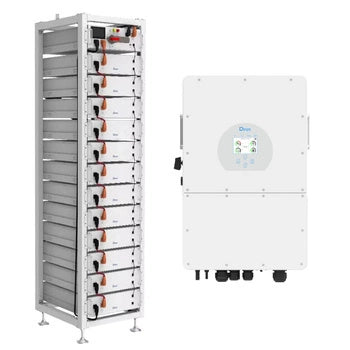

BOS-G range
Rack, rack mounted batteries, HV box connects to selected Deye HV hybrid inverters.
View Specifications- Select Deye inverter: 30-50kW, sold separately
- Rack options 8 batt or 12 batt
- 40 - 120kWh
- One shelf space in rack is for the HV box
-
GE-F60 range
Cabinet & 12 Batteries. Inverter size optional
View Specifications- Select Deye inverter: 30-50kW, sold separately
- Cabinet holds 12 batteries-60kWh
- BMS / EMS
- Thermal management
- Monitoring & communications
-

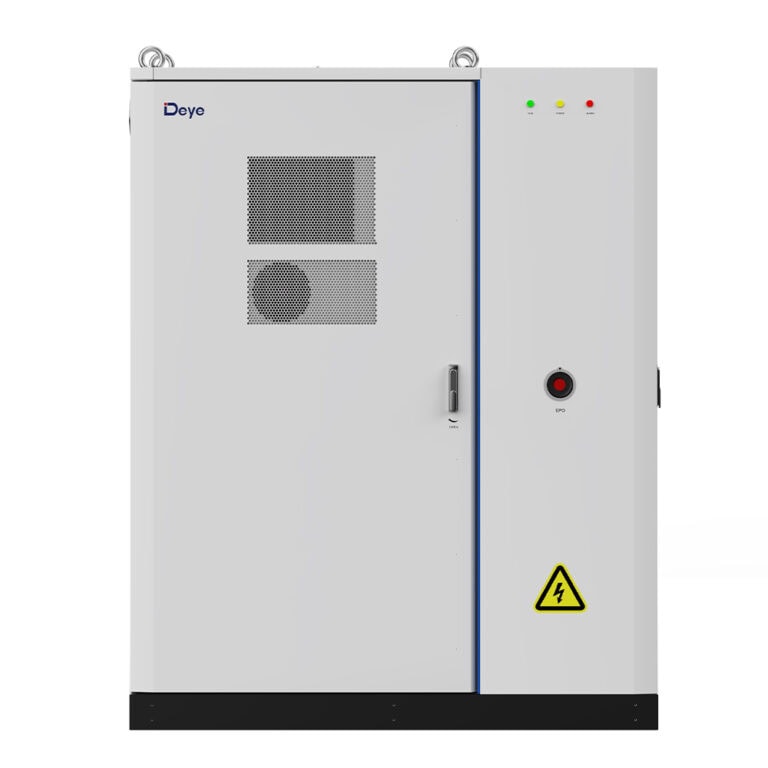

GE-F120-2H6
An all-in-one commercial energy storage platform integrating:
View Specifications- 50kW Deye HV inverter inside cabinet
- LiFePO₄ battery system
- BMS / EMS
- Thermal management
- Monitoring & communications
-

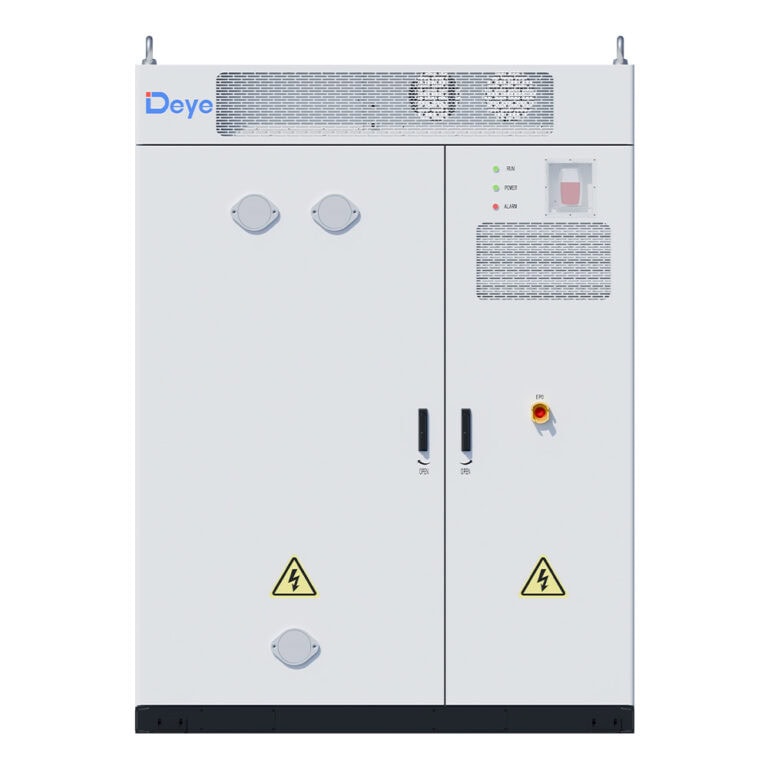

MS-G215-2H3
215kWh storage - 100kW output power
View Specifications- MS-G215 (no solar connections)
- MS-GS215 (150kW solar connection)
- BMS / EMS
- Thermal management
- Monitoring & communications
-
System Overview
All components are manufactured by Deye for ease of integration, commissioning and operation.
-
System Configuration
- High Voltage Battery architecture
- Scalable from 60kWh to 13MWh
- Cabinet units have built in air conditioners
-
C&I Product Range
- GE-F60 IP55
- GE-F120-2H6 (120kWh)
- MS-G215-2H3 (215kWh)
- MS-GS215-2H3 (215kWh) integrated solar inputs.
Integration & Deployment Considerations
-
Enclosure IP Rating
- BOS-G Batts IP20, Inv IP65
- GE-F60 IP55
- GE-F120-2H6 IP55
- MS-G215-2H3 IP54
-
Solar Integration
- BOS-G, Select Deye HV Hybrid inverter (not included)
- GE-F60, Select Deye HV hybrid 30-50 (not included)
- GE-F120-2H6, Deye HV hybrid 50 included/inside
- MS-G215-2H3 - add external AC coupled solar
- MS-GS215-2H3 - includes MPPT 150kW dc
-
VPP Virtual Power Plant
For grid connect sites, consider Deye's CoPilot that integrates with Amber, Local Volts, GreenSync, Evergen etc.
-
Warrant & CEC listing
10 year warranty. Check CEC listing for inverters and battery combinations.
Evaluating Energy Storage Systems for Your Project?
Deye systems require structured integration planning and inverter compatibility review before procurement. Speak with our Commercial Team to confirm suitability, configuration, and deployment pathway.
