Discover AES Commercial Range
There are three Discover battery solutions: All In One AiONE266 AES 210HV and CAB426. All scalable to larger systems. The outdoor cabinet systems include advanced thermal management, intelligent BMS control, and scalable deployment architecture.
-

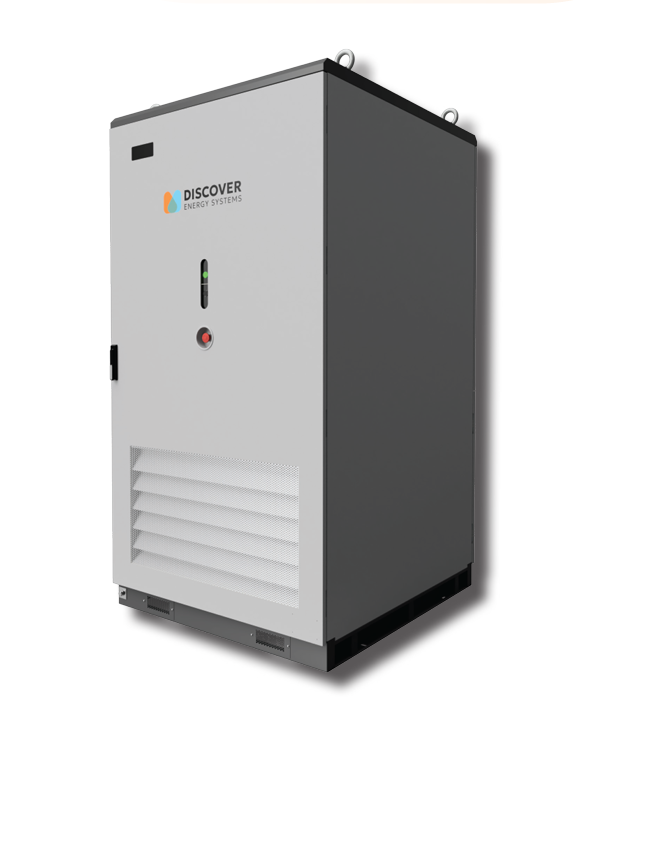

All In One AiONE266 kWh
All In One - For grid interactive applications, peak shaving, load shifting, demand charge reduction
View Specifications- Usable energy capacity: 260kWh
- Integrated 100 kW inverter, PCS & EMS
- Built-in liquid cooling and heating
- Built-in fire protection
- Scalable deployment platform
-

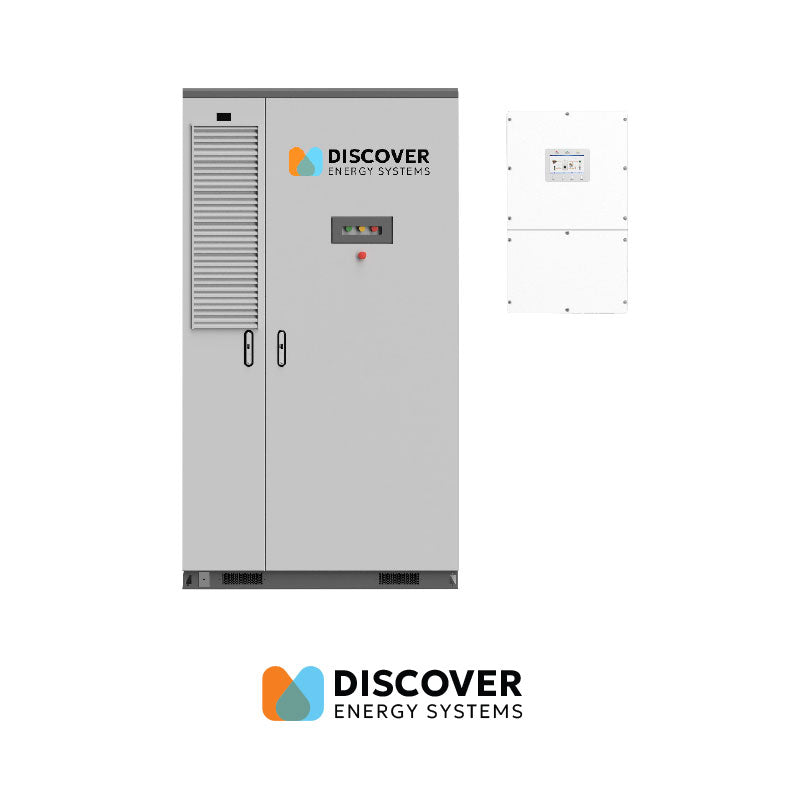

AES 210HV Outdoor Cabinet System
Commercial high-voltage lithium energy storage platform. Use with Solis or Deye HV range
View All Downloads via Store- Usable energy capacity: 209kWh
- Integrated thermal management
- Advanced BMS architecture
- Scalable deployment platform
- Designed for backup power and grid-support applications
-
AES CAB 426 Outdoor Cabinet System
Commercial high-voltage lithium energy storage platform. Use Sinexcel HV range
View Specifications- Usable energy capacity: 460kWh
- Integrated thermal management
- Advanced BMS architecture
- Scalable deployment platform
- Designed for backup power and grid-support applications
Commercial Outdoor Battery Architecture
Discover AES platforms are engineered for commercial deployment where scalability, resilience, and intelligent energy management are required. Integrated cabinet architecture has been designed to simplify deployment and ensure long-term reliable operation.
-
Capacity Range
AES210HV - 209 kWh usable. Can be scaled for larger applications to 5 MWh.
All In One 266 - 260 kWh usable. Integrated 150kW inverter. Can be scaled to 5 MWh*
CAB 426 - 420 kWh usable. Combine with Sinexcel PCE for larger applications
-
Architecture
High-voltage lithium platform with integrated BMS and commercial system integration pathways.
Outdoor cabinet-based architecture engineered for scalable commercial deployment.
-
Thermal Management
Liquid cooled batteries
Designed for stable operation across demanding commercial environments.
Integration & Deployment Considerations
-
Commercial Integration
Discover AES commercial systems require considered integration planning prior to deployment. For the AES210HV and CAB426, system design should consider inverter compatibility where as the All In One 266 has an integrated 150kW inverter PCE.
-
HV Inverter Pairing
Where required, high-voltage inverter compatibility should be reviewed against system DC voltage range, communication protocols, and charge/discharge parameters. Integrated communication and control architecture plays a critical role in long-term system stability.
-
Deployment Planning
Commercial battery systems require site preparation, well planned installation and commissioning and testing. These should align with manufacturer recommendations and any on site systems operation requirements.
-
Protection & Compliance
For grid connected sites, a grid protection strategy for local distributor compliance should be verified. Commercial deployments should include appropriate safety, monitoring, and operational protection systems.
Evaluating cabinetised storage for your project?
Discover Energy Systems recommend structured integration planning and inverter compatibility review before procurement. Speak with our Commercial Team to confirm suitability, configuration, and deployment pathway.
