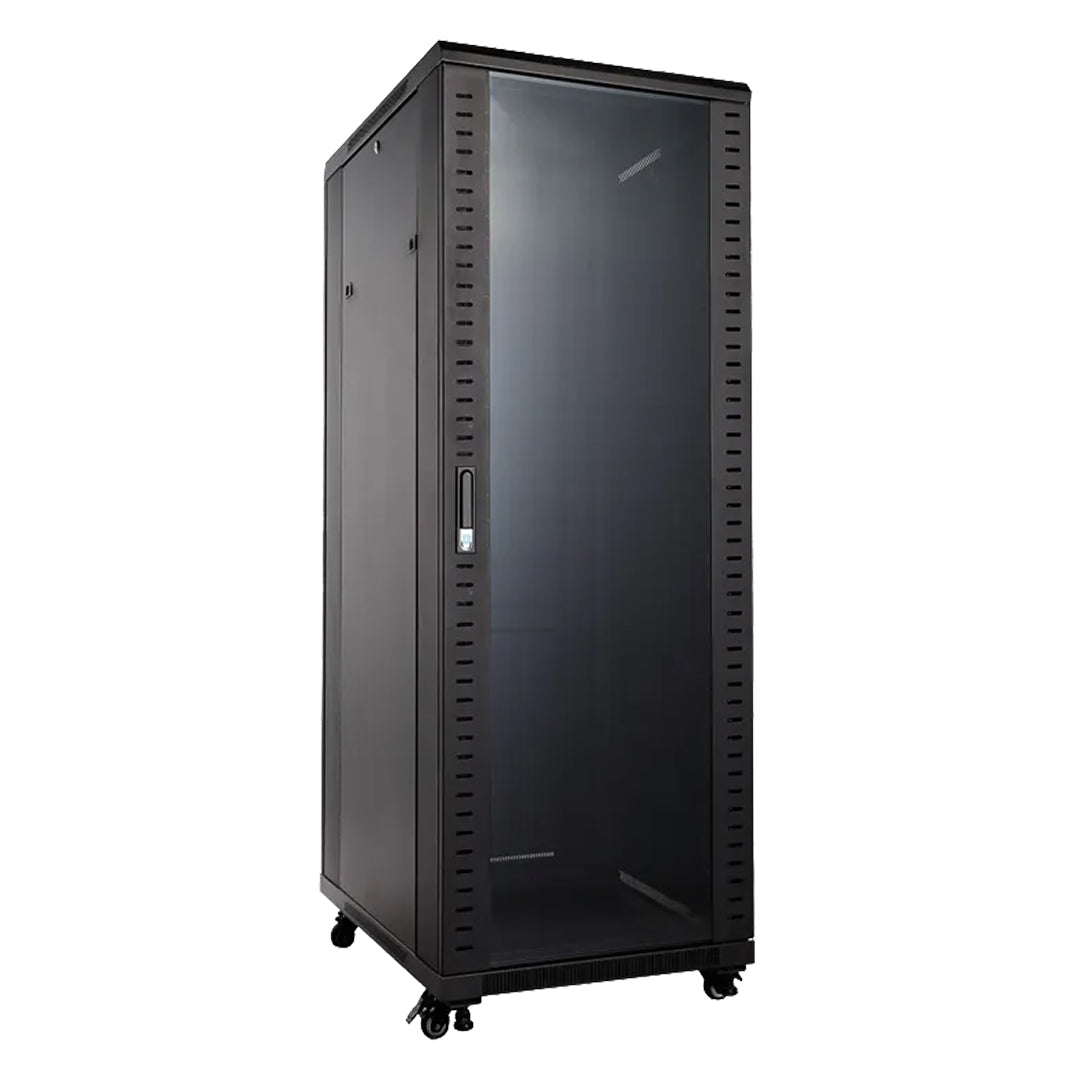

DPA 32RU 19” Data Rack Cabinet to suit 8 AES Batteries IP20 - AES8BIP20-C and one AES Batt Combiner, all sold separately.

DPA 32RU 19” Data Rack Cabinet to suit 8 AES Batteries IP20 - AES8BIP20-C and one AES Batt Combiner, all sold separately.

Please sign in to see pricing
View full details

DPA 32RU 19” Data Rack Cabinet to suit 8 AES Batteries IP20 - AES8BIP20-C and one AES Batt Combiner, all sold separately.

Dpa 32Ru 19 Data Rack Cabinet To Suit 8 Aes Batteries Ip20 Aes8Bip20 C And One Aes Batt Combiner All Sold Separately

DPA R19 Server Rack 32RU 600W 600D 1655H:

The DPA 19” Floor Mount Racks cater for effortless installation of both the cabinet and up to 8x Discover AES Batteries (40.96kWh) and 1x Discover AES Battery Combiner module. Also Includes pre-installed shelves.

Featuring a sturdy frame manufactured to precise dimensions from SPCC high quality cold rolled steel with a thickness of 2mm for the rails, 1.2mm for the frame and 1.0mm side panels, making the racks light without compromising on strength.

Assembly Instructions:

Fully assembled IP20 rated rack made from 1.5mm SPCC high quality cold roll steel with a powder coat finish

*Note: Discover AES Batteries and Combiner sold separately.

Key Features

  • Standard Inclusions: Power rail, fan, fixed shelves and cage nuts
  • Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 standard
  • CONSTRUCTION:
  • Sturdy frame made from high quality cold rolled steel
  • Rails 2mm, Frame and doors 1.2mm, side panels 1mm
  • Colour - Black RAL 9005
  • FRONT GLASS DOOR AS STANDARD:
  • Fully tempered glass 5mm
  • Clear view of inside the cabinet
  • Earth lead connected to doors
  • Quick release hinges
  • Perforated doors available as optional item
  • REAR BI-FOLD PERFORATED DOORS:
  • Perforated for increased airflow
  • Bi-fold doors save space when opening
  • Quick release hinges
  • SIDE PANELS:
  • Removable side panels
  • Keyed cam locks included (different key to front door)
  • RAIL:
  • Max load 800kg

Additional Features

  • RU marking printed on to the front and rear rails
  • for easy placement of components
  • Easy to adjust rails
  • CABLE ACCESS:
  • Generous cable access on top (front and rear)
  • Bottom cable access via 5 removable cable entry
  • plates
  • AIR FLOW:
  • Fan box included with all floor mount racks
  • 600mm Deep racks - 2 fans
  • 800mm and deeper racks - 4 fans
  • Fan box mounted on inside top of rack
  • CABLE MANAGEMENT:
  • 120mm between front door and rail for cable management
  • PALLET MOUNTING:
  • Secured to, and shipped on a pallet for safe and easy
  • transportation
  • Attached to pallet via brackets - quick and easy to remove
  • once on-site
  • FLOOR MOUNTING
  • Four heavy duty castors (2 with brakes) fitted for positioning rack on site
  • Four adjustable levelling feet
