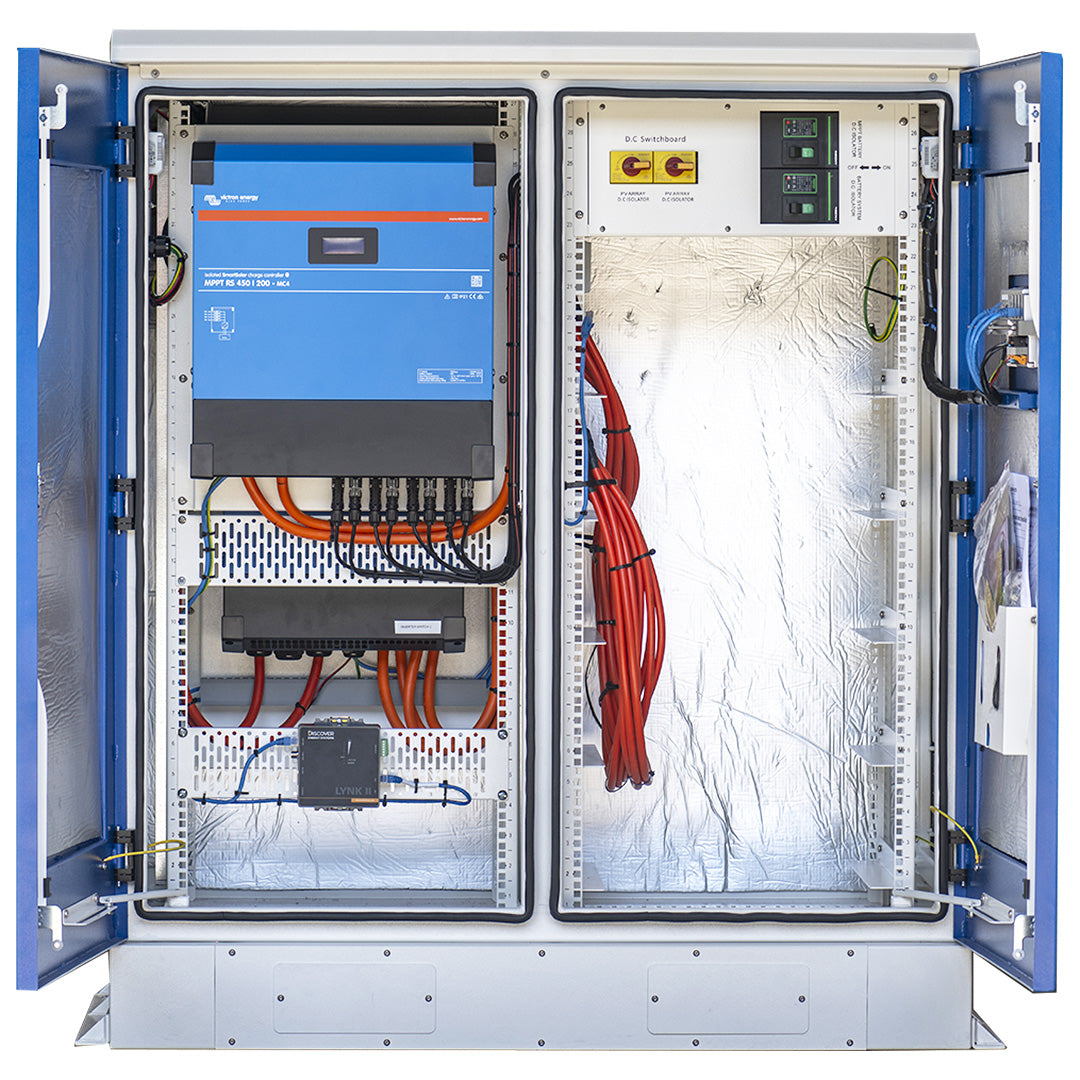

DPA Energy ESSential Pre-Wired Cabinets (Victron):
Introducing the new DPA Energy ESSential cabinets, designed to provide quality, ease of installation, and a professional finished look for scalable energy solutions. Equipped with Victron or Noark charging equipment, these cabinets can accommodate up to 6x Discover AES 5.12kWh LifePO4 48-48-5120 - 900-0062 batteries (25.6kWh).
Built in Australia to withstand harsh conditions, the cabinets feature an IP55 rating with built-in fans, AC and DC circuit protection, and optional air-conditioning for warmer climates. The use of aluminium ensures a lighter base weight and suitability for coastal conditions. Each cabinet is factory tested to ensure site efficiency and customer satisfaction.
The DPA Essential cabinets offer customizable designs from 5kVA - 45kVA, providing tailored energy solutions for every application.
Features:
Ready To Connect:
Essential's are pre-wired, programmed and ready for solar and AC connection on site, saving countless hours on site.
Aussie Ready:
Aussie conditions are harsh, which is why the IP55 rated Essential is heavily insulated, fitted with fan forced cooling across all areas of the cabinet, with optional air-conditioning available for warmer climates.
Flexible Design:
No Essential has to be the same, DPA Energy can provide a customised design from 3kVA - 45kVA using the Essential's modular design.
Factory Tested:
Every Essential is factory tested prior to dispatch, leaving no stone unturned to improve site efficiency and overall customer satisfaction.
Aluminum Vs Steel:
The Essential has been purposefully designed using aluminum over mild steel or other alternatives to ensure the system can be maneuvered on site due to it's significantly lighter base weight, and is fit for coastal conditions.
Includes Discover Lynk II Communication Gateway:
The Lynk 2 Communication gateway unlocks the full potential of lithium batteries by providing cell by cell data and intelligence in real time, also holding significant records of battery interval data to assist in troubleshooting. Using the Lynk 2 programmable relays, users can trigger relays using battery SoC and current to control external devices, making the Discover battery one of the most technologically advanced batteries on the market.
Reduced Footprint:
Most Off-Grid Solar Systems are built in a custom built room, using a lot of space. The Essential is compact measuring 1330mm X 610 wide long X 1450mm high.
Aesthetics:
The Essential has been designed to be aesthetically pleasing to homeowners, making it an easier choice when considering system options.
Specifications:
- Inverter: Victron MultiPlus-II 48/10000/140-100 230V
- Solar Charger: Victron SmartSolar MPPT RS 450/200-MC4
- System Management Device: Ekrano
- Battery Storage: Holds up to 5x Discover AES 5.12kWh LifePO4 48-48-5120 - 900-0062 batteries (25.6kWh).
- DC Switchboard: Pre-Wired & Tested
- AC Switchboard: Pre-Wired & Tested
- Programming: Programmed Prior To Dispatch
- IP Rating: IP55
- Cabinet Material: Aluminium
- Weight: 210kg Without Batteries (Approx)
- Dimensions: 1330mm X 610 wide long X 1450mm high
Data Sheet:
https://files.dpa.energy/wp-content/uploads/2025/10/DPA-ESSential-Victron-Data-Sheet.pdf
Brochure:
https://files.dpa.energy/wp-content/uploads/2025/10/DPA-ESSential-Cabinet-Brochure.pdf
Manual:
https://files.dpa.energy/wp-content/uploads/2025/10/DPA-ESSential-User-Manual-3.pdf
