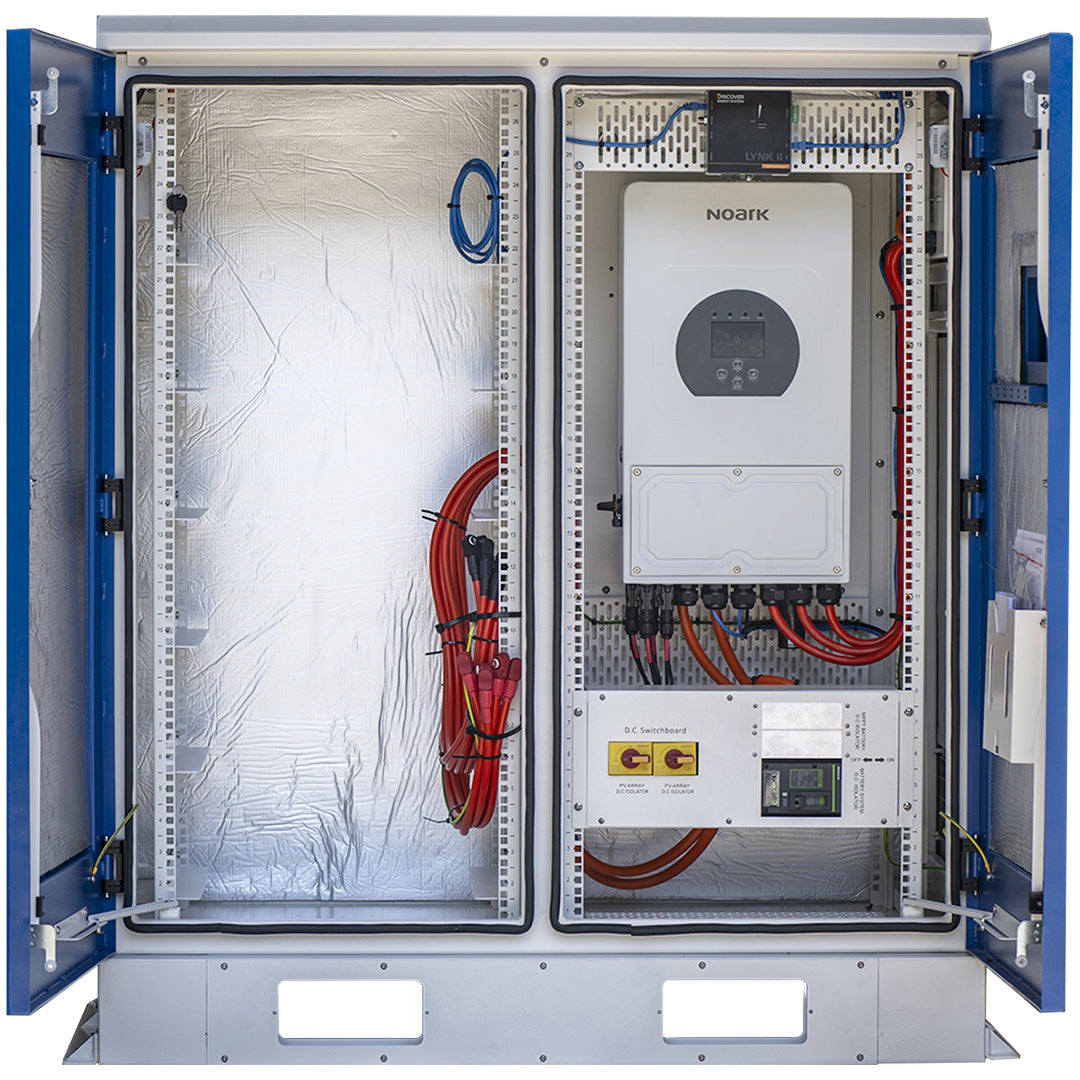

DPA Energy ESSential 12kW Three Phase Pre-Wired Cabinet (Noark)

Overview

The DPA Energy ESSential Pre-Wired Cabinet (Noark) is a professionally engineered, all-in-one energy storage cabinet designed to deliver quality, scalability, and ease of installation for residential and commercial energy systems.

Built in Australia to withstand demanding environmental conditions, the ESSential cabinet integrates Noark hybrid inverter technology, lithium battery storage, AC and DC protection, and advanced monitoring. Each unit is factory wired, programmed, and tested to minimise on-site labour while delivering a clean, professional finished installation.

Key Features

Ready-to-Connect System Design

• Pre-wired, programmed, and tested prior to dispatch
• Solar and AC connection only required on site
• Significantly reduces installation and commissioning time

Australian-Built for Harsh Conditions

• IP55-rated insulated aluminium enclosure
• Fan-forced cooling across all cabinet zones
• Optional integrated air-conditioning for warmer climates

Flexible & Scalable Design

• Custom system configurations from 3 kVA to 45 kVA
• Modular architecture allows tailored solutions
• Suitable for a wide range of hybrid and off-grid applications

Lightweight Aluminium Construction

• Aluminium cabinet reduces base weight for easier site handling
• Improved corrosion resistance for coastal installations
• Approx. 210 kg cabinet weight (without batteries)

Advanced Battery Intelligence

• Includes Discover Lynk II Communication Gateway
• Real-time cell-by-cell battery data and diagnostics
• Programmable relays triggered by battery SoC and current

Reduced Footprint & Clean Aesthetics

• Compact cabinet footprint: 1330 mm × 610 mm × 1450 mm
• Eliminates the need for custom-built battery rooms
• Designed to be visually acceptable for residential installations
