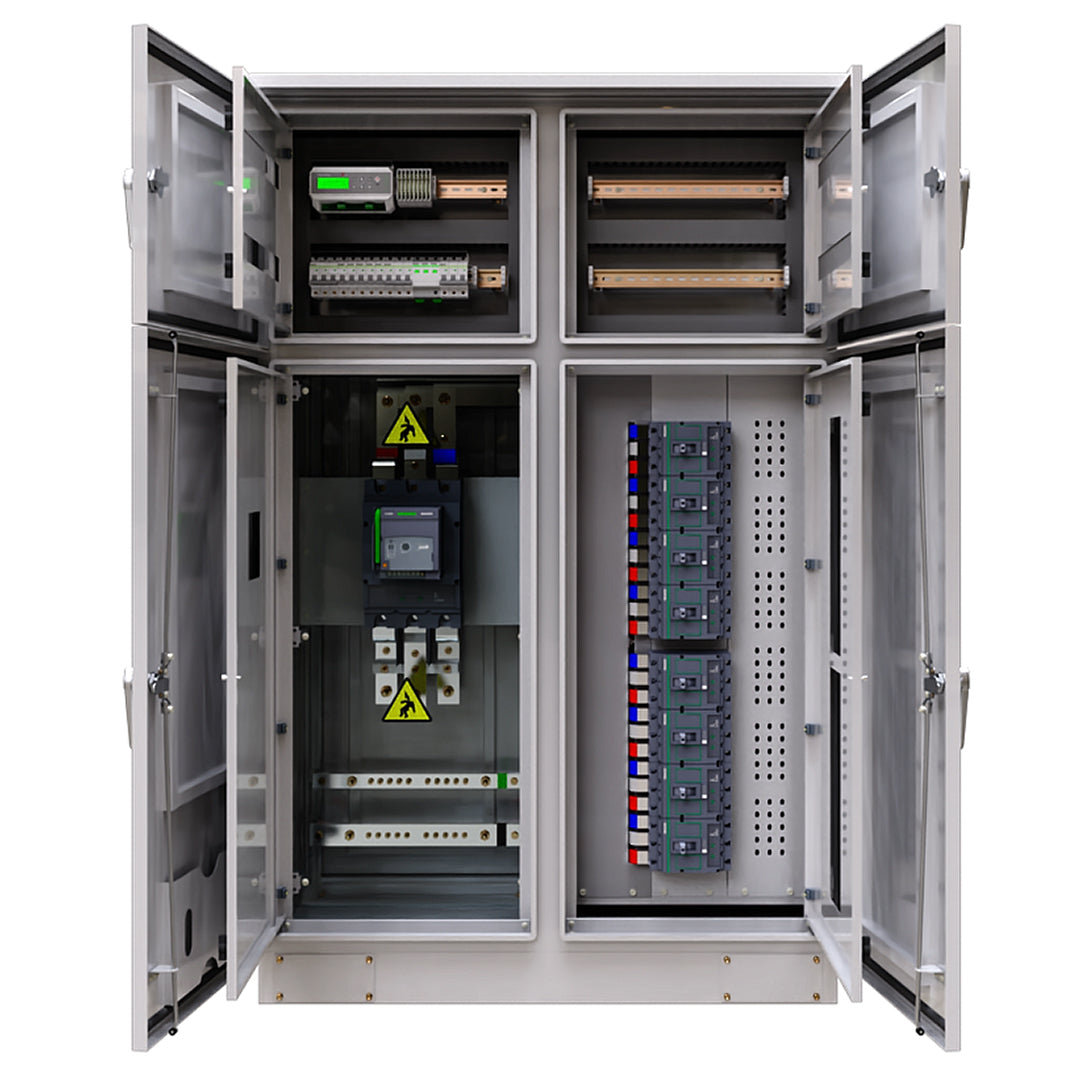

Noark 800 Amp Network Protection Board 500kVA
- Simple Engineered Solution For Commercial Solar System
- Pre-programmed With DNSP Configuration Settings
- Designed, Engineered And Assembled In Australia
- Comply with IEC 61439
Features:
- Suits PV Systems < 500kVA
- MCB Chassis suits up to 10 units (Max inverter output 160A)
- 800A Motorized Main Circuit Breaker
- ComAp MainsPro protection relay
- IP65 1.5mm powder coated mild steel enclosure
- 2000mm H x 1150mm W x 575mm D
Please Note:
Must specify the inverter make/model(s) along with the DNSP details at the time of order so the appropriate breakers and programming can be pre-configured.
Data Sheet:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Grid-Protection-Board-Ex9PVDB.pdf
System Layout:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Ex9PVDB-800-Grid-Protection-Board-Layout.pdf
Schematic:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Ex9PVDB-800-Grid-Protection-Board-Schematic.pdf
Warranty:
https://files.dpa.energy/wp-content/uploads/2025/10/Noark-Grid-Protection-Board-Warranty-Guide.pdf
