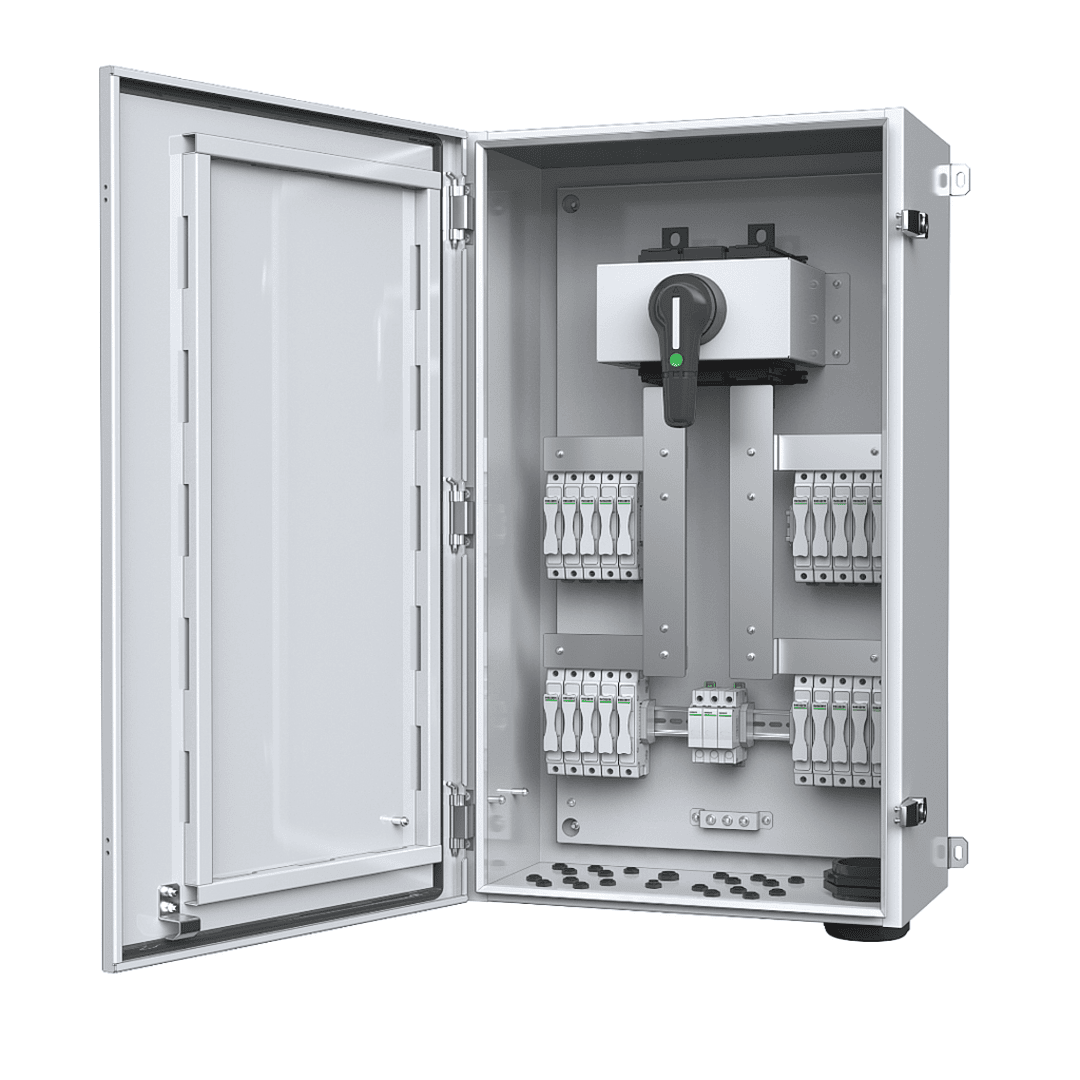

Noark Single Channel 10 String DC Combiner Box PVBx101-EG - 9710101

Overview

The 1500V DC String Combiner Box – 10 IN / 1 OUT is designed for high-voltage commercial and industrial solar PV installations. It enables up to ten PV strings to be safely combined into a single output circuit, simplifying downstream cabling and improving system organisation.

Built with all components rated to 1500V DC and compliant with Australian and international standards, this string combiner box delivers reliable protection, safe isolation, and long-term durability. It is well suited for use with modern high-voltage inverters such as Fronius Tauro and GoodWe ETC series.

Key Features

High-Voltage PV Design

• All internal components rated to 1500V DC
• Designed for modern high-voltage PV arrays
• Supports up to 10 individual string inputs

Integrated Protection & Isolation

• Input fuse protection provided for each PV string
• Fuses included as standard
• Single DC-PV2 rated switch disconnector on output

Standards & Compliance

• Compliant with IEC/EN 61439-2
• Meets AS/NZS 5033 requirements for PV installations
• Suitable for regulated commercial solar environments

Robust Enclosure Options

• Wall-mounted design with metal mounting lugs
• Available in galvanised steel enclosure
• Optional stainless steel enclosure for harsh environments

Inverter Compatibility

• Suitable for Fronius Tauro series inverters
• Compatible with GoodWe ETC series inverters
• Ideal for commercial and utility-scale PV systems
