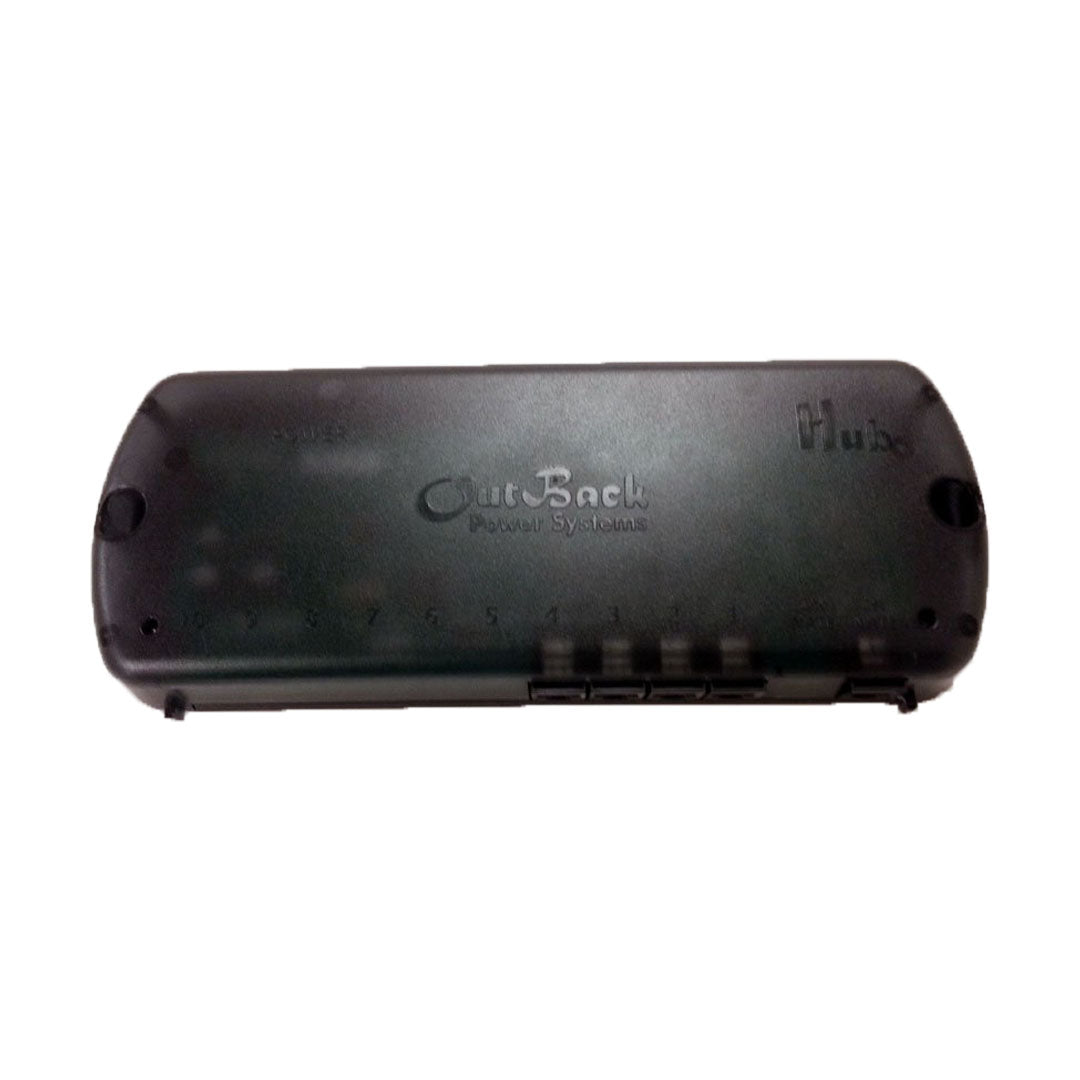

OutBack Power HUB4 System Communication Manager:
The HUB system communications manager is the backbone of your networked OutBack power conversion system. The OutBack HUB communicates stacking, load share and power save on/off signals. Interconnection cabling is standard Ethernet CAT5 with RJ45 modular jacks. Through the use of a HUB, your system is completely coordinated and managed by the Mate remote.
There are two HUB Communication Manager products:
• HUB 4, which has four component ports plus a MATE port
• HUB 10, which has ten component ports plus a MATE port
When the MATE is attached to the HUB 4, it can display and manage any combination of four FX Series Inverters/Chargers and OutBack Charge Controllers. The OutBack HUB 10 allows the
MATE to control up to 10 OutBack products of any combination.
NOTE: The OutBack HUB communicates stacking phase, load share, and incremental startup and shut down information directly among the FX Series Inverter/Chargers. The HUB is powered by any FX or OutBack Charge Controller connected to it.
Manual:
https://www.outbackpower.com/downloads/documents/system_management/hub/hub_installation_userguide.pdf
Overview:
https://www.outbackpower.com/downloads/documents/system_management/hub/hub103_quick_start.pdf
