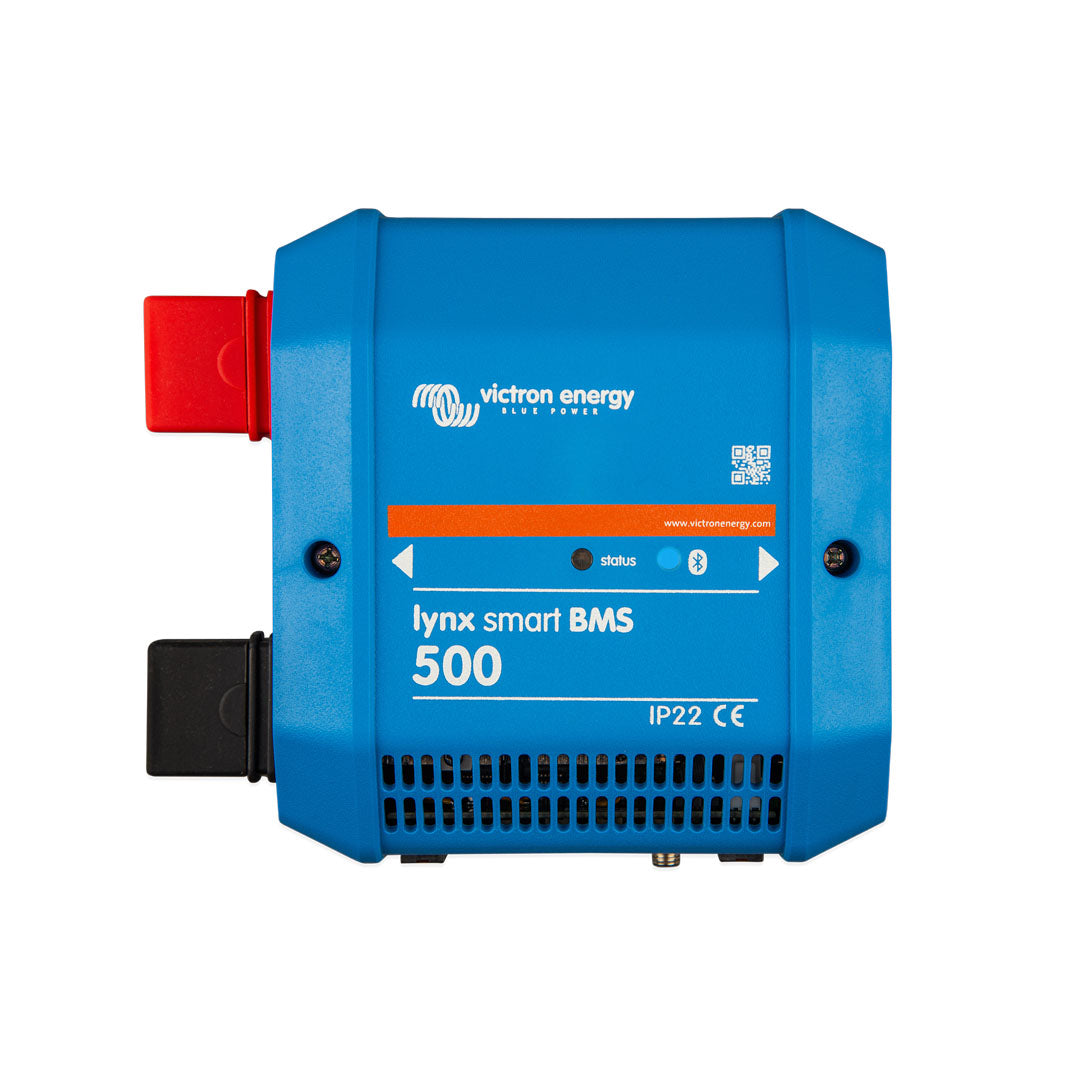

Victron Lynx Smart BMS:
The Lynx Smart BMS is a dedicated Battery Management System (BMS) for the Victron Lithium Battery Smart batteries. These batteries are Lithium Iron Phosphate (LiFePO4) batteries and are available in 12.8 V or 25.6 V in various capacities. They can be connected in series, parallel and series/parallel so that a battery bank can be built for system voltages of 12V, 24 V or 48 V. The maximum number of batteries in one system is 20, which results in a maximum energy storage of 84 kWh in a 12 V and up to 102 kWh in a 24 V1) and 48 V1) system.
For more information on these batteries, visit the Victron Lithium Battery Smart product page. Out of the various available BMSes, the Lynx Smart BMS is the most feature rich and complete option and integrates seamlessly into the Lynx Distributor system. It is available in 500 A (M8) and 1000 A (M10) versions.
- Built-in 500A contactor used as a fall-back safety mechanism and also suitable as a remote controllable main system switch.
- Battery monitor, indicating state of charge percentage and more data.
- Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
Bluetooth for use with our VictronConnect App, for setup and monitoring.
- Local and remote monitoring using a Victron GX device, for example the Cerbo GX.
- The Lynx Smart BMS is part of the modular Lynx Distribution system.
Data sheet:
https://www.victronenergy.com/upload/documents/Datasheet-Lynx-Smart-BMS-EN.pdf
Manual:
https://www.victronenergy.com/upload/documents/Lynx_Smart_BMS/109358-Lynx_Smart_BMS-pdf-en.pdf
Video:
https://www.youtube.com/watch?v=c4X13rGQPbA
