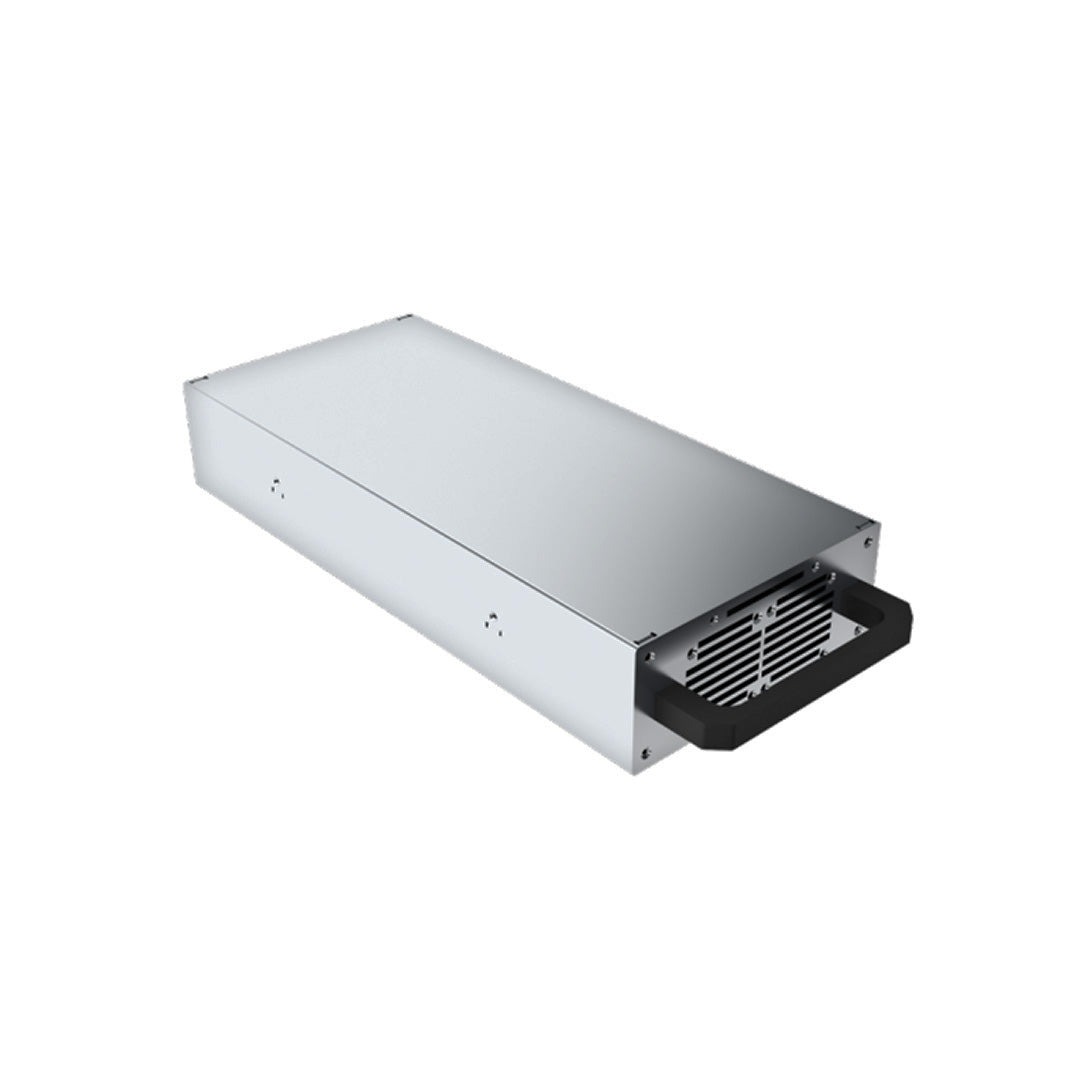

AERL Coolmax 48V 60A SRX-R Rack Mount MPPT Charger - SRX-R-600-60-48

Overview

The AERL CoolMax 600V SRX-R Rack Mounted MPPT Solar Charge Controller incorporates over thirty years of AERL’s MPPT and battery charging expertise, delivering industry-leading performance for high-quality DC-coupled power systems.

Featuring a superior MPPT tracking algorithm, ultra-low loss and high-efficiency thermal design, and intelligent thermal management, the SRX-R achieves record-breaking conversion efficiencies. Designed for demanding applications, it offers utility-grade reliability, scalability, and advanced monitoring, all supported by Australian manufacturing, warranty, and local technical support.

Note: A rack mount shelf must be purchased separately to house this MPPT controller.

Key Features

Advanced MPPT Performance

• State-of-the-art MPPT tracking algorithm
• High conversion efficiency with ultra-low internal losses
• Supports PV array oversizing up to +50%

Thermal Management & Reliability

• Intelligent thermal management for sustained performance
• Built-in overload and thermal protection
• Designed for long-term, utility-grade reliability

System Integration & Scalability

• 600 V high-voltage PV input for simplified system design
• Scalable for large battery storage applications
• Remote module control and monitoring capability

Safety & Protection

• Reverse polarity and current protection
• On-board ground fault detection
• Comprehensive electrical protection for system safety
