AERL EarthGuard Ground Fault Detection - EG-600
AERL EarthGuard Ground Fault Detection - EG-600
Description
Overview

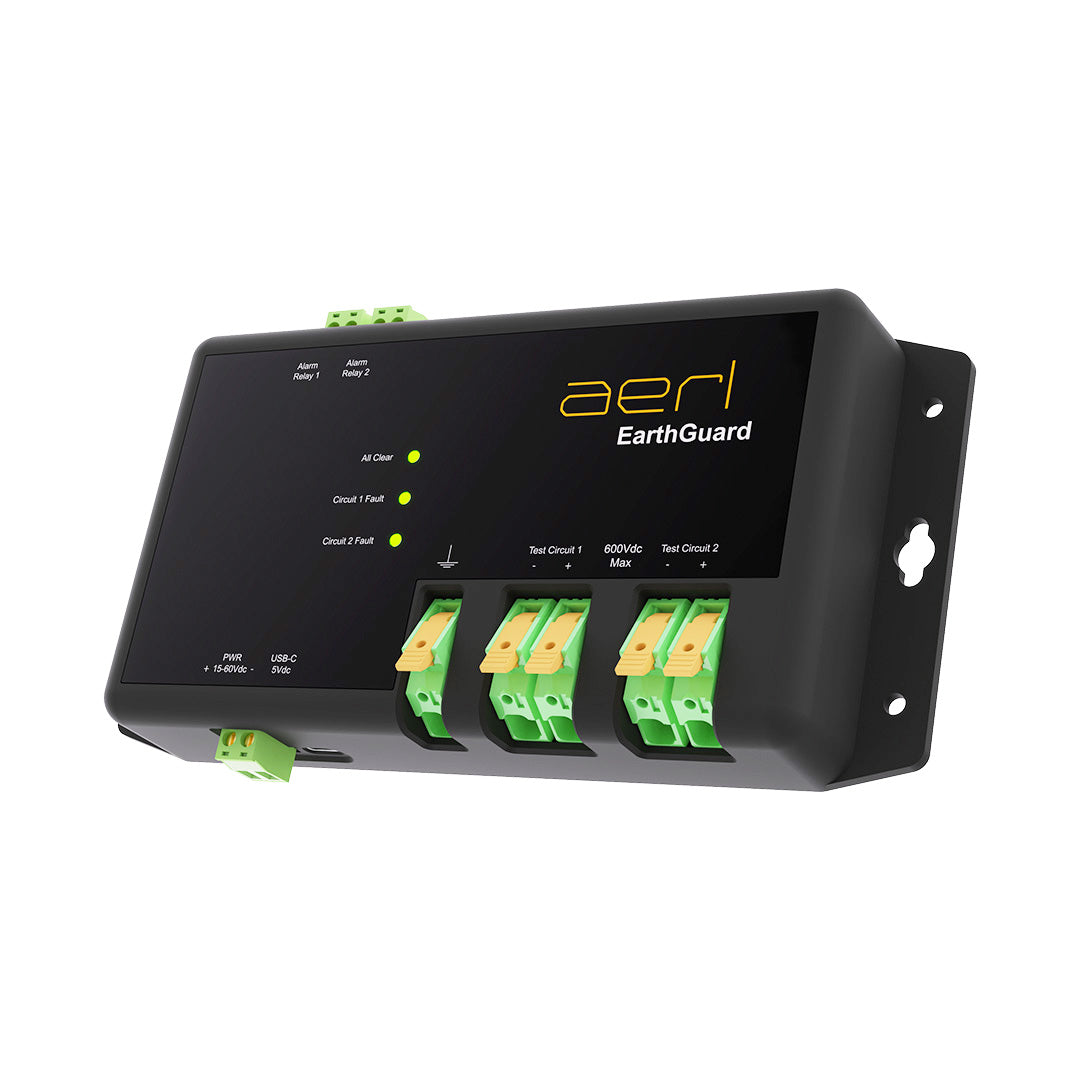

The AERL EarthGuard Ground Fault Detection – EG-600 is a standalone insulation monitoring device designed for integration with approved third-party controllers, power conversion equipment and battery systems. Using proprietary detection techniques, the EG-600 continuously monitors DC circuits for insulation degradation and earth faults.
Capable of monitoring up to two separate DC circuits simultaneously, the EarthGuard EG-600 supports PV arrays and battery systems operating between 20 and 600V DC. It is ideally suited for modern battery energy storage systems and solar installations requiring compliance with Australian safety standards.
Key Features
Advanced Earth Fault Detection
- Continuously monitors conductor insulation integrity
- High accuracy detection using proprietary monitoring techniques
- Early detection of insulation degradation and earth faults
Dual Channel Monitoring
- Monitors up to two independent DC circuits simultaneously
- Suitable for dual PV arrays or PV and battery monitoring
- Supports DC voltage ranges from 20 to 600V
Integrated Alarms & Outputs
- Onboard audio alarm for immediate fault notification
- Visual alarm indicators for clear fault identification
- Alarm relay outputs for external fault signalling and system integration
Compliance & System Integration
- Satisfies earth fault detection requirements of AS/NZS 5033:2014
- Complies with AS/NZS 5139:2019 for battery energy storage systems
- Designed for integration with Victron and other third-party systems
Application Flexibility
- Supports PV arrays up to 600V DC
- Suitable for residential, commercial and industrial energy systems
- Ideal for battery energy storage and hybrid solar installations
