BYD B-Box Premium HVM 2.76kWh Lithium Battery - BYDHVM

Overview

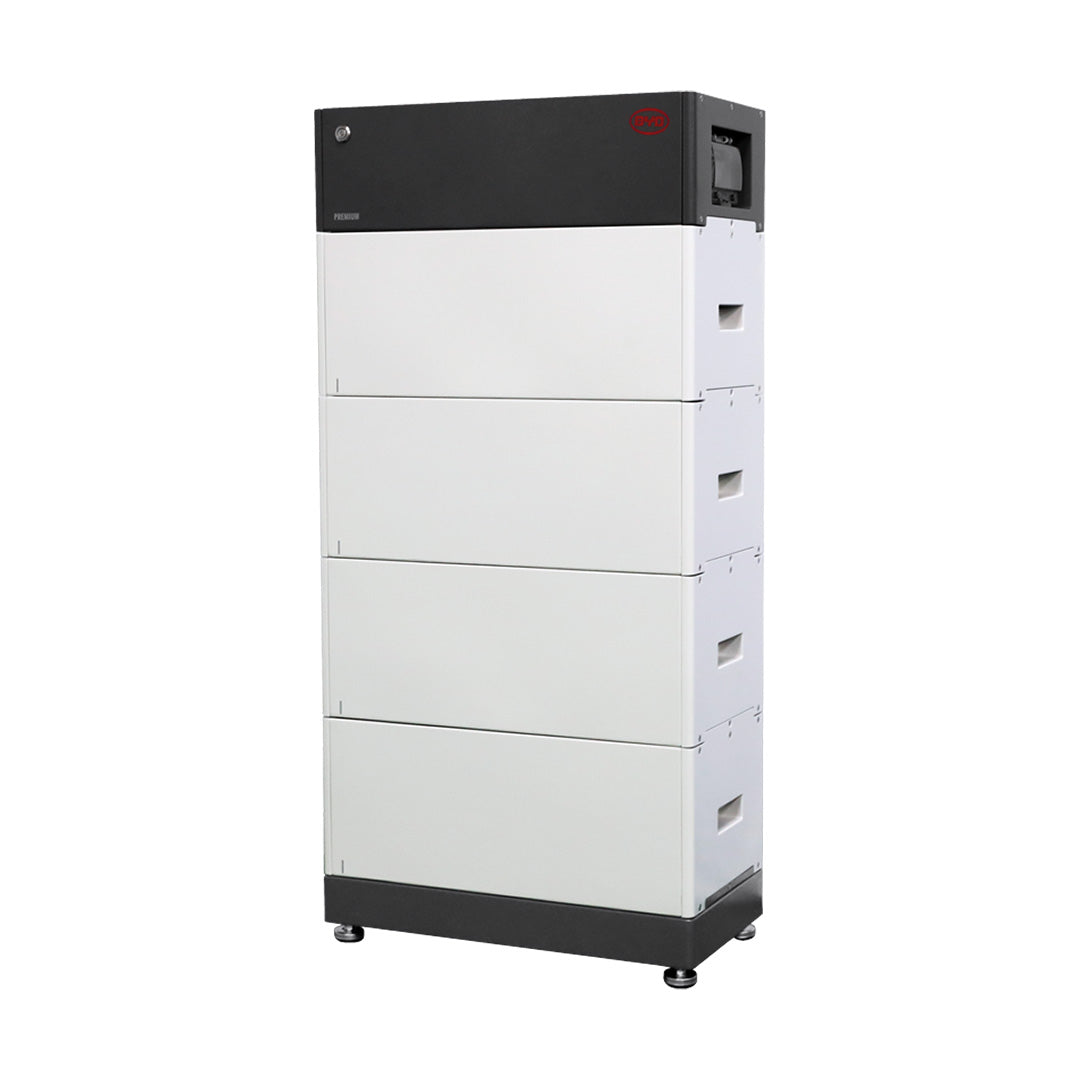

STOCK EXPECTED TO ARRIVE IN NOVEMBER. The BYD Battery-Box Premium HVM is a high-voltage lithium iron phosphate (LFP) battery system designed for use with compatible external hybrid and battery inverters. Each HVM tower consists of 3 to 8 battery modules connected in series, delivering a usable capacity from 8.3 kWh to 22.1 kWh.

Up to three identical HVM towers can be connected in parallel to achieve a maximum system capacity of 66.2 kWh. The modular design allows future expansion by adding additional HVM modules or parallel towers, making it ideal for residential and small commercial applications requiring higher storage capacity, backup power, and increased energy independence.

Key Features

Scalable High-Voltage Architecture

• Minimum of 3 HVM modules required per tower
• 3 to 8 modules per tower (8.3–22.1 kWh usable capacity)
• Up to 3 identical HVM towers connected in parallel (maximum 66.2 kWh)

Flexible System Expansion

• Add HVM modules or parallel HVM towers at a later stage
• Requires 1x Base Pack per tower
• Combiner Box required when using 2 or more towers

High Efficiency & Performance

• Real high-voltage series connection for maximum efficiency
• High charging and discharging power capability
• Optimised for self-consumption and reduced grid dependence

Safe & Reliable Battery Technology

• Cobalt-free lithium iron phosphate (LFP) chemistry
• High thermal stability and long cycle life
• Certified to high safety standards including VDE 2510-50

Inverter Compatibility & Monitoring

• Compatible with leading single-phase and three-phase high-voltage battery inverters
• Supports high-powered emergency backup and off-grid functionality
• System monitoring supported via compatible inverter platforms
