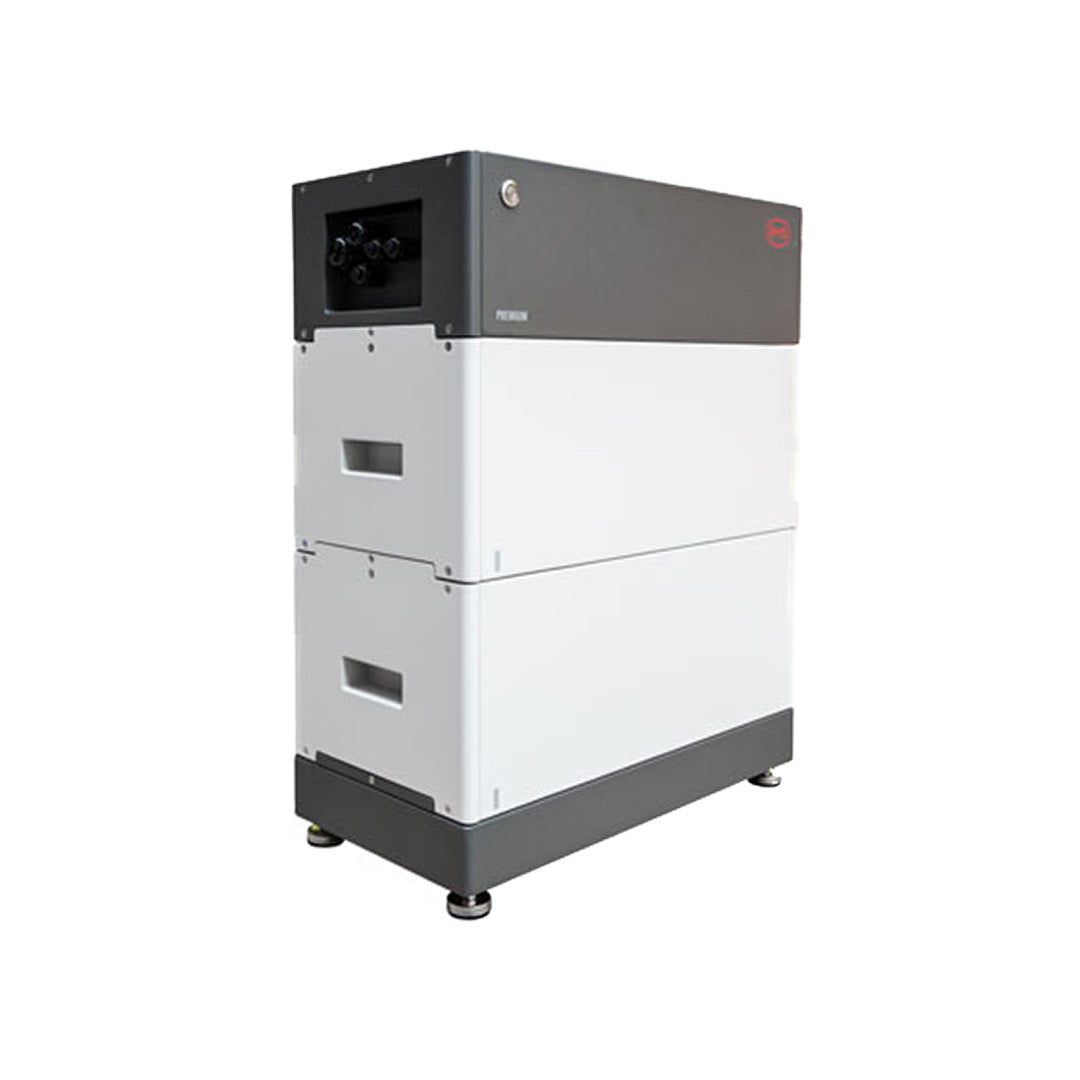

BYD B-Box Premium HVS 2.56kWh Lithium Battery - BYDHVS

Overview

ONLY 1 LEFT AT THIS PRICE. The BYD Battery-Box Premium HVS is a high-voltage lithium iron phosphate (LFP) battery system designed for use with compatible external hybrid and battery inverters. Each HVS tower consists of 2 to 5 battery modules connected in series, delivering a usable capacity from 5.1 kWh to 12.8 kWh.

Up to three identical HVS towers can be connected in parallel to achieve a maximum system capacity of 38.4 kWh. The modular design allows future expansion by adding additional HVS modules or parallel towers, making it suitable for residential and small commercial applications seeking high efficiency, backup power, and increased energy independence.

Key Features

Scalable High-Voltage Architecture

• Minimum of 2 HVS modules required per tower
• 2 to 5 modules per tower (5.1–12.8 kWh usable capacity)
• Up to 3 identical HVS towers connected in parallel (maximum 38.4 kWh)

Flexible System Expansion

• Add HVS modules or parallel HVS towers at a later stage
• Requires 1x Base Pack per tower
• Combiner Box required when using 2 or more towers

High Efficiency & Performance

• Real high-voltage series connection for maximum efficiency
• High charging and discharging power capability
• Optimised for self-consumption and reduced grid dependence

Safe & Reliable Battery Technology

• Cobalt-free lithium iron phosphate (LFP) chemistry
• High thermal stability and long cycle life
• Certified to high safety standards including VDE 2510-50

Inverter Compatibility & Monitoring

• Compatible with leading single-phase and three-phase high-voltage battery inverters
• Supports high-powered emergency backup and off-grid functionality
• System monitoring supported via compatible inverter platforms
