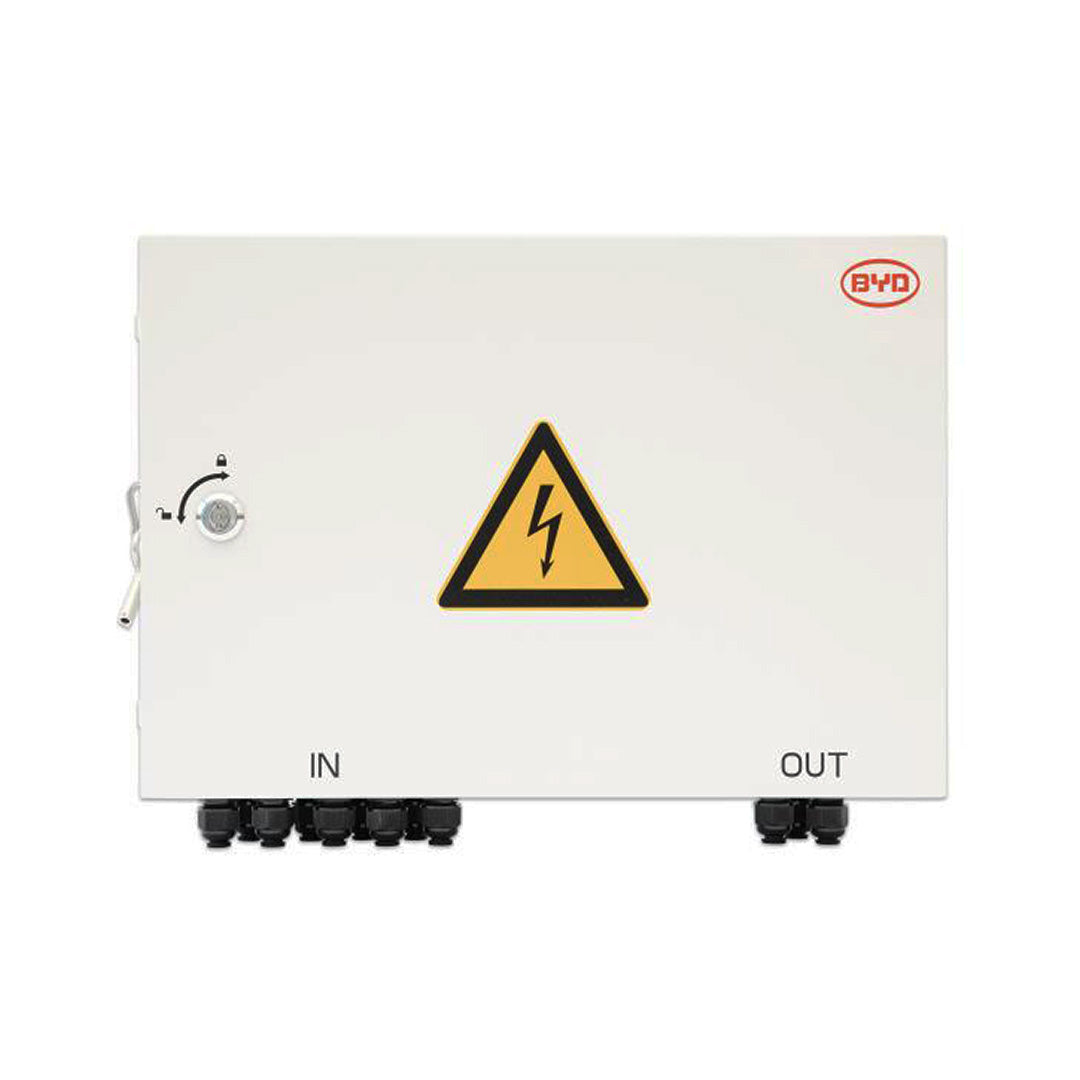

BYD B-Box Premium HVS/HVM Combiner Box - CBH-40A

Overview

The BYD Battery-Box Premium HVS/HVM Combiner Box is designed exclusively for use with BYD Battery-Box Premium HVS or HVM battery systems. It enables the parallel connection of 2 or 3 battery towers, providing a streamlined and secure solution for DC cabling in larger energy storage installations.

The combiner box simplifies system design by consolidating multiple battery towers into a single DC cable connection to the inverter. All connected towers must use the same battery type (HVS or HVM), have identical module quantities, and be installed with matching state of charge (SOC).

Key Features

Parallel Battery Integration

• Supports parallel connection of 2 or 3 Battery-Box Premium HVS or HVM towers
• Designed for scalable high-voltage battery systems
• Ensures consistent and balanced system operation

Simple & Safe DC Cabling

• Provides a secure solution for DC cable connections
• Single DC cable string output to the inverter
• Reduces installation complexity and wiring clutter

System Compatibility Requirements

• Compatible only with BYD Battery-Box Premium HVS or HVM systems
• HVS and HVM towers cannot be mixed
• All towers must have the same module quantity and equal SOC at installation
