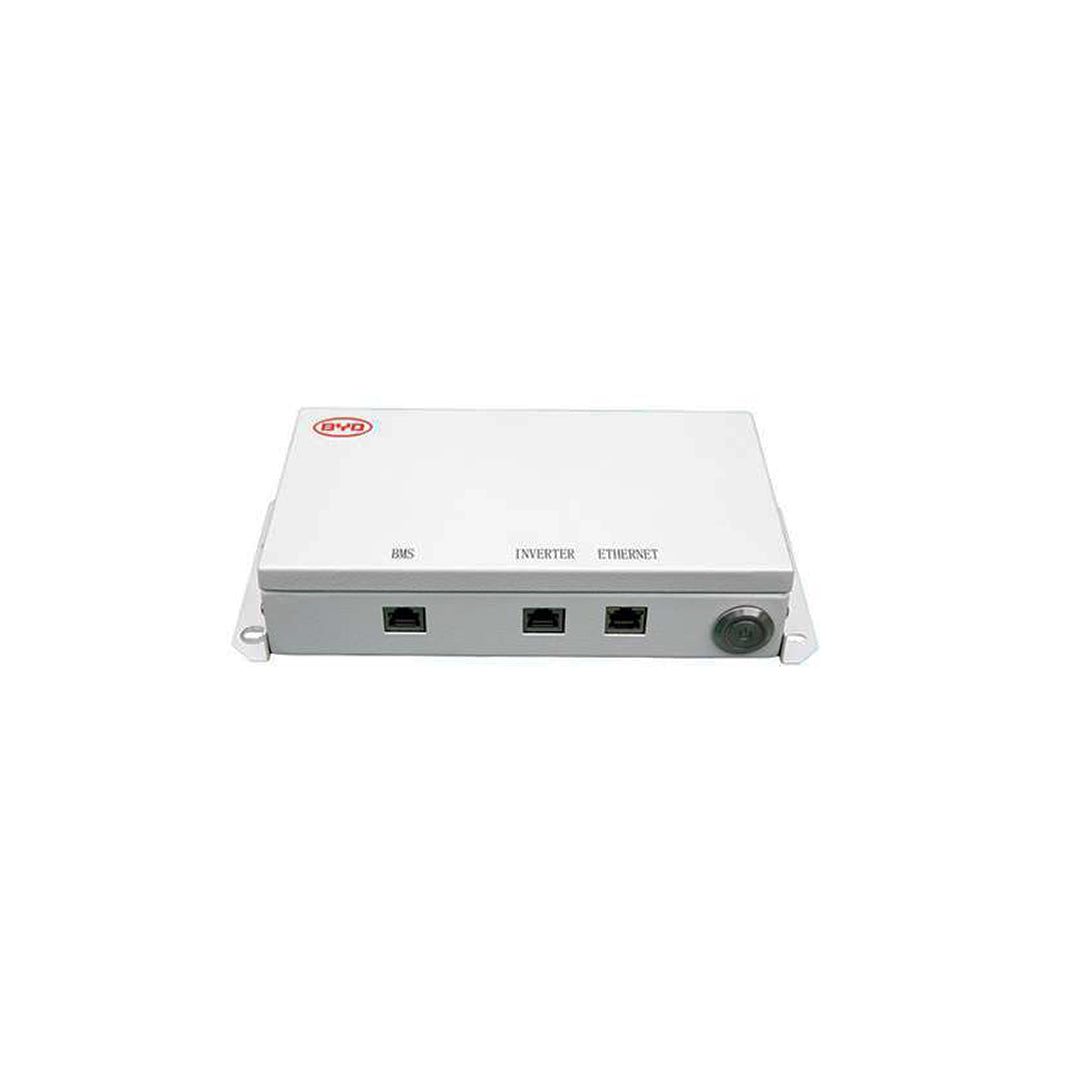

Battery Management Unit for BYD Battery-Box Premium LVL Battery System
One BMU is required per LVS system. A single BMU can manage up to 64 Batteries.
TECHNICAL DATA
Communication Ethernet/CAN/RS 485
Input voltage 40-60 V
Input current 200 mA
Weight 1 kg
Dimensions (L × W × H) 250 mm× 122 mm × 50 mm
Ambient temperature in operation -10 °C
Relative humidity (non condensing) 5% to 85%
Degree of protection (in accordance with IEC 60529) IP21
*BMU is powered by Battery Box through the network cable. No other power supply is needed.
Manual:
https://cdn.shopify.com/s/files/1/0791/3141/0749/files/BYD_Battery-Box_Premium_LV_BMU-_IP55_Instruction_Manual_V1.5-627a1b149d4da.pdf?v=1694399858
Installation Guide:
https://www.tradezone.com.au//media/custom/upload/File-1636067579.pdf
