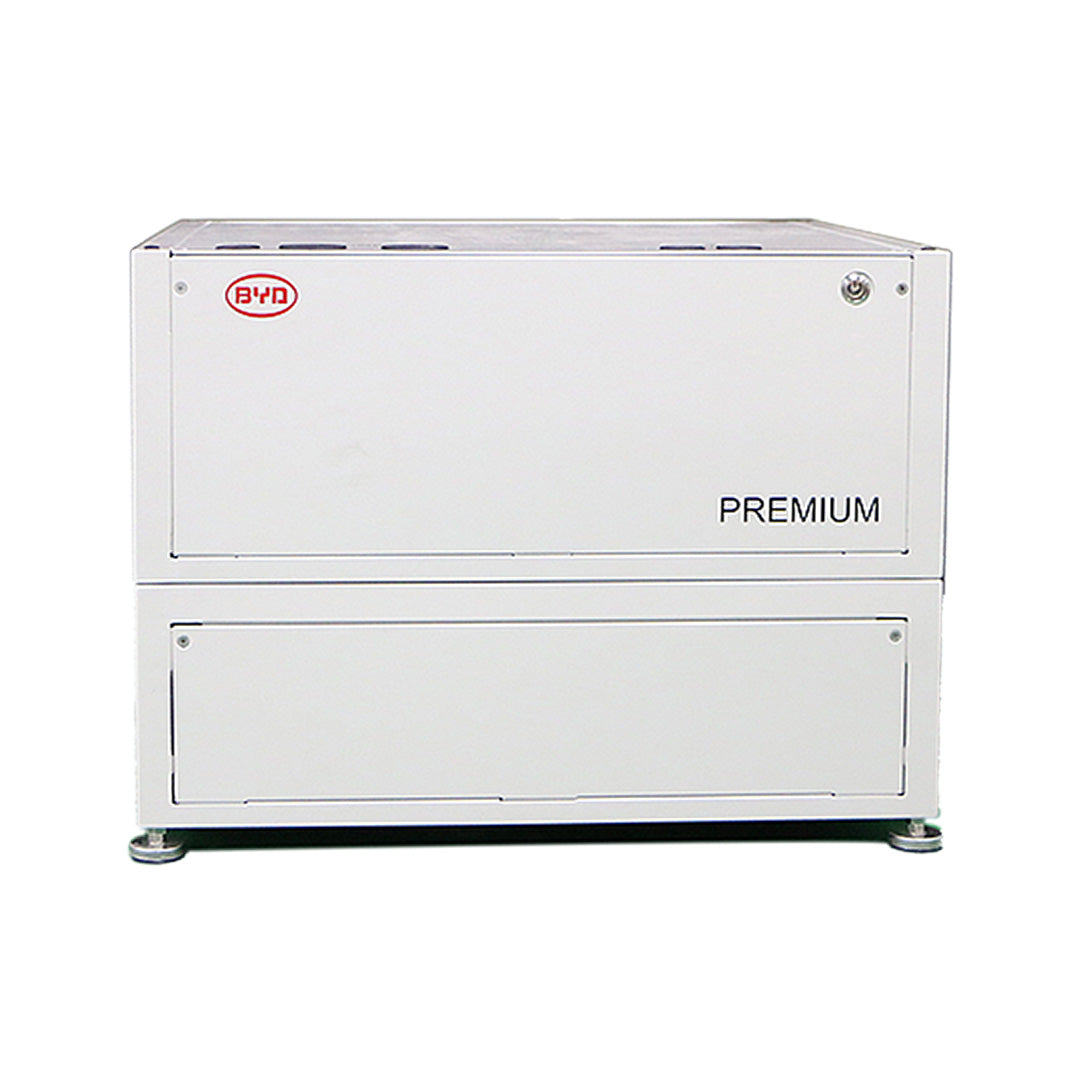

BYD B-Box Premium LVL IP20, 15.4 kWh Lithium Battery - LVL15.4
BYD B-Box Premium LVL IP20, 15.4 kWh Lithium Battery - LVL15.4
BYD B-Box Premium LVL IP20, 15.4 kWh Lithium Battery - LVL15.4
Byd B Box Premium Lvl Ip20 15 4 Kwh Lithium Battery Lvl15 4
BYD Battery-Box Premium LVL 15.4kWh:
The BYD Battery-Box Premium LVL is a lithium iron phosphate (LFP) battery for use with an external inverter. The Battery Box Premium 15.4kWh is BYD's most sophisticated LiFePO4 Solution. It has an IP20 Enclosure Protection Rating and can be scaled to 983kWh. The BYD B-Box LVL is suitable for applications such as: Residential Systems, Commercial and Industrial Applications, Telecom Systems, Hybrid and Micro Grid Solutions
Thanks to its control and communication unit (BMU), the Battery-Box Premium LVL scales to meet the project requirements, no matter how large they may be. Start with Battery-Box Premium LVL15.4 (15.36 kWh) and extend later to 983 kWh using parallel interconnection of up to 64 batteries.
Specifications per 15.4kWh unit:
Installation Video:
Inverter Compatibility Video:
Near 100% Nominal-Usable Capacity (15.4kWh/15.36kWh) Two of the 15.4kWh modules can be stacked in Lego like fashion to ensure the batteries are suitable for locations with limited space
Key Features
- Usable Energy: 15.36kWh
- Weight: 164kg
- Nominal Voltage: 51.2V
- Operating Temperature: -10C – +50C
- Weather Rating: IP20
- Round Trip Efficiency: 95%
- Scalability: 983kWh (64 Modules)
- Chemistry: Lithium Iron Phosphate (LFP) chemistry
Additional Features
- Dimensions: 500mm height x 575mm width x 650mm length
- Lithium iron technology regarded as one of the safest in the world
- Suitability for commercial, industrial and residential uses 64 of the 15.4kWh modules can be connected in parallel to provide you 983kWh of battery storage!
- IP20 rated enclosure protection
- 250A max continuous output current
- 164kg unit
- Compatible with 1 and 3 phase systems
- 10 Year Warranty
Warranty
- https://www.bydbatterybox.com/uploads/downloads/BYD%20Battery-Box%20Premium%20LVL%20Limited%20Warranty-Residential-Australia-EN%20V1.1-5f02e2cb780df.pdf
- https://www.bydbatterybox.com/uploads/downloads/BYD%20Battery-Box%20Premium%20LVL%20Limited%20Warranty-Residential-Australia-EN%20V1.1-5f02e2cb780df.pdf
Downloads
- https://bydbatterybox.com/uploads/downloads/Premium_Datasheet_LVL%20V1.1%20EN-5ebcbeddb3624.pdf
- https://www.bydbatterybox.com/uploads/downloads/bydbatteryboxpremiumoperatingmanuallvlv10-5e94664b1d50d.pdf
