Description
Overview
The Deye SUN-10K-G02P1-AU-AM2 is a single-phase, grid-connected PV string inverter delivering up to 9.99 kW of rated AC output in full compliance with AS/NZS 4777.2. With two independent MPP trackers and a maximum efficiency of 97.7%, it is built to maximise energy harvest from residential and small-commercial solar arrays.
A low 80 V start-up voltage and a wide 70–500 V MPPT range let the inverter begin generating earlier in the day and adapt to a broad range of string configurations, while zero-export and VSG (Virtual Synchronous Generator) support, optional string-level monitoring and an optional anti-PID function make it a flexible, future-ready choice for the Australian grid.
Key Features
High-Efficiency Power Conversion
- Maximum efficiency up to 97.7%, Euro efficiency 97.2%
- MPPT efficiency >99% for maximum energy harvest
- Transformerless (non-isolated) topology with natural cooling — no fans, silent operation (≤35 dB)
Flexible PV Input & Dual MPPT
- 2 MPP trackers, 2 strings per tracker, up to 15 kW / 20,000 W PV input
- Low 80 V start-up voltage and wide 70–500 V MPPT operating range
- Maximum PV input voltage 550 V; up to 26 A operating current per MPPT
Grid Support & Smart Functions
- Up to 9.99 kW rated AC output, 43.5 A, 230 V single-phase (L/N/PE)
- Zero-export application and VSG (Virtual Synchronous Generator) support
- Optional string intelligent monitoring and optional anti-PID function
Comprehensive Protection
- Integrated AFCI (arc-fault), residual current detection and anti-islanding protection
- DC reverse-polarity, AC over-current, over-voltage and short-circuit protection
- Type II surge protection on both DC and AC; insulation impedance detection
Monitoring & Communication
- RS485 / RS232 / WiFi / LAN communication interfaces

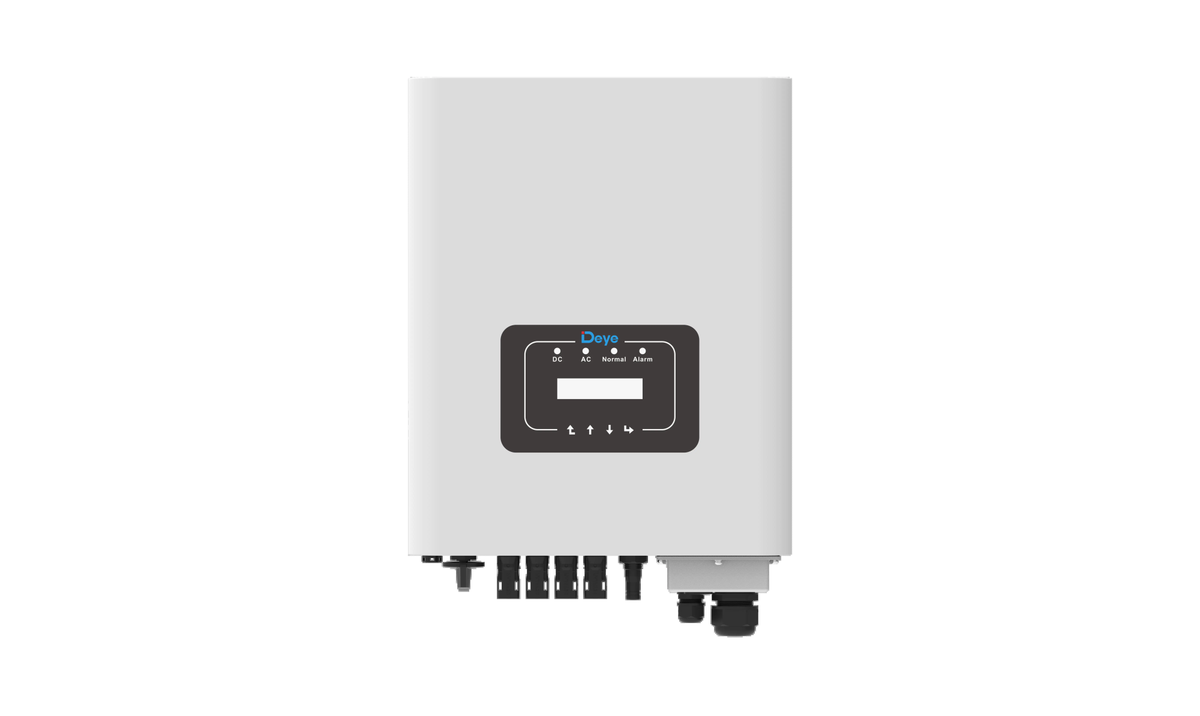

- LCD1602 display with DC / AC / Normal / Alarm status indicators
Installation & Operating Environment

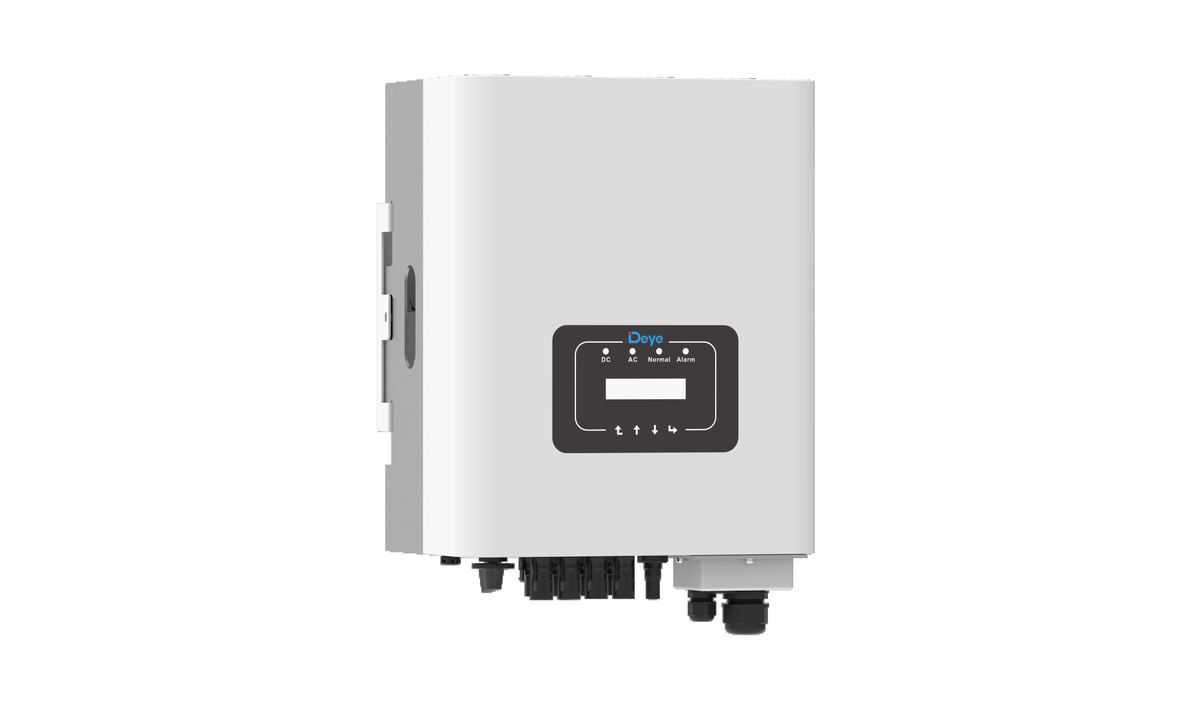

- Compact 330 × 410 × 213.5 mm cabinet, 14.8 kg, IP65 rated for outdoor installation
- Wide operating temperature range of -25°C to +60°C; altitude up to 3000 m
- Certified to AS/NZS 4777.2, IEC/EN 62109-1/-2 and IEC/EN 61000-6-1/2/3/4 — backed by a 10-year warranty
Specifications
| Model | SUN-10K-G02P1-AU-AM2 |
|---|---|
| Type | Single Phase Grid-Connected PV String Inverter |
| Max. PV Input Power | 15kW |
| Max. PV Input Voltage | 550V |
| Start-up Voltage | 80V |
| MPPT Voltage Range | 70-500V |
| Rated PV Input Voltage | 360V |
| No. of MPP Trackers | 2 |
| No. of Strings per MPPT | 2+2 |
| Max. Operating PV Input Current | 26+26A |
| Max. Input Short Circuit Current | 39+39A |
| Rated AC Output Active Power | 9.99kW |
| Max. AC Output Apparent Power | 9.99kVA |
| Rated AC Output Current | 43.5A |
| Max. AC Output Current | 43.5A |
| Grid Connection Form | L/N/PE (Single Phase) |
| Rated Output Voltage/Range | 230V (0.85Un-1.1Un) |
| Rated Grid Frequency/Range | 50Hz (45-55Hz) |
| Total Harmonic Distortion (THDi) | <3% |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Max. Efficiency | 97.7% |
| Euro Efficiency | 97.2% |
| MPPT Efficiency | >99% |
| Inverter Topology | Non-Isolated |
| Type of Cooling | Natural Cooling |
| Noise | ≤35dB |
| Communication Interface | RS485 / RS232 / WiFi / LAN |
| Display | LCD1602 |
| Protection Features | AFCI, Anti-islanding, Residual Current Detection, DC Reverse Polarity, AC Overcurrent/Overvoltage/Short Circuit, Thermal, Insulation Impedance Detection |
| Surge Protection Level | Type II (DC), Type II (AC) |
| DC Switch | Optional |
| Ingress Protection (IP) Rating | IP65 |
| Operating Temperature Range | -25°C to +60°C |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 3000m |
| Dimensions (W×H×D) | 330×410×213.5mm |
| Weight | 14.8kg |
| Safety / Grid Standard | AS/NZS 4777.2, IEC/EN 62109-1/-2, IEC/EN 61000-6-1/2/3/4 |
| Warranty | 10-Year Product Warranty |
