Deye 3P 11kW Smart EV Charger - SUN-EVSE11K01-EU-AC
Deye 3P 11kW Smart EV Charger - SUN-EVSE11K01-EU-AC
Description
Overview

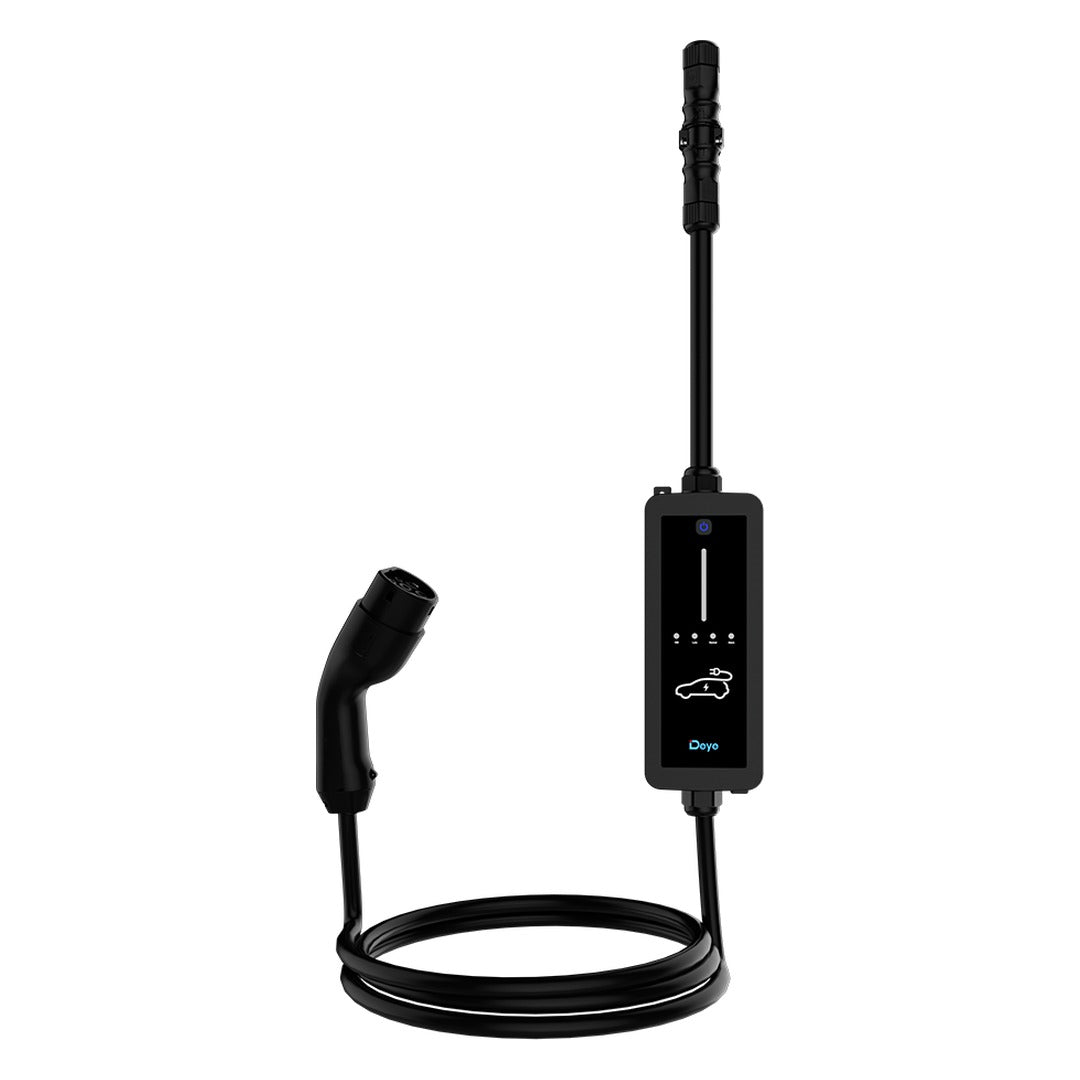

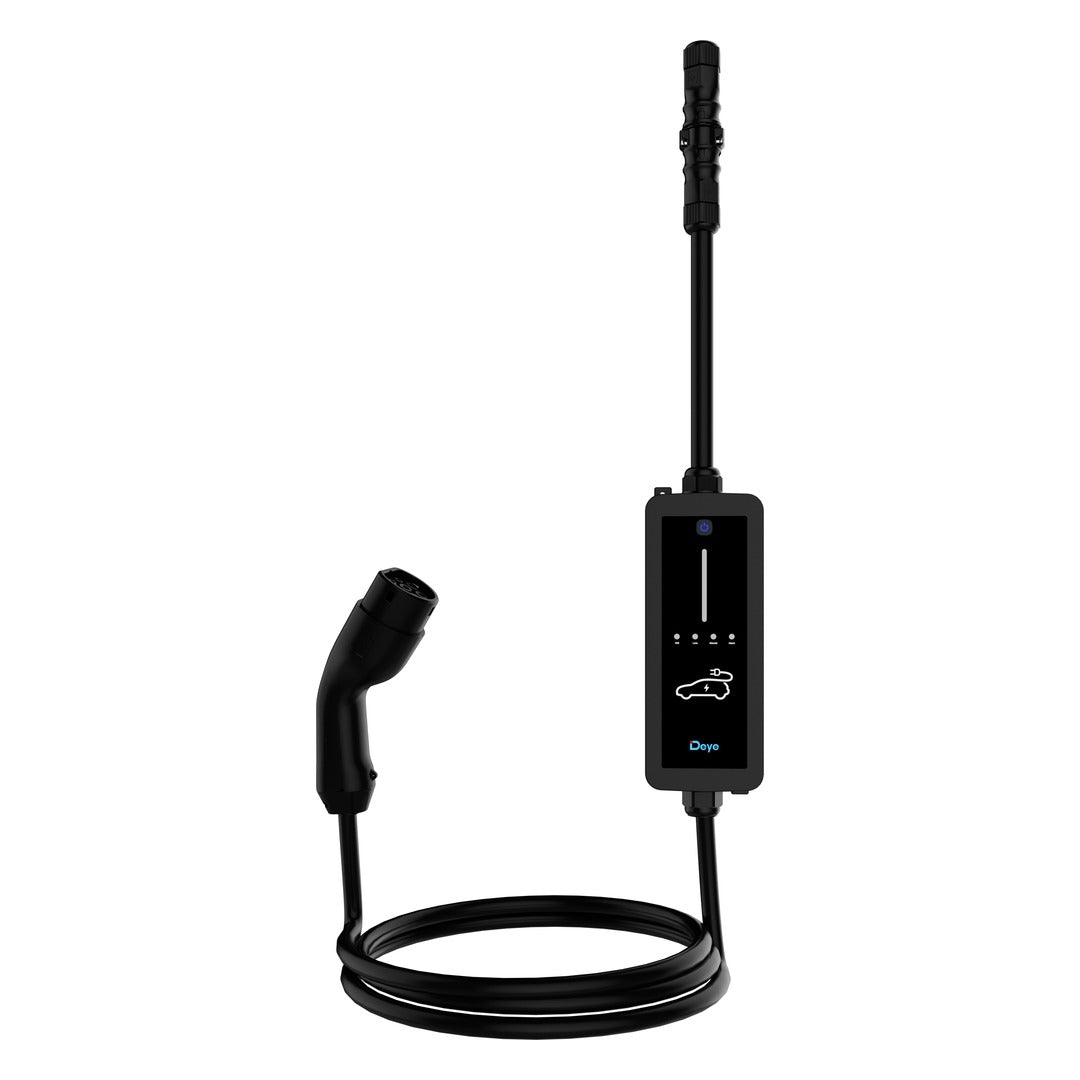

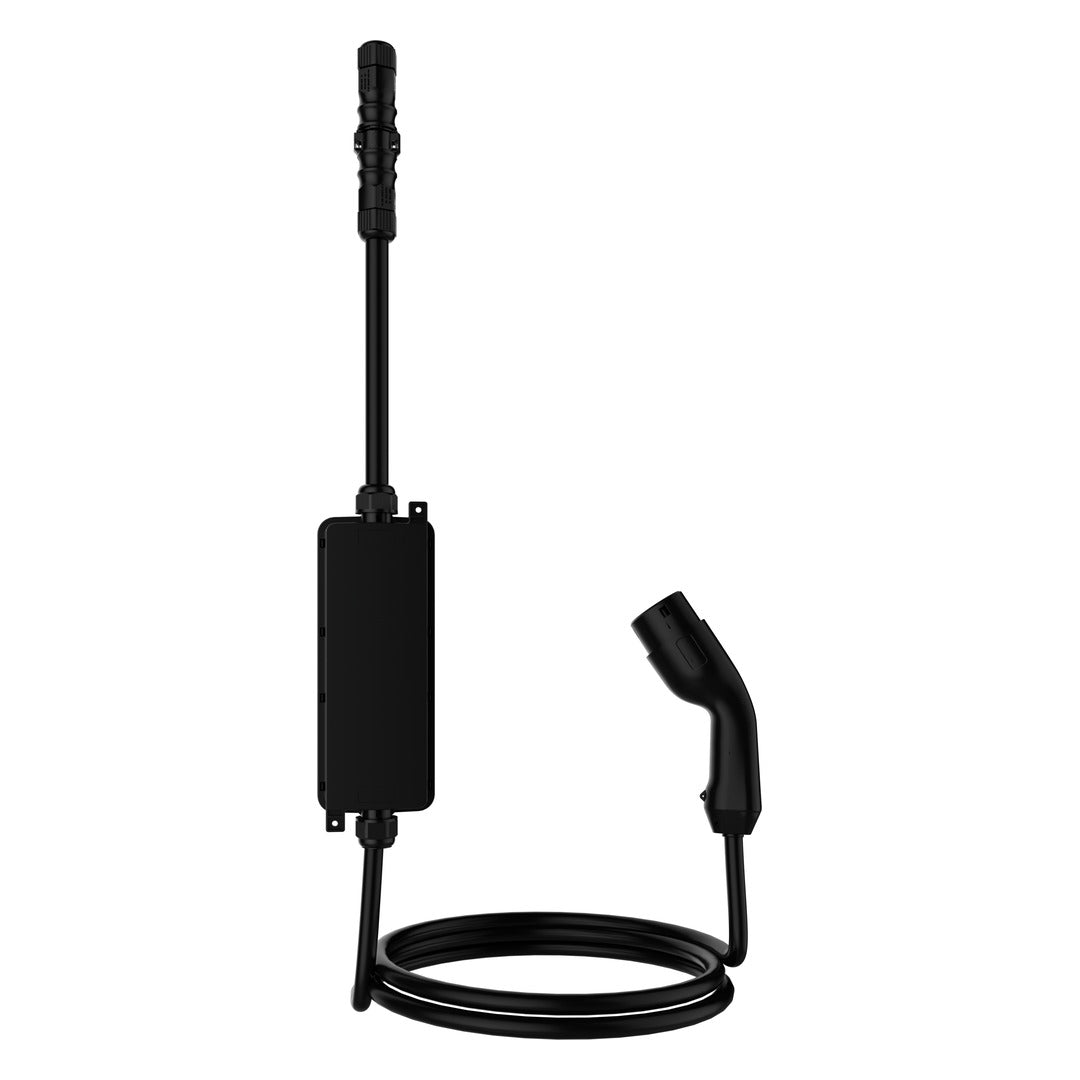

The Deye Smart EV Charger SUN-EVSE11K01-EU-AC is a three-phase 11kW (400V, 16A) smart EV charger with a Type 2 charging gun on a 4.2m cable. IP66 rated for outdoor installation and operating from -40 to +55°C, it charges from both solar PV and the grid, with plug-and-play or scheduled charging.
Connect it directly to a distribution board circuit breaker with no inverter required, or pair it with a Deye hybrid inverter for solar-only and solar-surplus charging. LoRa, Wi-Fi and Bluetooth give you control through the inverter display, Deye Cloud or a direct local connection — no network needed.
Please note: pairing with a Deye hybrid inverter over LoRa requires a Deye Smart Transmitter (SUN-SMART-TXU2) installed on the inverter and the latest inverter firmware. Not all Deye hybrid inverter models support Smart TX installation — please confirm compatibility with Deye technical support in advance.
Key Features
Power & Flexible Charging
- Three-phase 11kW maximum output power (230/400V, 16A)
- Plug-and-play or scheduled charging to suit your daily routine
- Type 2 charging gun with 4.2m cable
Integrated Solar & Energy Management
- Solar-only mode to charge your EV with solar energy*
- Solar surplus charging*
- Overload protection dynamically adjusts charging power based on household consumption
Monitoring & Control
- LoRa: pairs with Deye hybrid inverters for unified control via the inverter display or Deye Cloud (requires Smart TX)
- Wi-Fi: remote monitoring and control via Deye Cloud — no inverter required
- Bluetooth: direct local pairing for offline operation — no network connection required
- LED status indicators for charging mode, faults, LoRa and Wi-Fi
Multi-Layer Safety Protection
- Type B leakage protection with 6mA DC fault detection
- Over/under voltage, over/low temperature, short circuit, overload and earth fault protection
- Type II surge protection
Installation & System Integration
- Inverter connection: connect to a Deye hybrid inverter with no costly grid retrofit
- Grid connection: direct to a distribution board circuit breaker — no inverter required
- Three-phase connection: 3L+N+PE
- Compact 104 x 264 x 57.5mm control box, 3.7kg
Operating Environment
- IP66 rated for outdoor use
- Operating range -40 to +55°C, 5–95% humidity (non-condensing), up to 3000m altitude
- Quiet operation (<25dB) and 5-year warranty
*Only available when used with a Deye hybrid inverter and compatible batteries.
Specifications
| Model | SUN-EVSE11K01-EU-AC |
|---|---|
| Input Voltage/Range (V) | 230/400 |
| Connection Mode | 3L+N+PE |
| Input Current (A) | 16 |
| Input Frequency/Range | 50Hz (45Hz-55Hz)/60Hz (55Hz-65Hz) |
| Maximum Output Power (kW) | 11 |
| Starting Method | Plug and Play / Scheduled Charging |
| Over Temperature Protection | Yes |
| Low Temperature Protection | Yes |
| Over Voltage Protection | Yes |
| Under Voltage Protection | Yes |
| Short Circuit Protection | Yes |
| Over Load Protection | Yes |
| Earth Fault Protection | Yes |
| Leakage Current Protection | DC 6mA |
| Surge Protection Level | TYPE II |
| Operating Temperature Range (°C) | -40 to +55°C |
| Permissible Ambient Humidity | 5%~95% No condensation |
| Permissible Altitude (m) | ≤3000 |
| Noise (dB) | <25 |
| Ingress Protection (IP) Rating | IP 66 |
| Cabinet Size (WxHxD mm) | 104x264x57.5 |
| Weight (kg) | 3.7 |
| Gun Cable Length (m) | 4.2 |
| Number of Charging Guns | 1 |
| MTBF | 100,000h |
| Safety EMC/Standard | EN IEC 61851-1:2019, IEC 61851-1:2017, EN 300 220-2 V3.1.1:2017, EN 300 328 V2.2.2:2019, EN IEC 62311:2020, EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.3.2:2023, EN 301 489-17 V3.3.1:2024, EN IEC 61000-6-1:2019, EN IEC 61000-6-3:2021, EN IEC 61851-21-2:2021 |
| Communication Mode | LoRa/Wi-Fi/BLE |
| Warranty | 5 years |
