Deye 3P 22kW / 1Ph 7kW Smart EV Charger - SUN-EVSE22K01-EU-AC

Overview

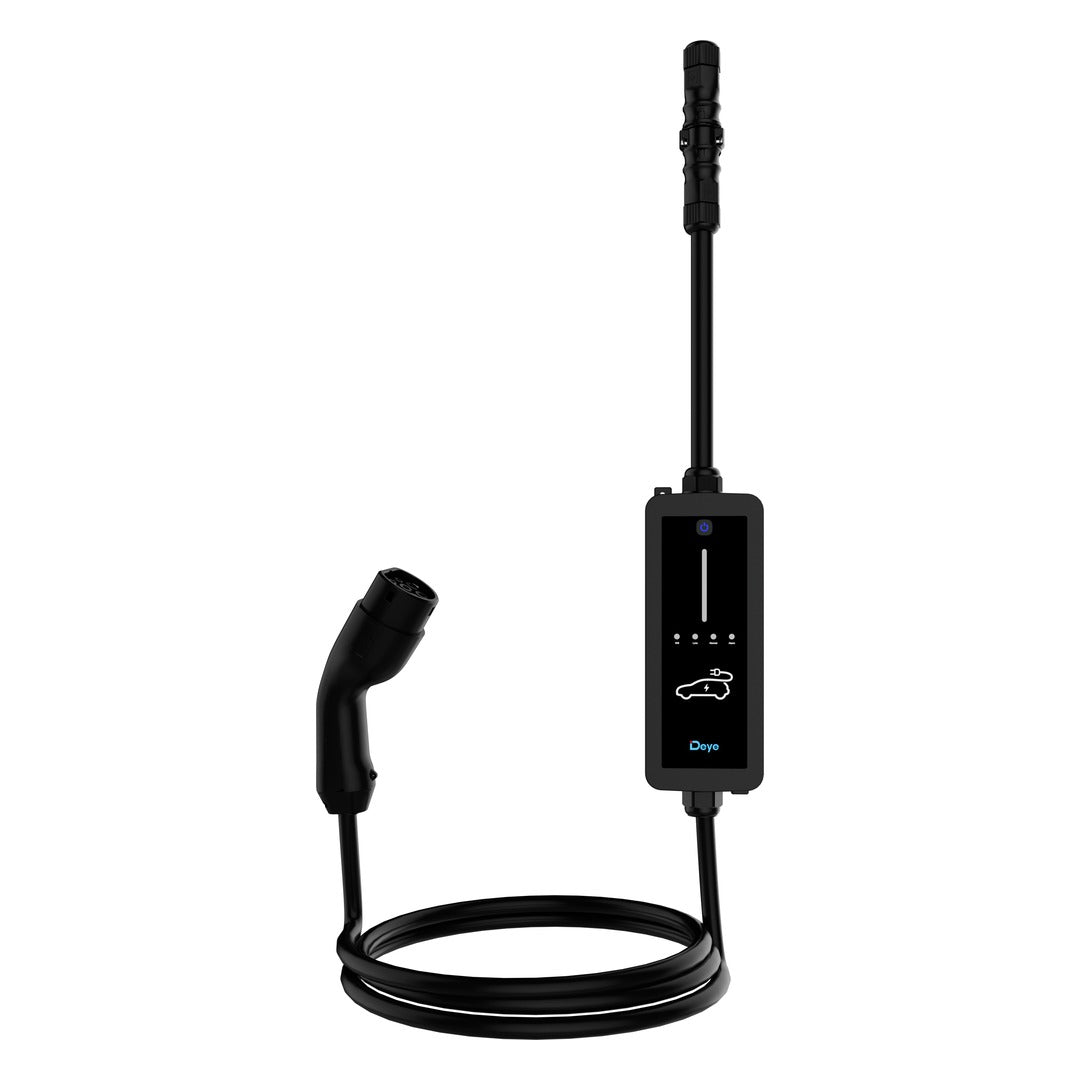

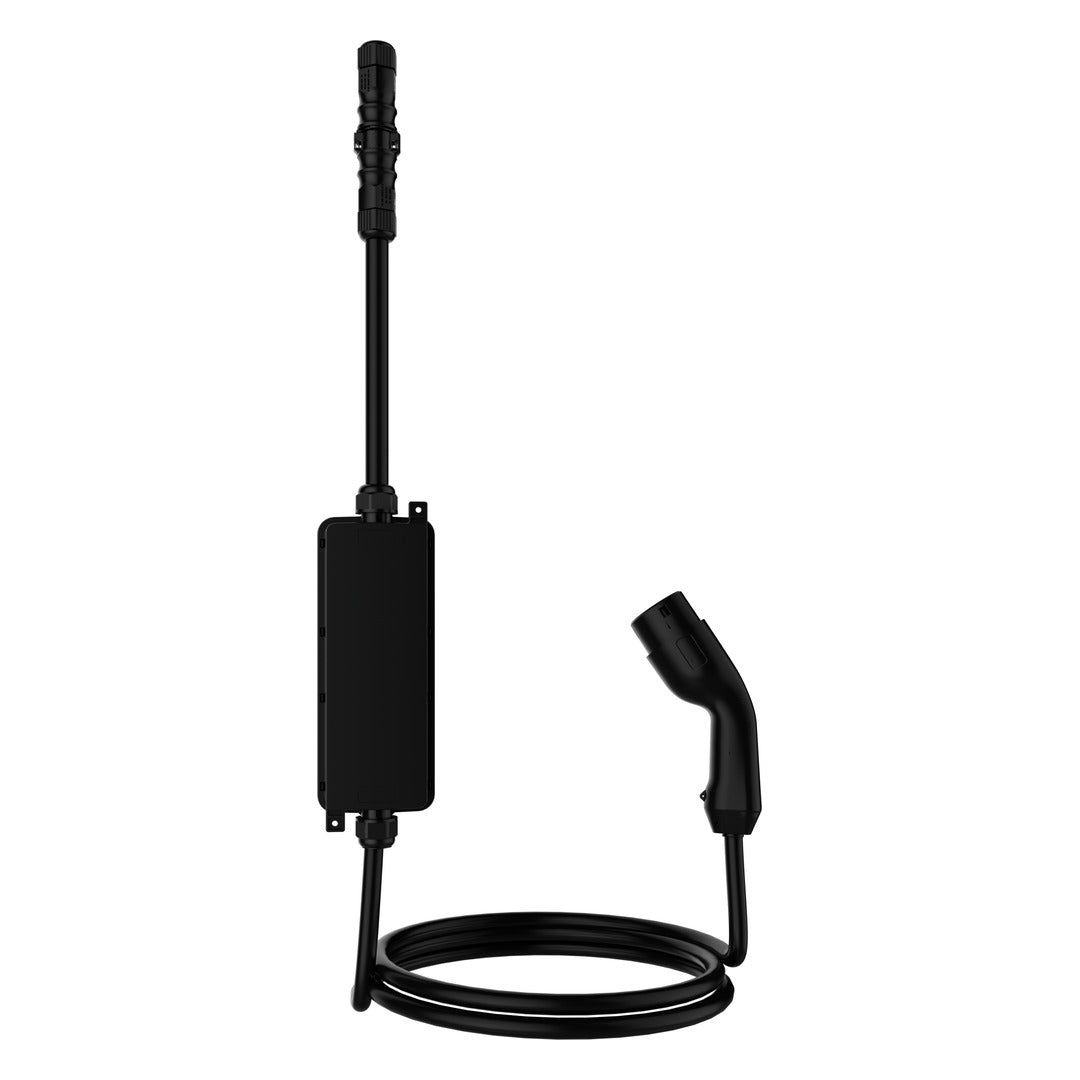

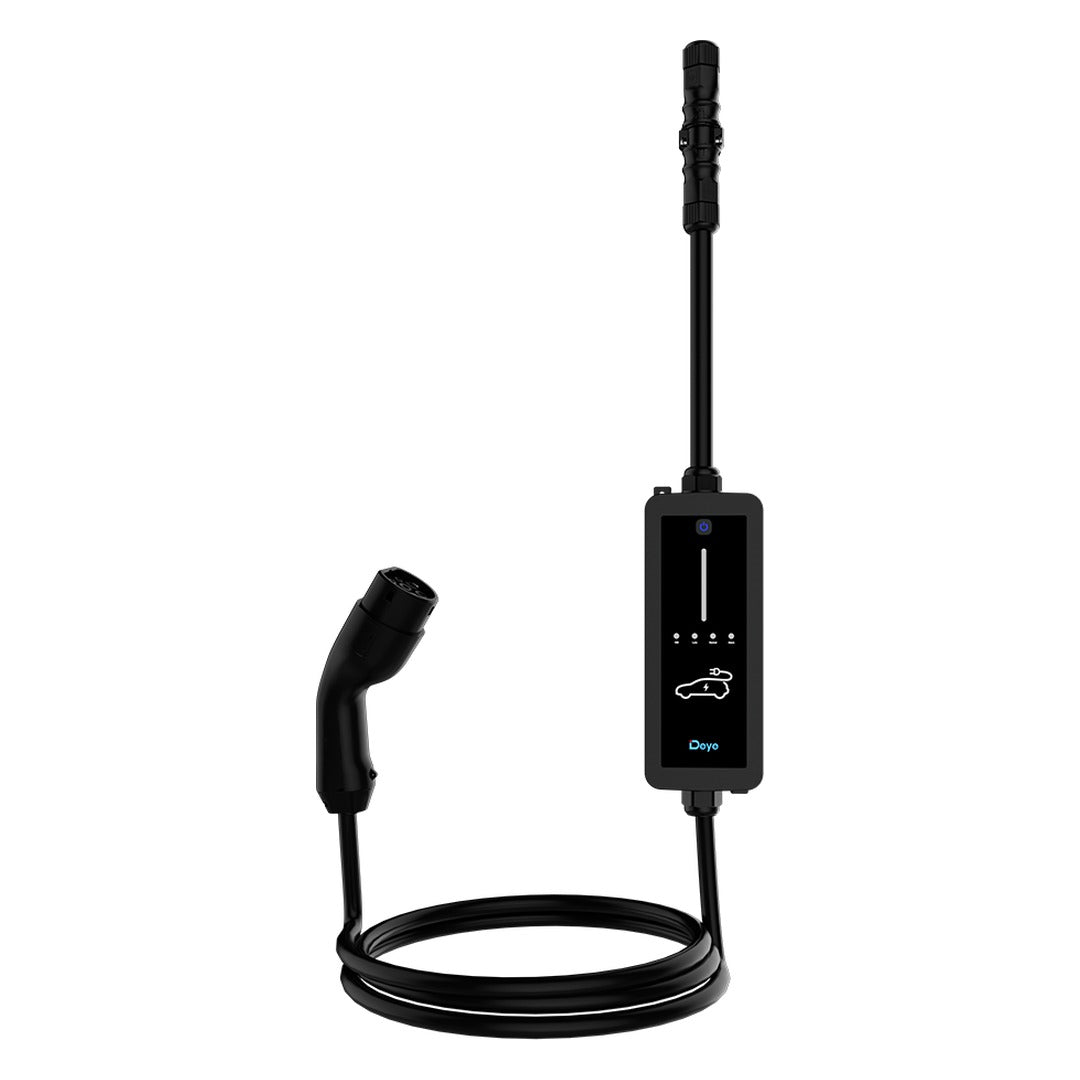

The Deye Smart EV Charger SUN-EVSE22K01-EU-AC is a smart EV charger delivering up to 22kW on three-phase (400V, 32A) or 7kW on single-phase (230V, 32A) with a Type 2 charging gun on a 4.2m cable. IP66 rated for outdoor installation and operating from -40 to +55°C, it charges from both solar PV and the grid, with plug-and-play or scheduled charging.

Connect it directly to a distribution board circuit breaker with no inverter required, or pair it with a Deye hybrid inverter for solar-only and solar-surplus charging. LoRa, Wi-Fi and Bluetooth give you control through the inverter display, Deye Cloud or a direct local connection — no network needed.

Please note: pairing with a Deye hybrid inverter over LoRa requires a Deye Smart Transmitter (SUN-SMART-TXU2) installed on the inverter and the latest inverter firmware. Not all Deye hybrid inverter models support Smart TX installation — please confirm compatibility with Deye technical support in advance.

Key Features

Power & Flexible Charging

• Three-phase 22kW maximum output power (230/400V, 32A)
• Single-phase 7kW maximum output power (230V, 32A)
• Plug-and-play or scheduled charging to suit your daily routine
• Type 2 charging gun with 4.2m cable

Integrated Solar & Energy Management

• Solar-only mode to charge your EV with solar energy*
• Solar surplus charging*
• Overload protection dynamically adjusts charging power based on household consumption

Monitoring & Control

• LoRa: pairs with Deye hybrid inverters for unified control via the inverter display or Deye Cloud (requires Smart TX)
• Wi-Fi: remote monitoring and control via Deye Cloud — no inverter required
• Bluetooth: direct local pairing for offline operation — no network connection required
• LED status indicators for charging mode, faults, LoRa and Wi-Fi

Multi-Layer Safety Protection

• Type B leakage protection with 6mA DC fault detection
• Over/under voltage, over/low temperature, short circuit, overload and earth fault protection
• Type II surge protection

Installation & System Integration

• Inverter connection: connect to a Deye hybrid inverter with no costly grid retrofit
• Grid connection: direct to a distribution board circuit breaker — no inverter required
• Single-phase (L+N+PE) or three-phase (3L+N+PE) connection
• Compact 104 x 264 x 57.5mm control box, 3.7kg

Operating Environment

• IP66 rated for outdoor use
• Operating range -40 to +55°C, 5–95% humidity (non-condensing), up to 3000m altitude
• Quiet operation (<25dB) and 5-year warranty

*Only available when used with a Deye hybrid inverter and compatible batteries.
