Deye HV 80kW Three Phase Hybrid Inverter - SUN-80K-SG02HP3-AU-EM6

Overview

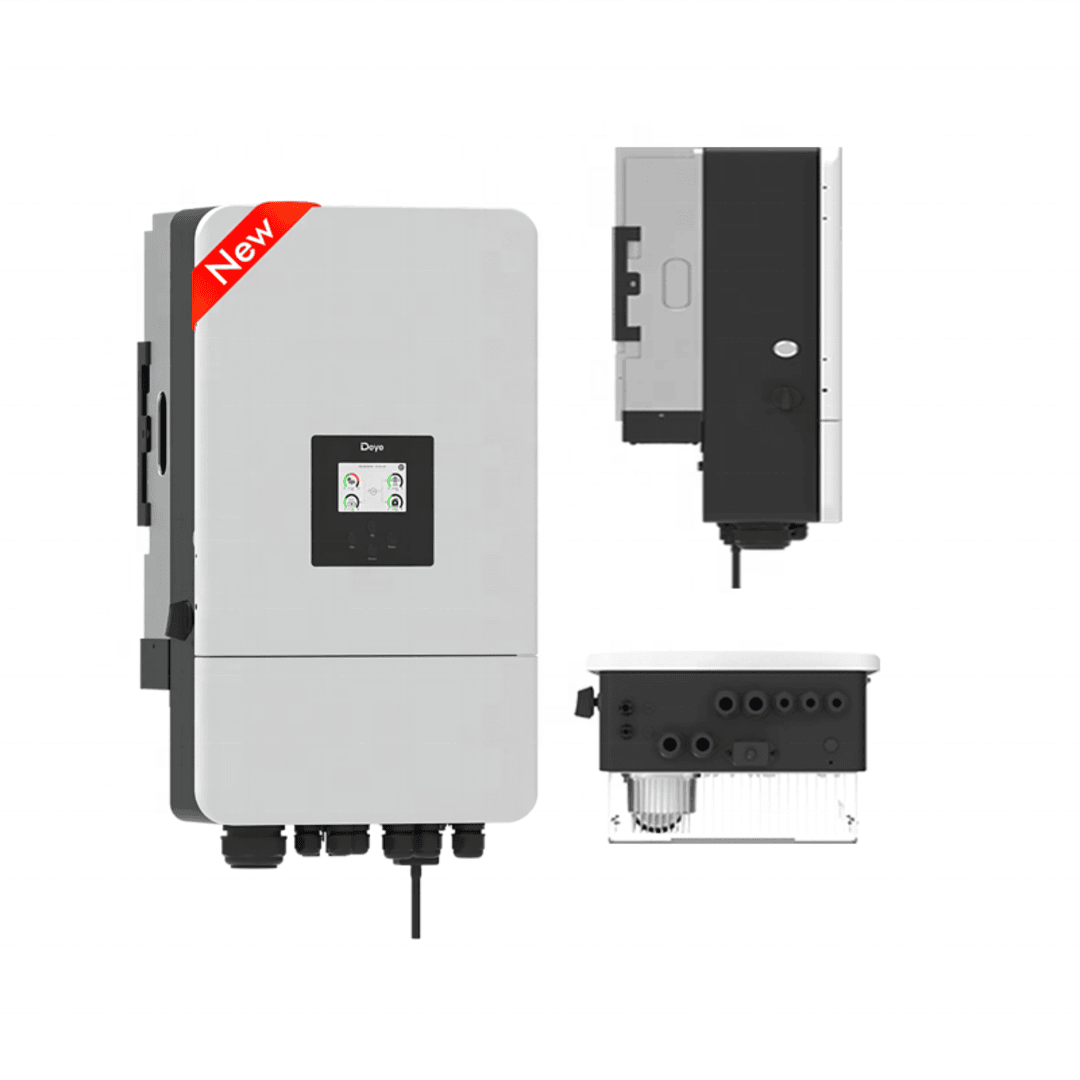

The SUN-60/70/75/80K-SG02HP3-AU-EM6 is a high-capacity three-phase hybrid inverter designed for commercial and industrial energy storage applications. With power ratings from 60kW to 80kW, this inverter delivers advanced hybrid functionality, high efficiency, and exceptional flexibility for both new installations and retrofit projects.

Featuring high-voltage battery support, six independent MPPTs, and full unbalanced output capability, this inverter is engineered to maximise solar yields while ensuring stable and reliable operation. It supports AC coupling, diesel generator integration, and scalable parallel configurations for demanding energy environments.

Key Features

High-Power Hybrid Performance

• Available in 60kW, 70kW, 75kW, and 80kW models
• Three-phase hybrid inverter for large-scale energy systems
• High-voltage battery compatibility for increased efficiency

Advanced Solar Input & MPPT Design

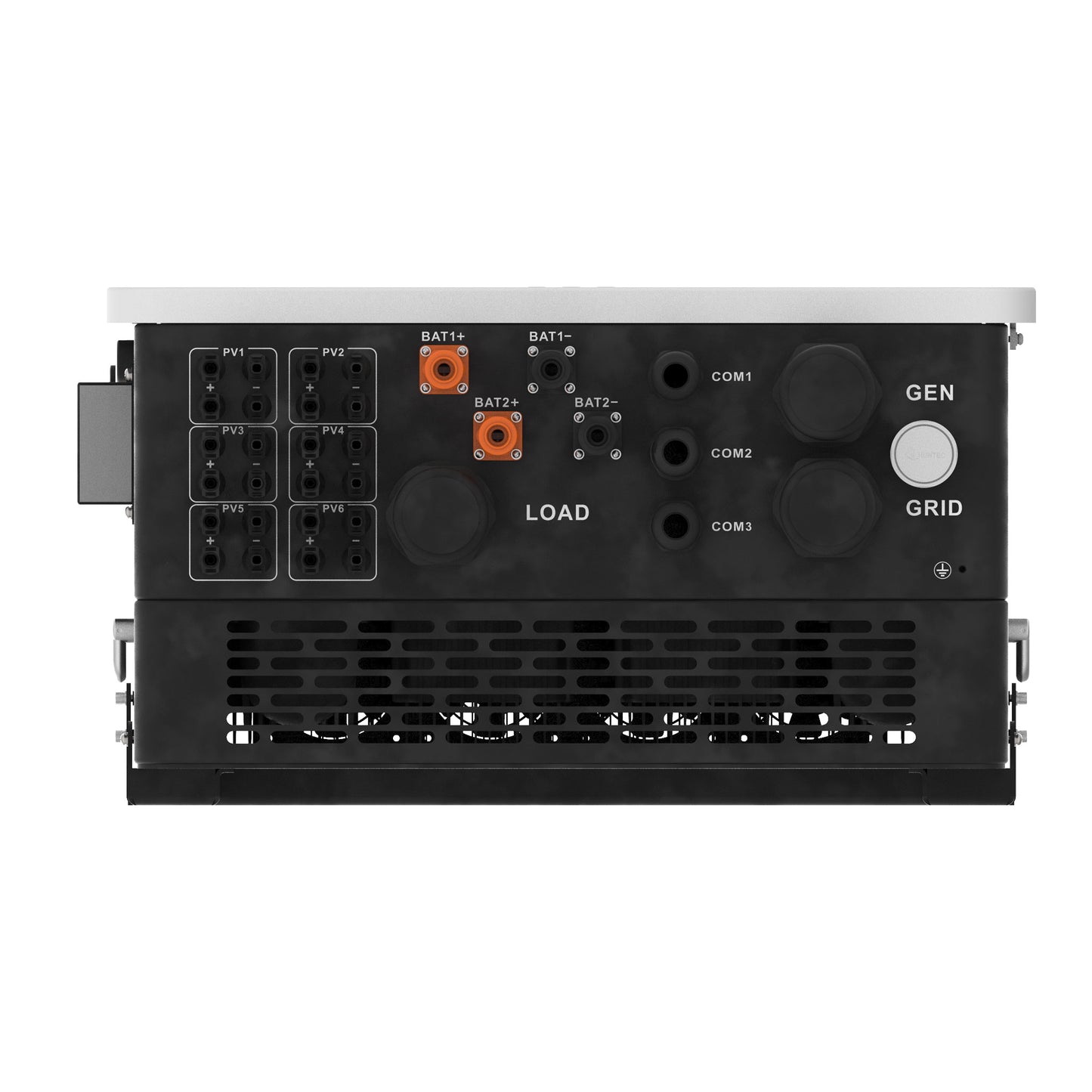

• 6 independent MPPT trackers for flexible PV array layouts
• Optimised energy harvest across multiple orientations and string lengths
• Ideal for complex commercial rooftop or ground-mount systems

Flexible System Integration

• AC-coupling support for retrofitting existing solar systems
• Supports diesel generator energy storage and load support
• Compatible with multiple batteries connected in parallel

Scalable & Parallel Operation

• Up to 10 inverters can be connected in parallel
• Supports both on-grid and off-grid system configurations
• Maximum battery charging/discharging current of 160A

Smart Energy Management

• 6 programmable time periods for battery charging and discharging
• Optimised self-consumption and peak-shaving control
• User-friendly interface with intelligent monitoring features
