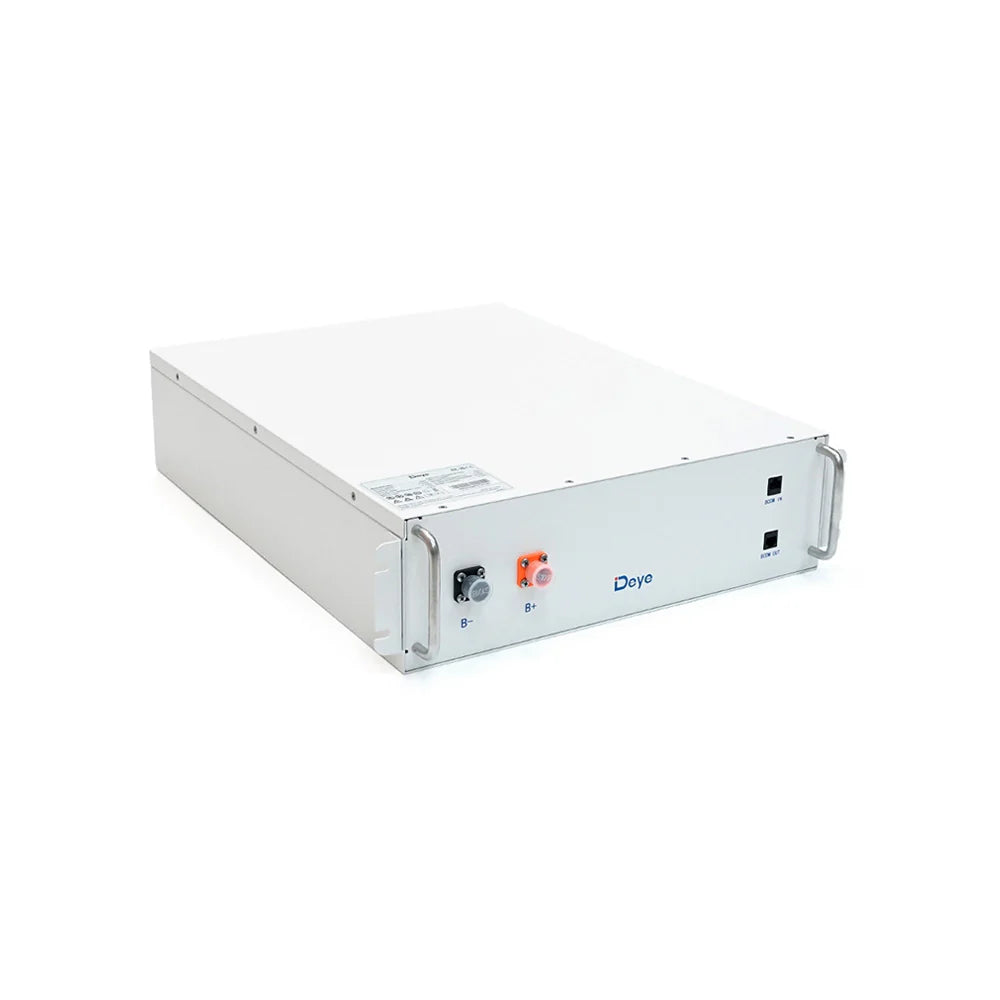

Deye BOS-G [PRO] HV LFP 51.2V 5.12kWh LiFePO4 Rackmount Battery - BOS-GM5.1

Deye BOS-G [PRO] HV LFP 51.2V 5.12kWh LiFePO4 Rackmount Battery - BOS-GM5.1

Please sign in to see pricing
View full details
  • Description

Description

Quick Feature Highlights

  • 5.12 kWh LiFePO4 module – high-voltage battery module for Deye BOS-G Pro rack-mounted energy storage systems
  • Scalable BOS-G Pro platform – supports modular system configurations from 25.6 kWh to 87.04 kWh
  • 100 Ah battery capacity – 51.2 Vdc module design for high-voltage storage applications
  • Intelligent BMS protection – helps manage over-discharge, over-charge, over-current and temperature protection
  • Rack-mounted installation – standard 19-inch embedded module design supports installation and maintenance access
  • 10 year warranty – backed by Deye warranty support for long-term system confidence

Overview

The Deye BOS-G PRO Pack5.1 is a high-voltage LiFePO4 battery module designed for Deye BOS-G Pro rack-mounted energy storage systems. It combines 5.12 kWh rated energy with modular high-voltage battery architecture, supporting commercial and small-scale C&I energy storage applications.

By using a scalable rack-mounted module format, the BOS-G PRO Pack5.1 helps streamline system configuration and enhances installation flexibility for Deye BOS-G Pro battery systems.

Key Features

Modular & Scalable Storage

  • 5.12 kWh rated energy per BOS-G-Pack5.1 battery module.
  • BOS-G Pro system configurations use 5 to 17 BOS-G-Pack5.1 modules depending on the selected system size.
  • Supports system energy configurations from 25.6 kWh through to 87.04 kWh.

Battery & System Performance

  • LiFePO4 battery chemistry with 51.2 Vdc nominal module voltage.
  • 100 Ah rated capacity with 100 A nominal charge/discharge current.
  • 120 A peak discharge current for the battery module.

Installer-Friendly Rack Design

  • Rack-mounted high-voltage battery module for BOS-G Pro systems.
  • Compact 440 × 585 × 133 mm module dimensions with approximate 46 kg weight.
  • CAN2.0 / RS485 communication supported at system level for battery system integration.

Approvals & Compliance

  • BOS-G Pro series certification list includes UN38.3, CE, CE-EMC, IEC62040, CEC and VDE.
  • IP20 enclosure rating and indoor rack-mounted installation suitability are listed in the manufacturer documentation.

Warranty & Support

  • Backed by Deye 10 year warranty and manufacturer support network.
