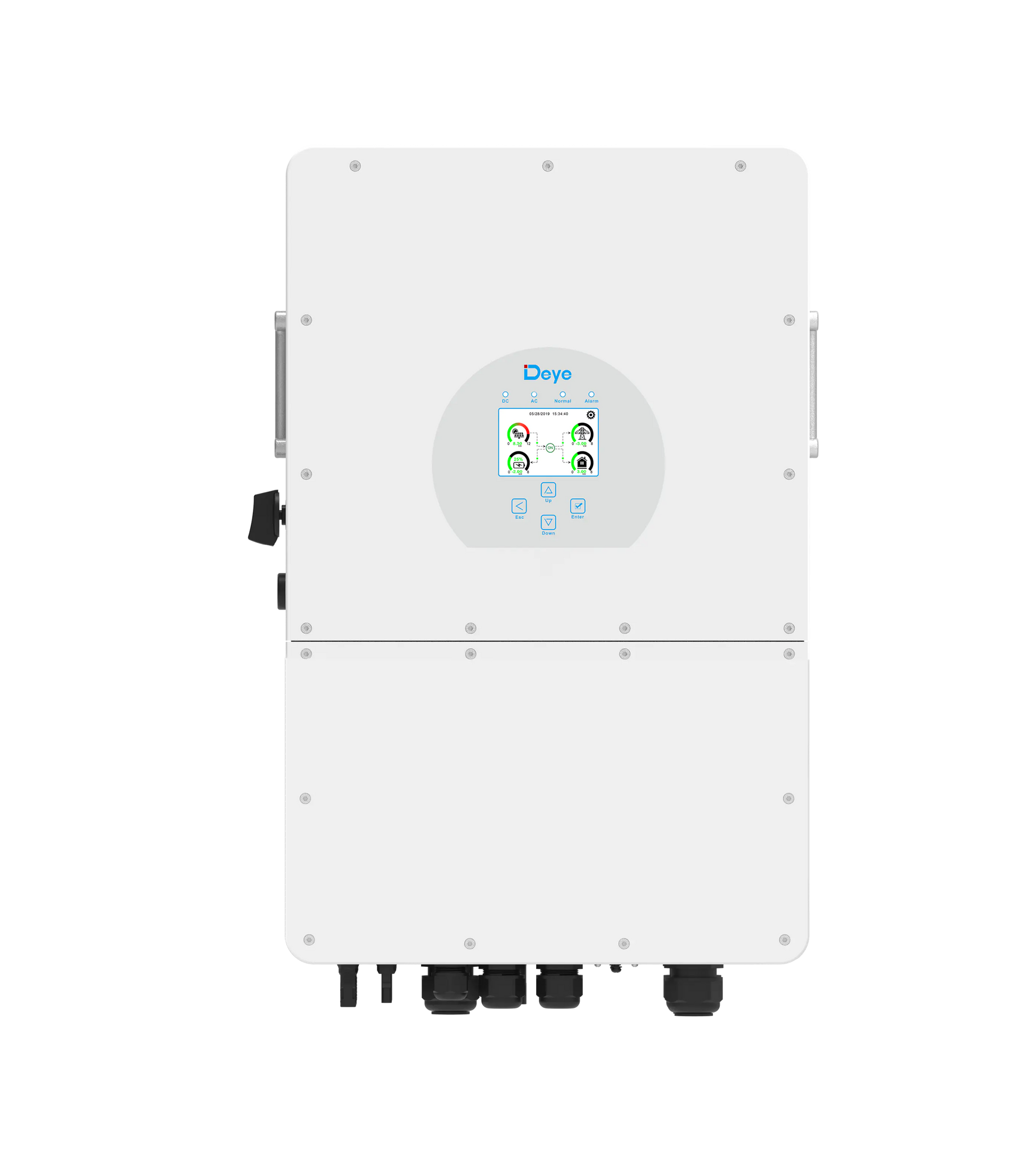

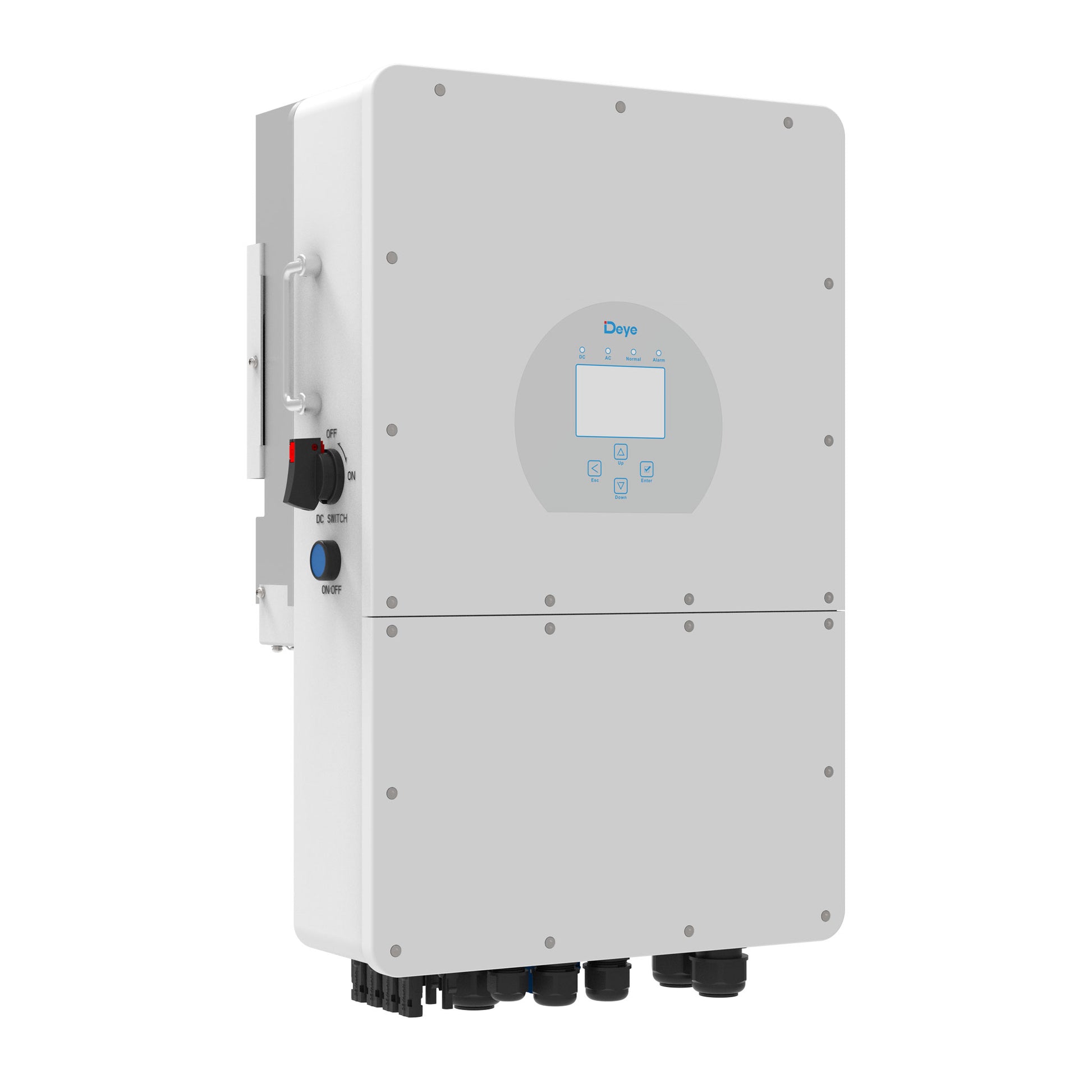

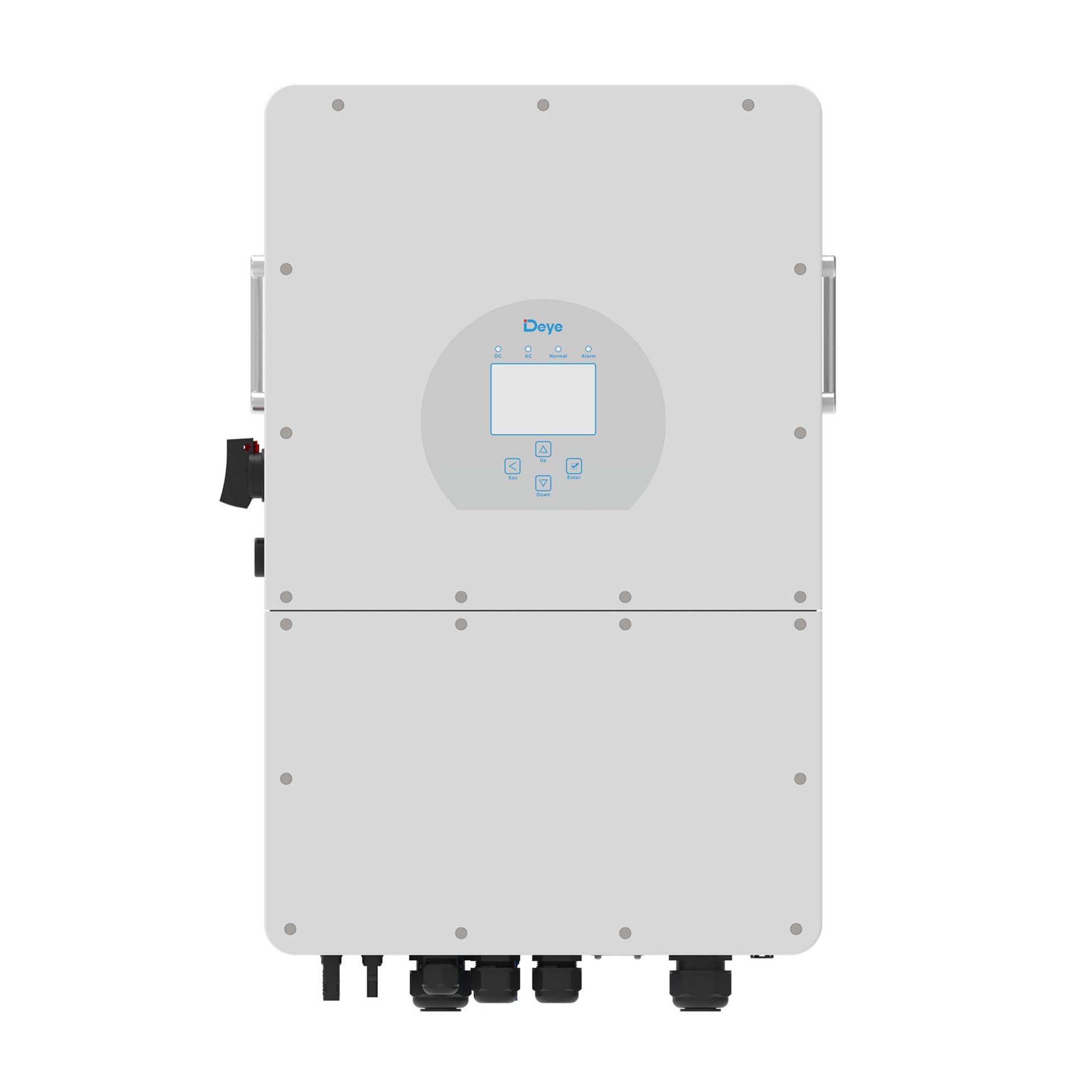

Deye HV 12kW Three Phase Hybrid Inverter - SUN-12K-SG01HP3-AU-AM2

Overview

The DEYE SUN-12K-SG01HP3-AU-AM2 is a 12 kW three-phase high-voltage hybrid inverter engineered for residential and light commercial solar installations in Australia. It delivers efficient DC-to-AC power conversion while enabling seamless integration with high-voltage lithium battery storage systems.

Supporting both on-grid and off-grid operation, this inverter features dual MPPT inputs, a wide PV voltage range, and robust thermal management, making it well suited to larger three-phase homes and small commercial sites seeking reliable, future-ready energy control.

Key Features

Hybrid Energy Management

• Hybrid inverter supporting solar PV, battery storage, and grid interaction
• Three-phase output for residential and light commercial applications
• Supports both grid-connected and off-grid system configurations

High-Voltage Battery Compatibility

• Battery voltage range: 160–700 V
• Compatible with high-voltage lithium-ion battery systems
• Maximum charging/discharging current: 50 A

Optimised Solar Performance

• 2 MPPT channels for flexible PV array design
• Maximum DC input power: 17,400 W
• MPPT voltage range: 200–850 V
• Maximum operating PV input voltage: 850 V
• MPPT efficiency: 99.9%

High Efficiency Power Conversion

• Rated AC output active power: 12,000 W
• Maximum efficiency: 97.6% (Euro efficiency: 97.0%)

Durable & Outdoor Rated Design

• IP65 ingress protection for indoor or outdoor installation
• Operating temperature range: -40°C to +60°C (derating above 45°C)
• Intelligent air cooling for long-term reliability
