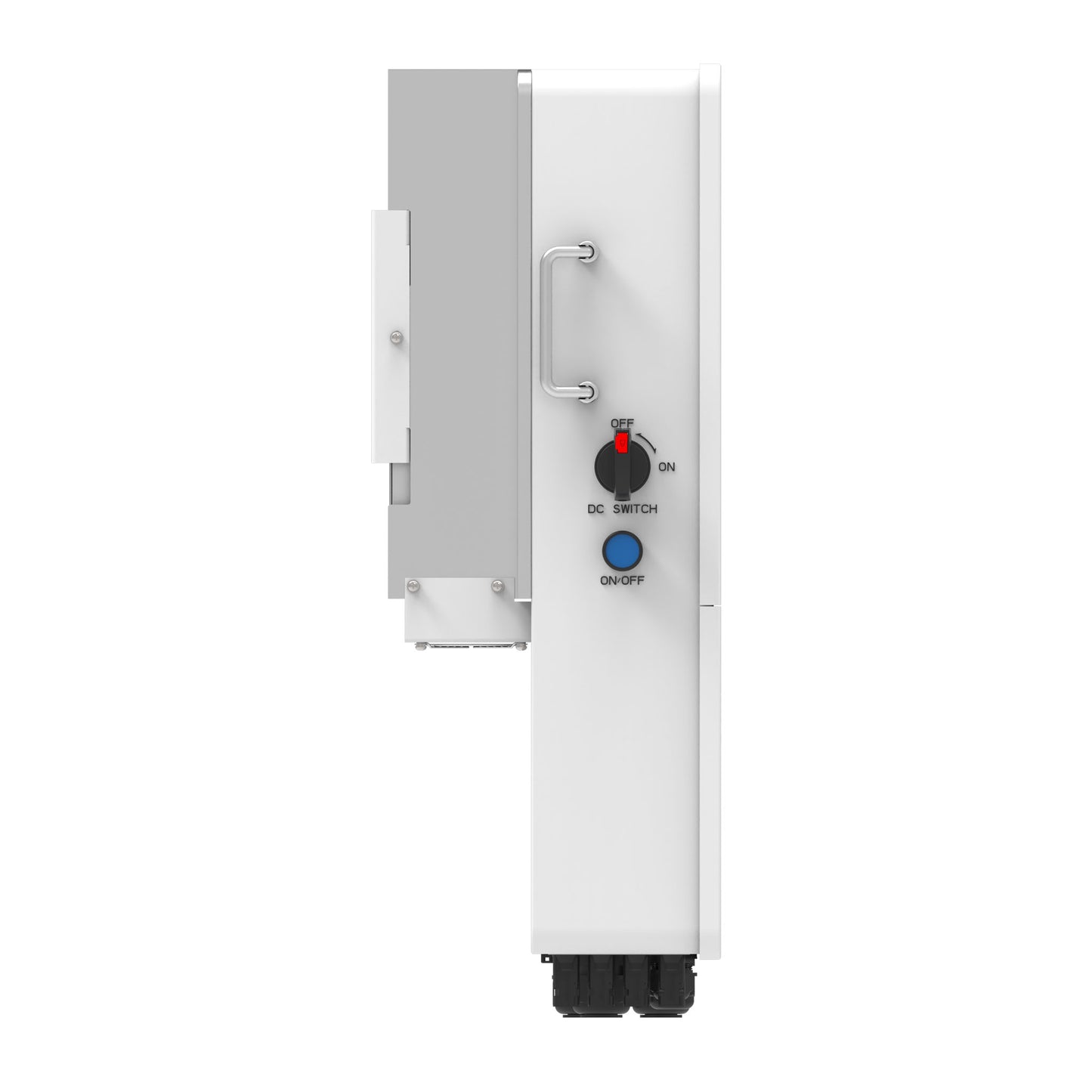

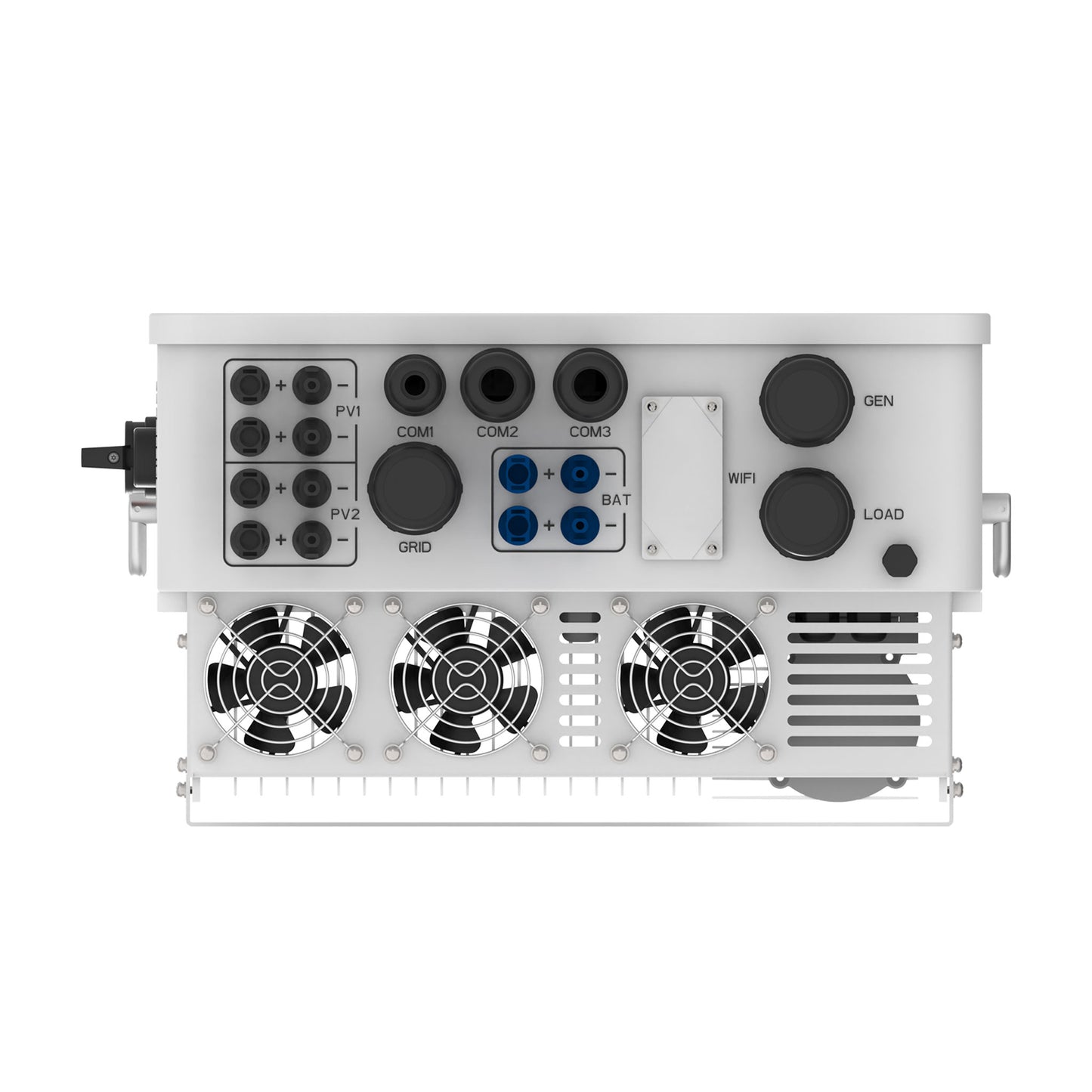

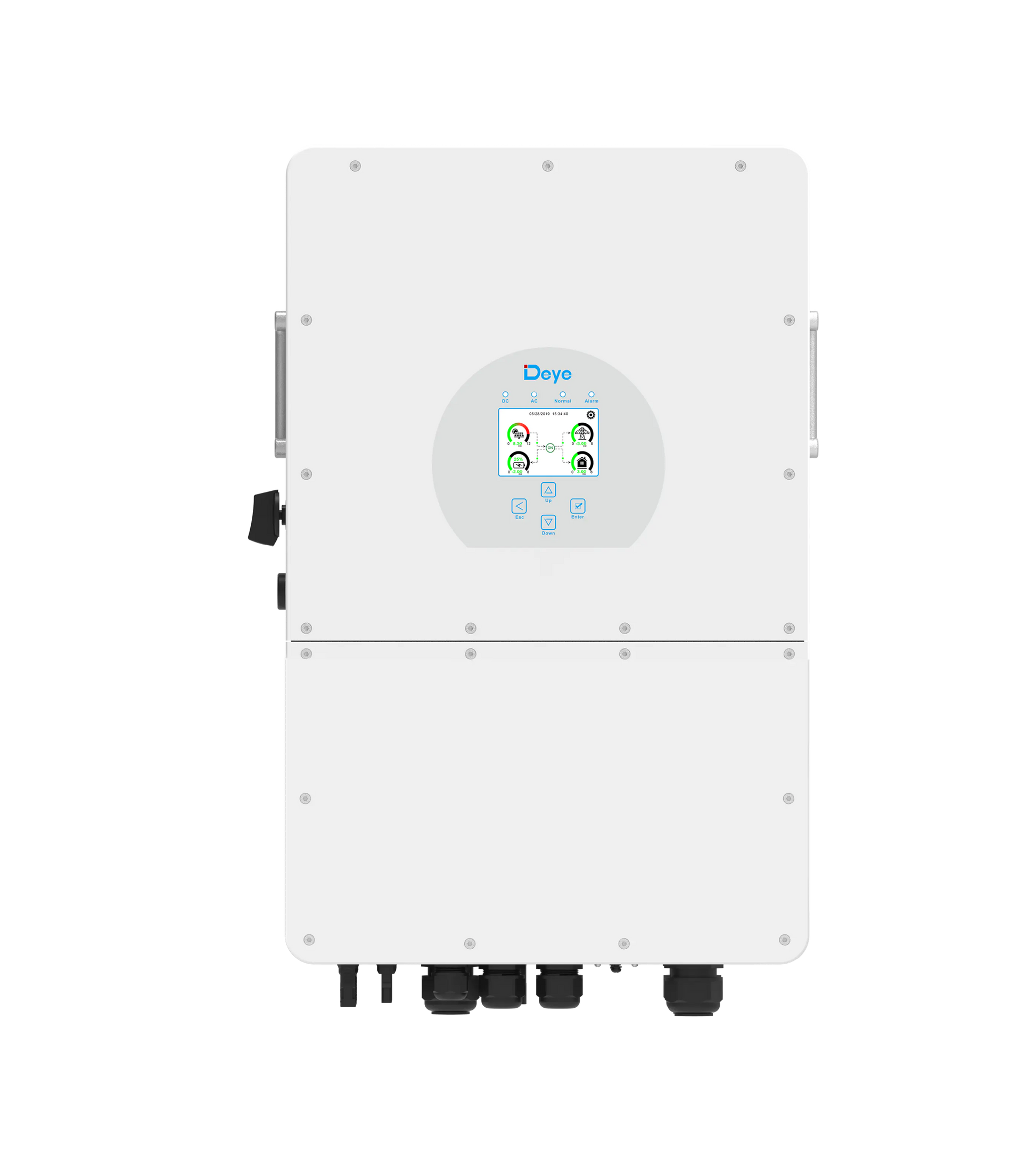

Deye HV 15kW Three Phase Hybrid Inverter - SUN-15K-SG01HP3-AU-AM2

Overview

The Deye High Voltage 15 kW Three Phase Hybrid Inverter (SUN-15K-SG01HP3-AU-AM2) is a powerful hybrid inverter designed for large residential and light commercial solar energy systems in Australia. Delivering robust three-phase output, it efficiently converts DC power from solar PV arrays into usable AC electricity while supporting advanced hybrid system configurations.

With high PV input capacity, dual MPPT channels, and support for both on-grid and off-grid operation, this inverter provides exceptional flexibility and system performance. A durable IP65-rated enclosure and smart cooling system ensure reliable operation across a wide range of environmental conditions.

Key Features

High-Capacity Three-Phase Hybrid Platform

• Three-phase hybrid inverter for high-demand residential and light commercial applications
• Supports on-grid and off-grid operating modes
• Designed for advanced energy management and system resilience

Advanced PV Input & MPPT Configuration

• Rated output power: 15,000 W
• Maximum PV input power: 22,500 W
• Maximum DC input voltage: 1,000 V
• MPPT channels: 2
• MPPT voltage range: 150 – 850 V
• Start-up voltage: 180 V
• DC/AC ratio: up to 1.3

Three-Phase Output Performance

• AC output rated current: 21.8 A per phase
• Maximum AC output current: 30 A per phase
• 100% unbalanced output capability per phase

High Efficiency & Thermal Management

• Maximum efficiency: 97.6%
• MPPT efficiency: 99.9%
• Smart cooling system for stable long-term operation
• Operating temperature range: -40°C to +60°C

Durable & Installation Ready

• IP65 ingress protection – dustproof and waterproof enclosure
• Suitable for indoor and outdoor installations
