Deye HV 25kW Three Phase Hybrid Inverter - SUN-25K-SG01HP3-AU-AM2

Overview

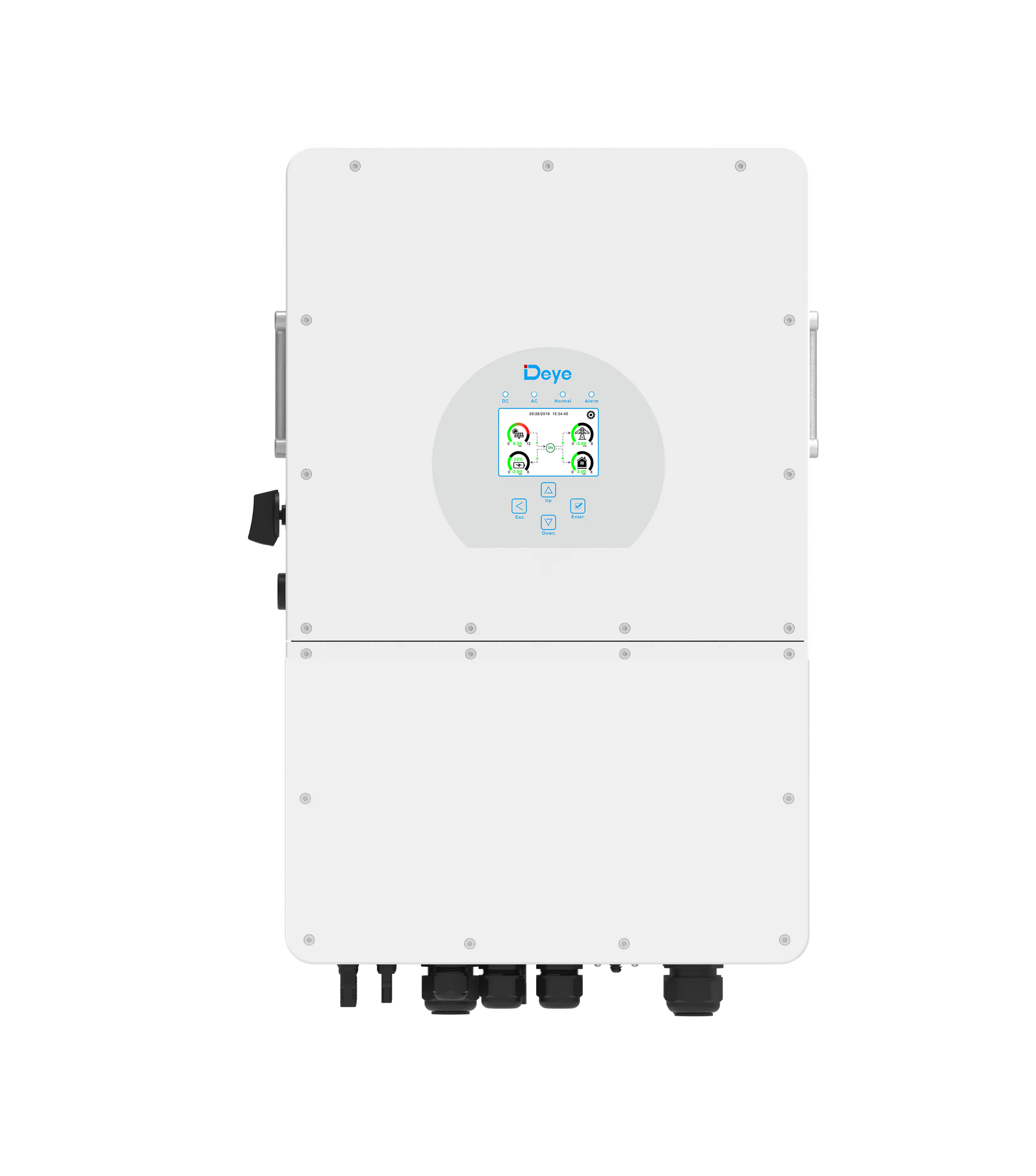

The Deye High Voltage 25 kW Three Phase Hybrid Inverter (SUN-25K-SG01HP3-AU-AM2) is a powerful hybrid inverter designed for large residential and light commercial solar energy systems in Australia. Delivering robust three-phase output, it efficiently converts DC power from large solar PV arrays into usable AC electricity while supporting advanced hybrid and energy storage configurations.

With support for high-voltage battery systems (160–700 V), high PV input capacity, and flexible system architecture, this inverter is ideal for demanding installations. A durable IP65-rated enclosure, smart cooling system, and support for both on-grid and off-grid operation ensure reliable performance across a wide range of operating conditions.

Key Features

High-Capacity Three-Phase Hybrid Platform

• Three-phase hybrid inverter for large residential and light commercial applications
• Supports on-grid and off-grid system configurations
• Designed for advanced energy management and system resilience

High-Voltage Battery Integration

• Battery voltage range: 160 – 700 V
• Maximum charging / discharging current: 50 A
• Compatible with high-voltage lithium battery systems

Advanced PV Input & MPPT Configuration

• Rated output power: 25,000 W
• Maximum PV input power: 37,500 W
• Maximum DC input voltage: 1,000 V
• MPPT channels: 2
• MPPT voltage range: 150 – 850 V
• Start-up voltage: 180 V
• DC/AC ratio: up to 1.5

Three-Phase Output Performance

• AC output rated current: 36.3 A per phase
• Maximum AC output current: 41.7 A per phase
• 100% unbalanced output capability per phase

High Efficiency & Thermal Management

• Maximum efficiency: 97.6%
• MPPT efficiency: 99.9%
• Smart cooling system for stable long-term operation
• Operating temperature range: -40°C to +60°C

Durable & Installation Ready

• IP65 ingress protection – dustproof and waterproof enclosure
• Designed for indoor and outdoor installations
