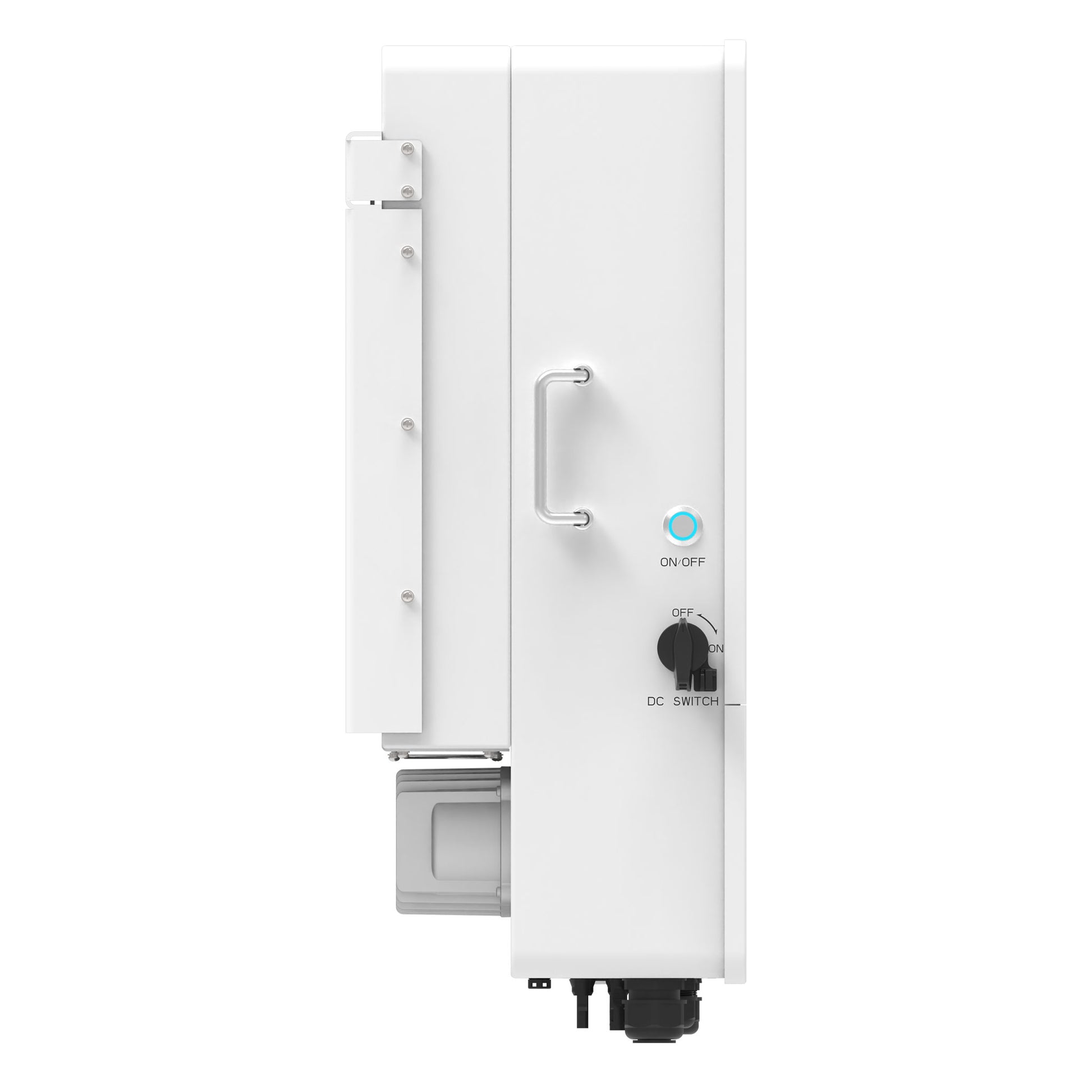

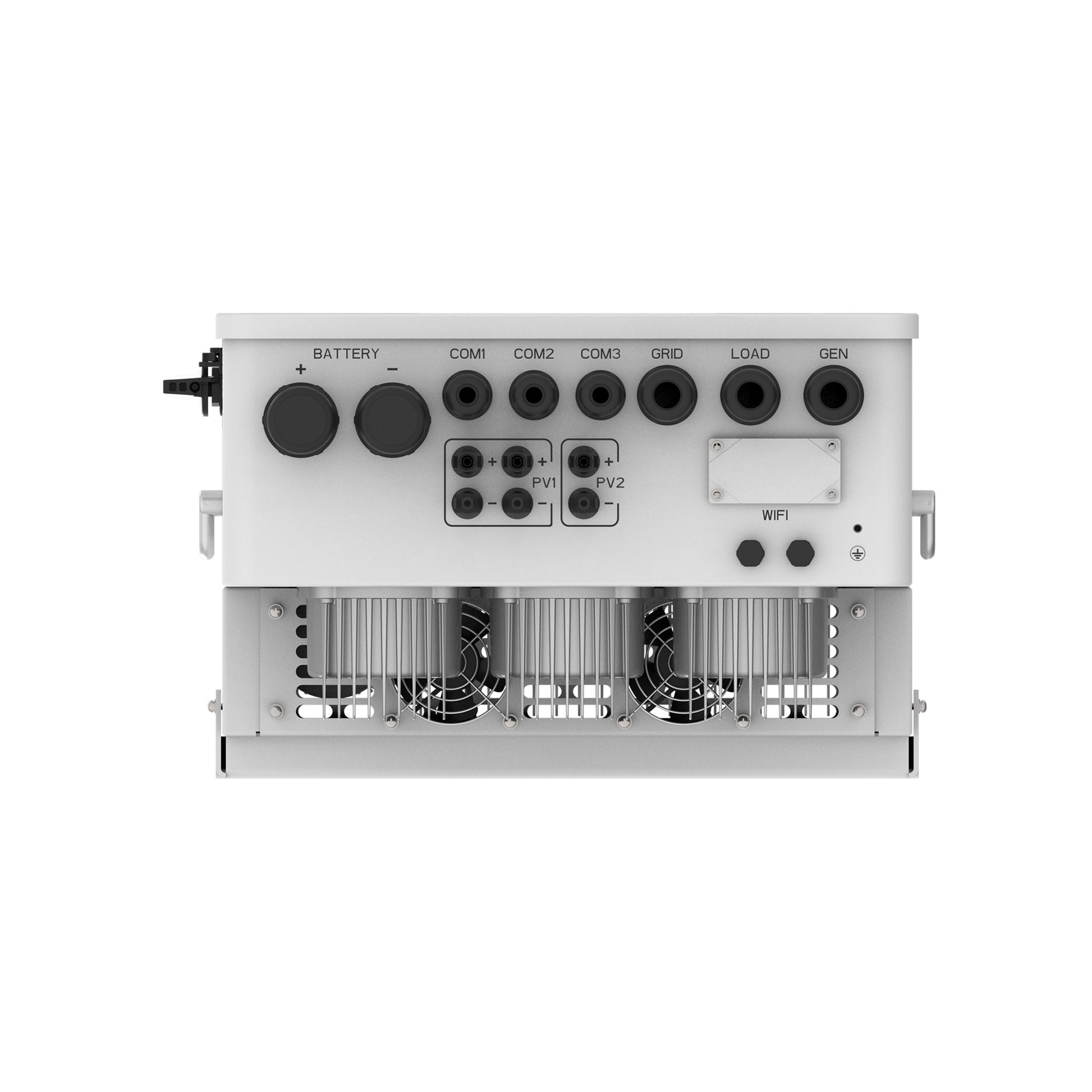

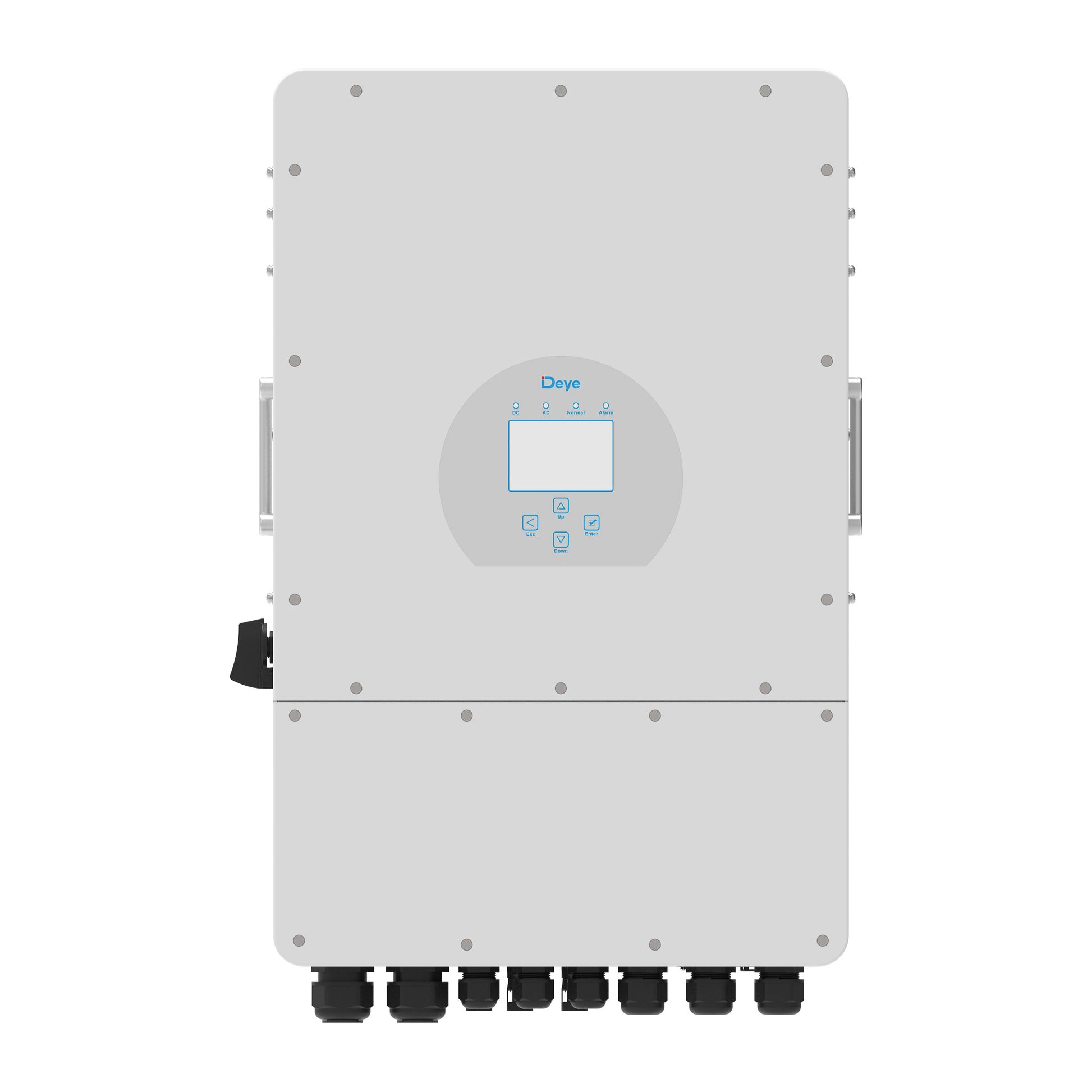

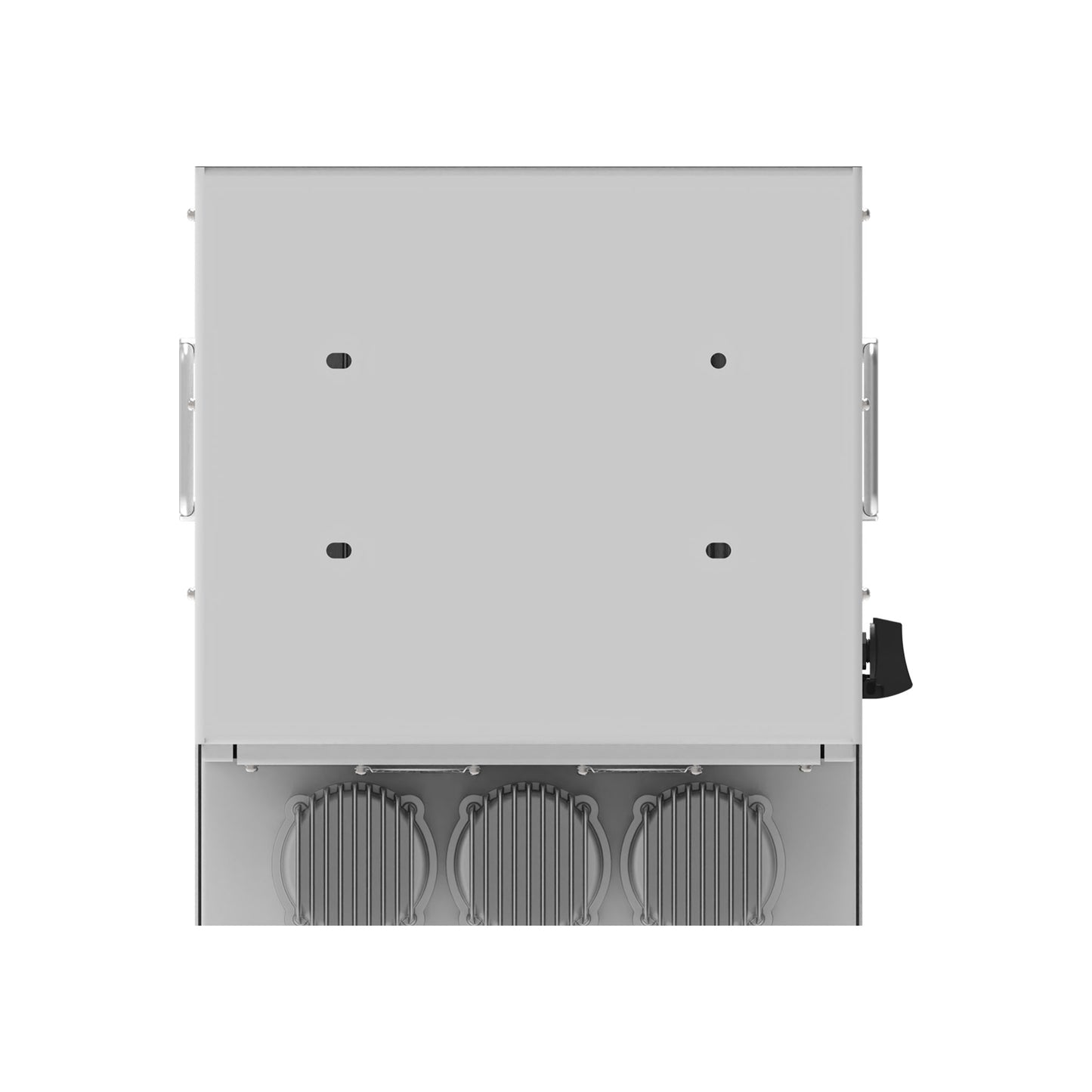

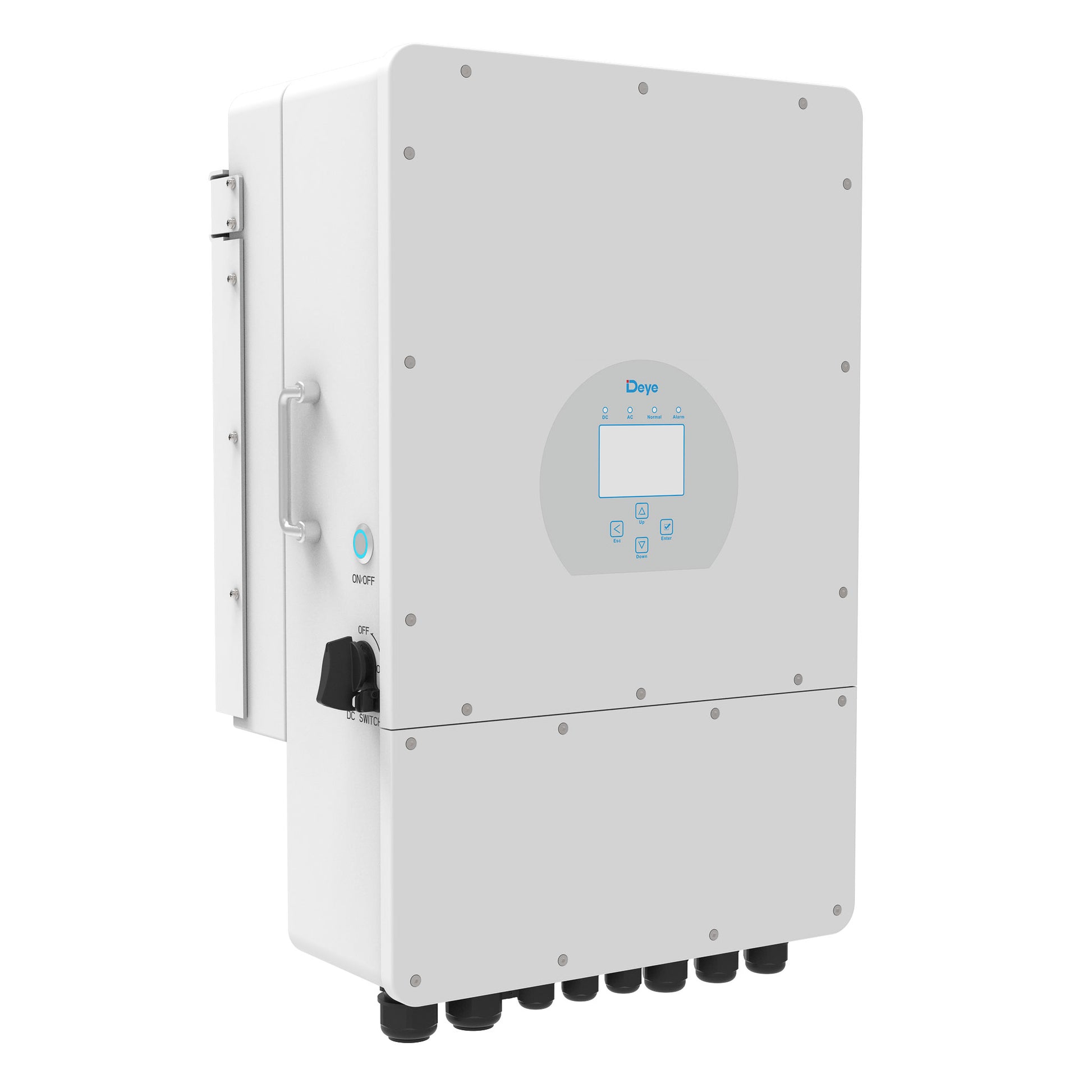

    Deye HV 40kW Three Phase Hybrid Inverter - SUN-40K-SG01HP3-AU-BM3

    Deye HV 40kW Three Phase Hybrid Inverter - SUN-40K-SG01HP3-AU-BM3

    Please sign in to see pricing
    • 40 kW three-phase hybrid inverter – high-capacity solution for large residential and commercial energy systems
    • – supports 160–800 V HV battery systems High-voltage battery compatible
    • Very high PV input capacity – supports up to 60 kW of solar input
    • Quad MPPT design – advanced PV array flexibility and optimisation
    • IP65 rated – suitable for indoor or outdoor installation
    • 10-year warranty – long-term reliability and performance assurance
    View full details
    • Description
    • Downloads

    Description

    Overview

    The Deye High Voltage 40 kW Three Phase Hybrid Inverter (SUN-40K-SG01HP3-AU-AM3) is a high-power hybrid inverter engineered for large residential, commercial, and light industrial solar energy systems in Australia. Delivering robust three-phase output, it efficiently converts DC power from large solar PV arrays into usable AC electricity while supporting advanced hybrid and energy storage configurations.

    With exceptional PV input capacity, four MPPT channels, and support for both on-grid and off-grid operation, this inverter offers outstanding flexibility for complex installations. A durable IP65-rated enclosure, smart cooling system, and wide operating temperature range ensure reliable performance in demanding environments.

    Key Features

    High-Power Three-Phase Hybrid Platform

    • Three-phase hybrid inverter for large residential and commercial applications
    • Supports on-grid and off-grid system configurations
    • Designed for advanced energy management and system resilience

    High-Voltage Battery Integration

    • Battery voltage range: 160 – 800 V
    • Maximum charging / discharging current: 50 A + 50 A
    • Compatible with high-voltage lithium battery systems

    Advanced PV Input & MPPT Configuration

    • Rated output power: 40,000 W
    • Maximum PV input power: 60,000 W
    • Maximum DC input voltage: 1,000 V
    • MPPT channels: 4
    • MPPT voltage range: 360 – 850 V
    • Start-up voltage: 180 V
    • DC/AC ratio: up to 1.5

    Three-Phase Output Performance

    • AC output rated current: 58 A per phase
    • Maximum AC output current: 58 A per phase

    High Efficiency & Thermal Management

    • Maximum efficiency: 97.6%
    • MPPT efficiency: 99.9%
    • Smart cooling system for stable long-term operation
    • Operating temperature range: -40°C to +60°C

    Durable & Installation Ready

    • IP65 ingress protection – dustproof and waterproof enclosure
    • Designed for indoor and outdoor installations

    Downloads

    Datasheet User Manual
