Deye HV 8kW Three Phase Hybrid Inverter - SUN-8K-SG01HP3-AU-AM2

Overview

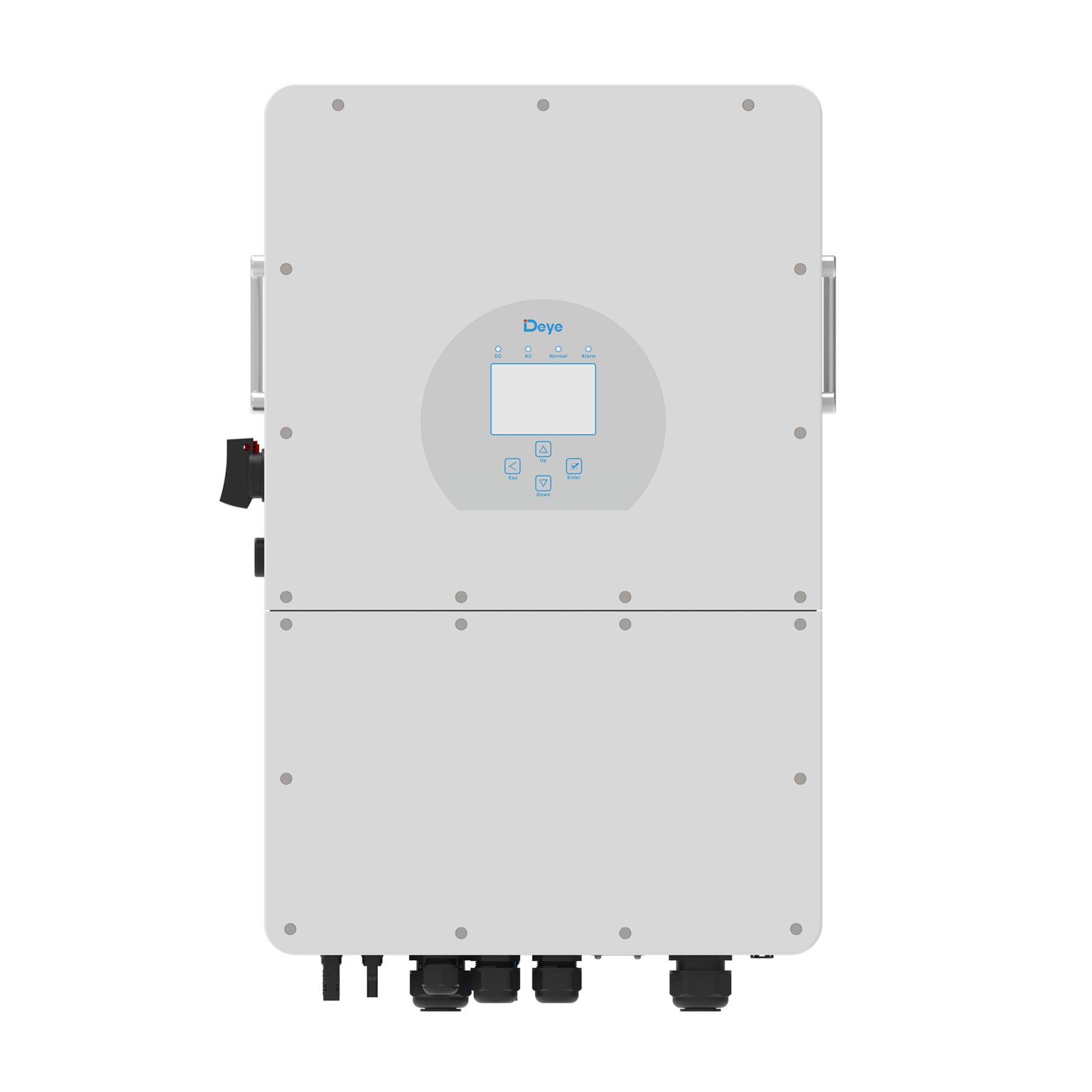

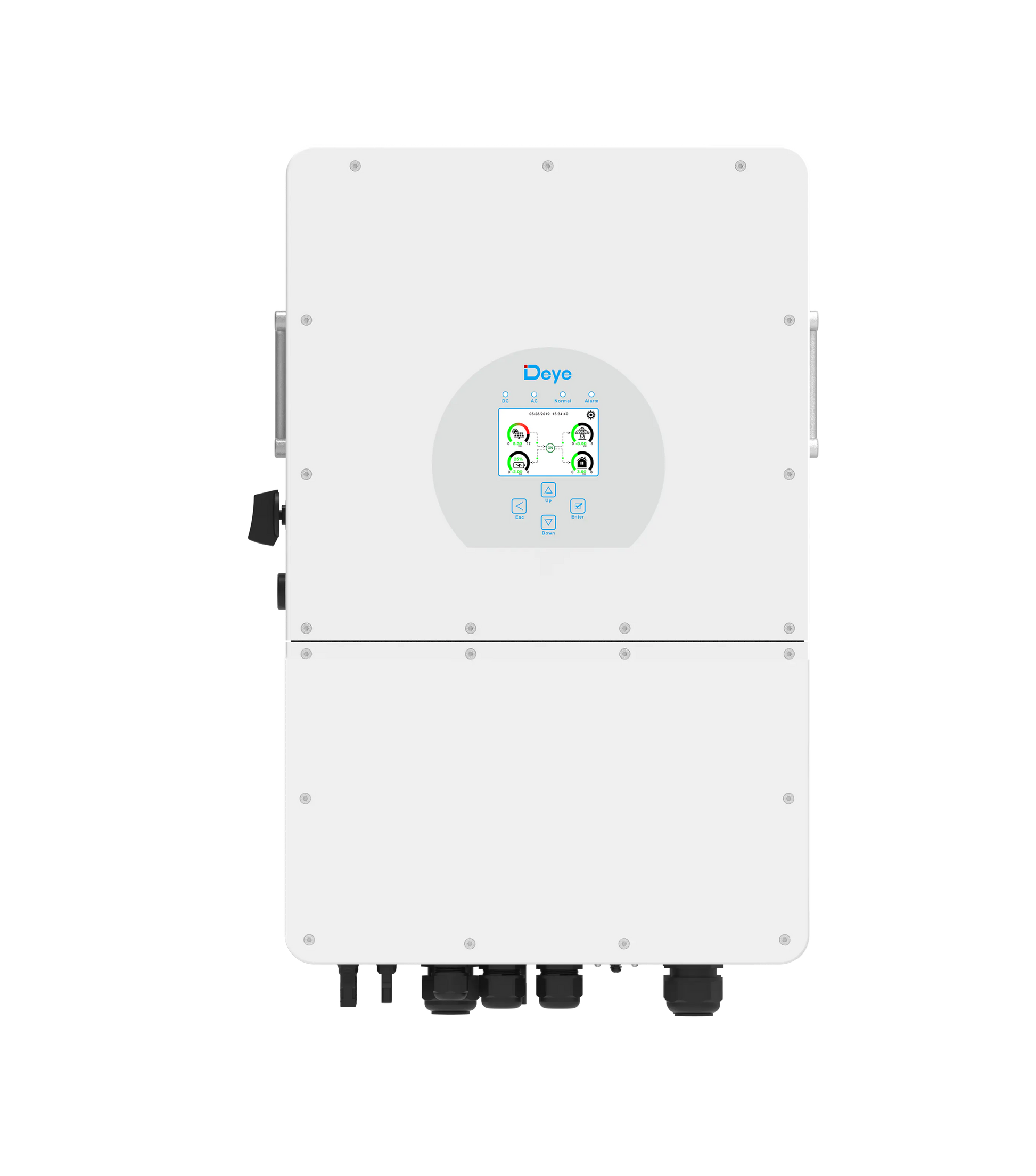

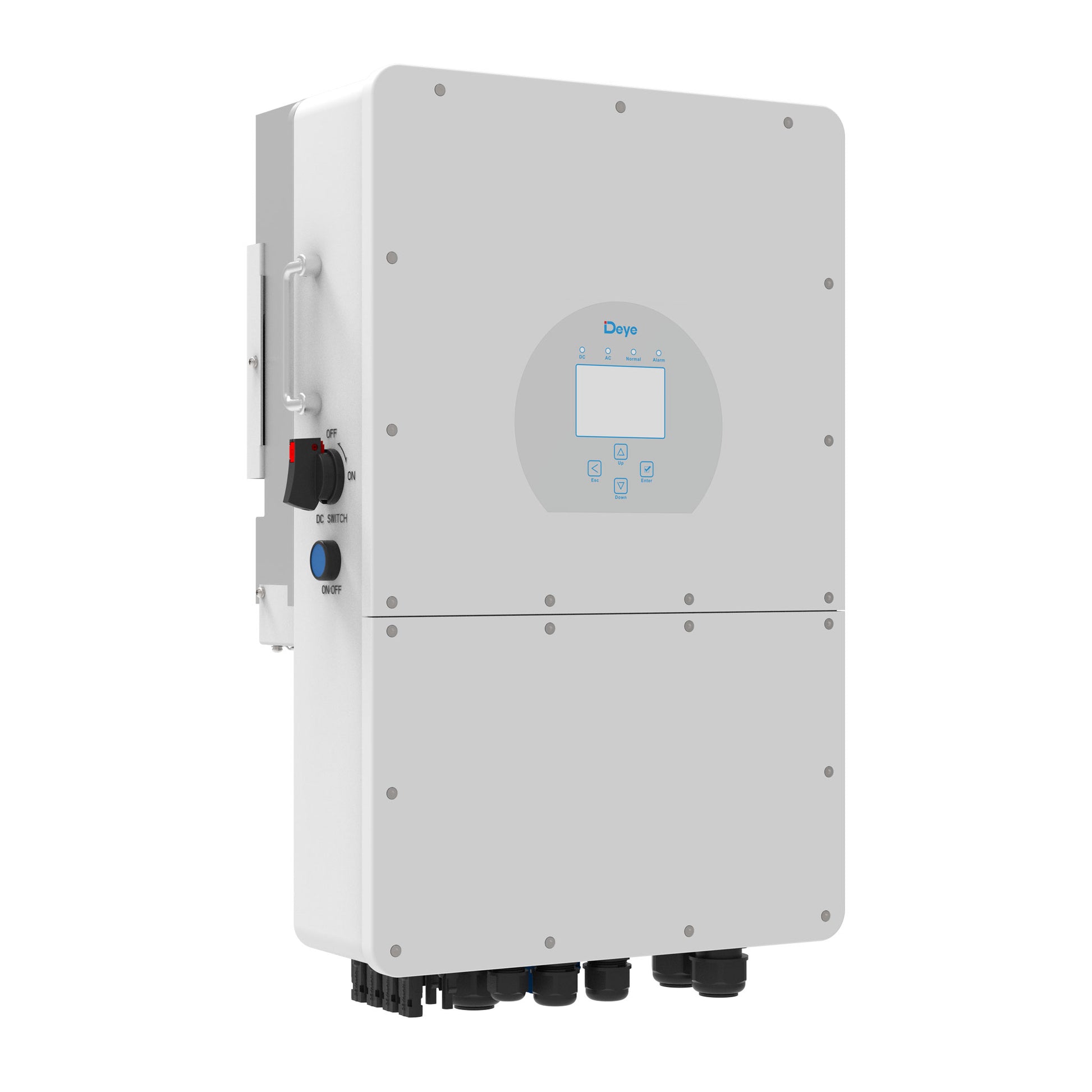

The Deye High Voltage 8 kW Three Phase Hybrid Inverter (SUN-8K-SG01HP3-AU-AM2) is a high-performance hybrid inverter engineered for residential and light commercial solar installations across Australia. Delivering balanced three-phase output, it efficiently converts DC power from solar PV arrays into usable AC electricity while seamlessly integrating high-voltage battery storage.

Designed to support both on-grid and off-grid operating modes, this inverter enables flexible energy management and enhanced system resilience. Compatibility with high-voltage lithium-ion batteries, combined with advanced MPPT control and a durable IP65-rated enclosure, ensures reliable operation across a wide range of environmental conditions.

Key Features

Three-Phase Hybrid Energy Platform

• Three-phase hybrid inverter for balanced power distribution
• Suitable for residential and light commercial solar applications
• Supports both on-grid and off-grid system configurations

High-Voltage Battery Compatibility

• Battery voltage range: 160 – 700 V
• Compatible with high-voltage lithium-ion battery systems
• Maximum charging / discharging current: 50 A

Advanced PV Input & MPPT Configuration

• Maximum DC input power: 10,400 W
• MPPT channels: 2
• MPPT voltage range: 200 – 850 V
• Start-up voltage: 195 V
• Rated DC input voltage: 600 V
• Maximum PV input voltage: 850 V
• Maximum operating PV input current: 13 A

High Efficiency & Thermal Management

• Maximum efficiency: 97.6%
• Euro efficiency: 96.5%
• MPPT efficiency: >99%
• Intelligent air cooling for stable long-term operation
• Operating temperature range from -40°C to +60°C (derating above 45°C)

Durable & Installation Ready

• IP65 ingress protection for indoor and outdoor installations
• Designed for reliable performance in Australian conditions
