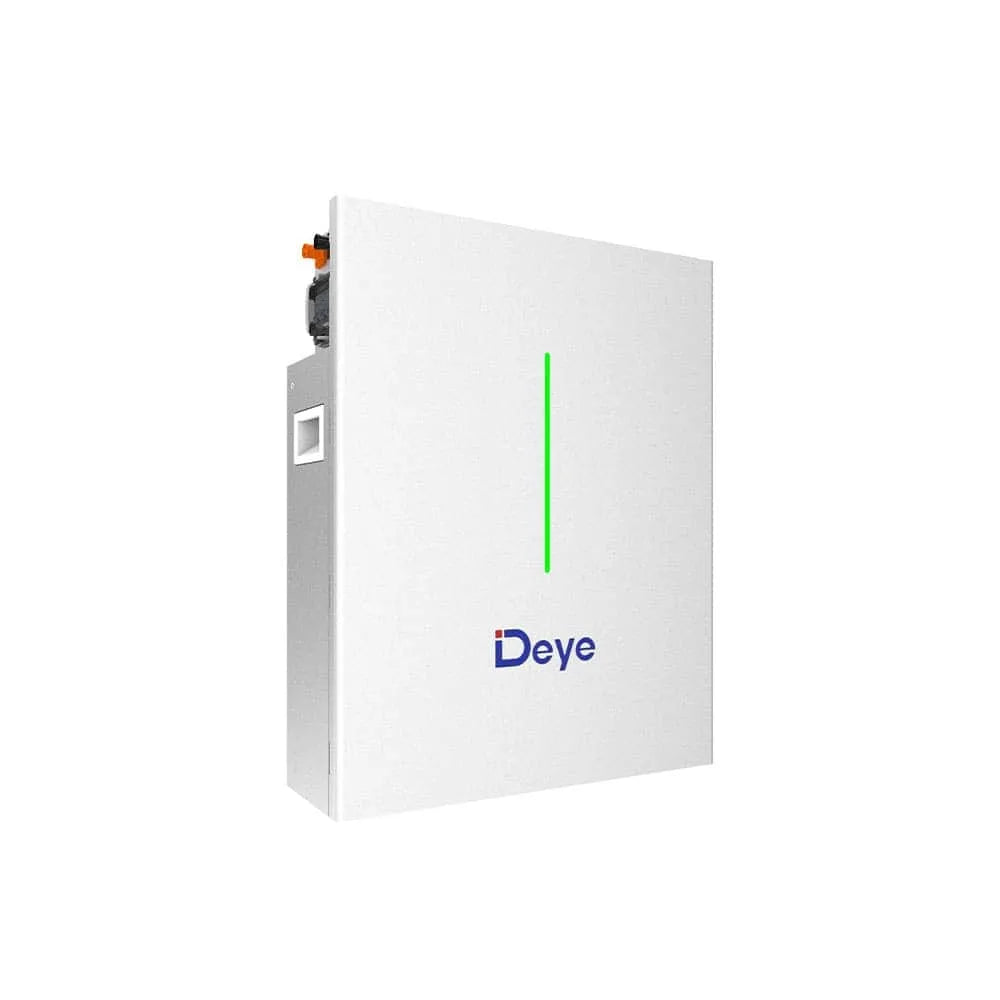

Deye LV 10.2KWh LiFePO4 Battery - RW-F10.2
Deye LV 10.2KWh LiFePO4 Battery - RW-F10.2
Description
Quick Feature Highlights
- 10.2 kWh lithium battery – high-capacity residential energy storage solution
- Cobalt-free LiFePO₄ chemistry – safer, longer lifespan, and environmentally friendly
- High performance output – supports 1C charge and 1.2C discharge rates
- IP65 rated enclosure – suitable for indoor and outdoor installations
- Modular scalable system – expand up to 32 units (326 kWh total capacity)
- Flexible installation – wall-mounted or floor-standing design
Overview
The DEYE Low Voltage Residential Battery 10.2kWh is a compact and high-performance energy storage solution designed for residential and small commercial solar systems. It enables efficient storage of excess solar energy for use during peak demand periods, improving energy independence and reducing reliance on the grid.
Built using safe and environmentally friendly LiFePO₄ (LFP) chemistry, this battery delivers exceptional reliability, long cycle life, and consistent performance across a wide range of operating conditions. With scalable modular capability and flexible installation options, it is an ideal solution for growing energy storage requirements.
Key Features
Battery Performance
- Nominal energy capacity of 10.2 kWh with 9.2 kWh usable energy (90% DOD)
- Supports 1C charge and 1.2C discharge rates for high performance applications
- Long lifespan with up to 6000 cycles at 90% depth of discharge
- Nominal voltage of 51.2V with operating range from 43.2V to 57.6V
Safe & Sustainable Design
- Cobalt-free LiFePO₄ chemistry for enhanced safety and thermal stability
- Non-toxic, environmentally friendly materials
- Built-in 125A 4P DC circuit breaker for added protection
Flexible Installation
- Flat design supports both wall-mounted and floor-standing installations
- Removable base and optional wall bracket for versatile deployment
- Compact form factor suitable for residential applications
Scalable Energy Storage
- Modular design allows connection of up to 32 units in parallel
- Expandable system capacity up to 326 kWh
- Ideal for future system expansion
Environmental Protection & Reliability
- IP65 rated enclosure for indoor and outdoor installations
- Natural cooling design with no active fans
- Wide operating temperature range from -20°C to 55°C
Approvals & Compliance
- IP65 rated for dust and water ingress protection
- Suitable for residential and commercial energy storage applications
Warranty & Support
- 10-year standard manufacturer warranty
- Designed for long-term performance with up to 6000 cycle life
