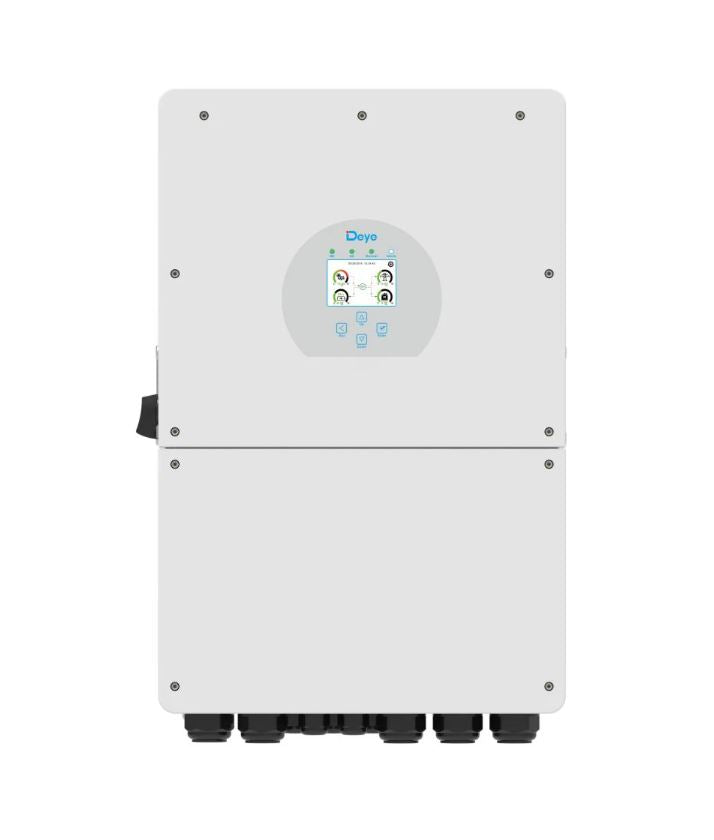

Deye LV 12kW Single Phase Hybrid Inverter - SUN-12K-SG02LP1-AU-AM3

Overview

The Deye Low Voltage 12kW Single Phase Hybrid Inverter is a high-performance solution designed for large residential solar and battery storage systems. It efficiently converts solar DC power into usable AC power while seamlessly integrating low-voltage battery storage to maximise self-consumption, provide backup power, and improve energy independence.

With three MPPT channels, high PV input capacity, and industry-leading efficiency, the Deye 12kW hybrid inverter supports complex solar array designs and high battery charge and discharge rates. Its robust IP65-rated construction and intelligent cooling system ensure reliable operation in demanding environments.

Key Features

Solar & Inverter Performance

• Rated output power: 12 kW
• 3 MPPT channels for superior PV design flexibility
• Maximum DC input power: 24,000 W
• Maximum PV input voltage: 500 V
• MPPT voltage range: 150 – 425 V
• Start-up voltage: 125 V

Battery Integration

• Battery voltage range: 40 – 60 V
• Compatible with lithium-ion and lead-acid batteries
• Maximum charging / discharging current: 250 A
• Single battery input

Efficiency & Reliability

• Maximum efficiency: 97.6%
• Euro efficiency: 97.0%
• MPPT efficiency: 99.9%
• Operating temperature range: -40°C to +60°C (derating above 45°C)
• Ingress protection rating: IP65

Design & Installation

• Cooling system: Intelligent air cooling
• Dimensions (W × H × D): 464 × 763 × 282 mm
• Weight: ~52 kg
• Suitable for indoor and outdoor installation
