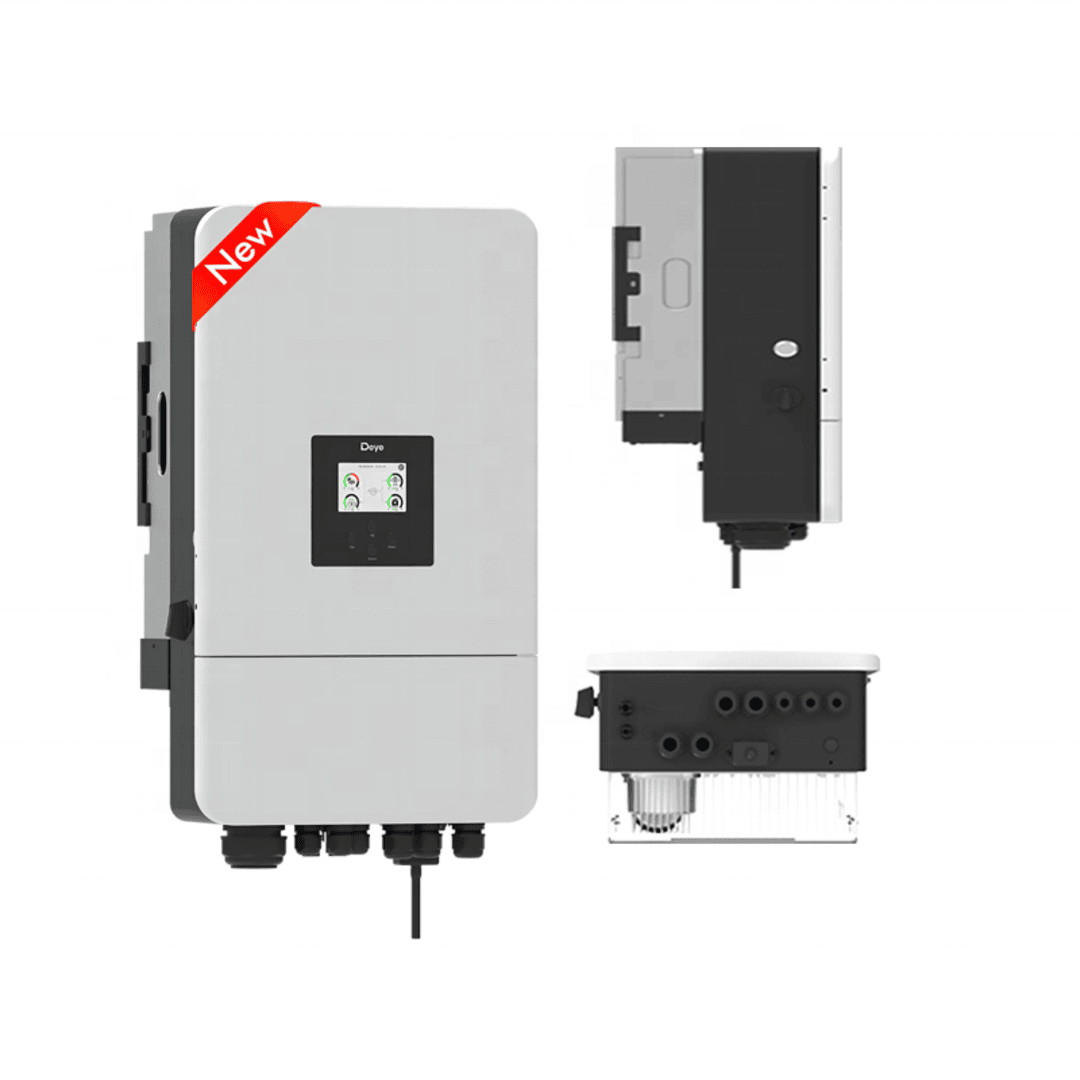

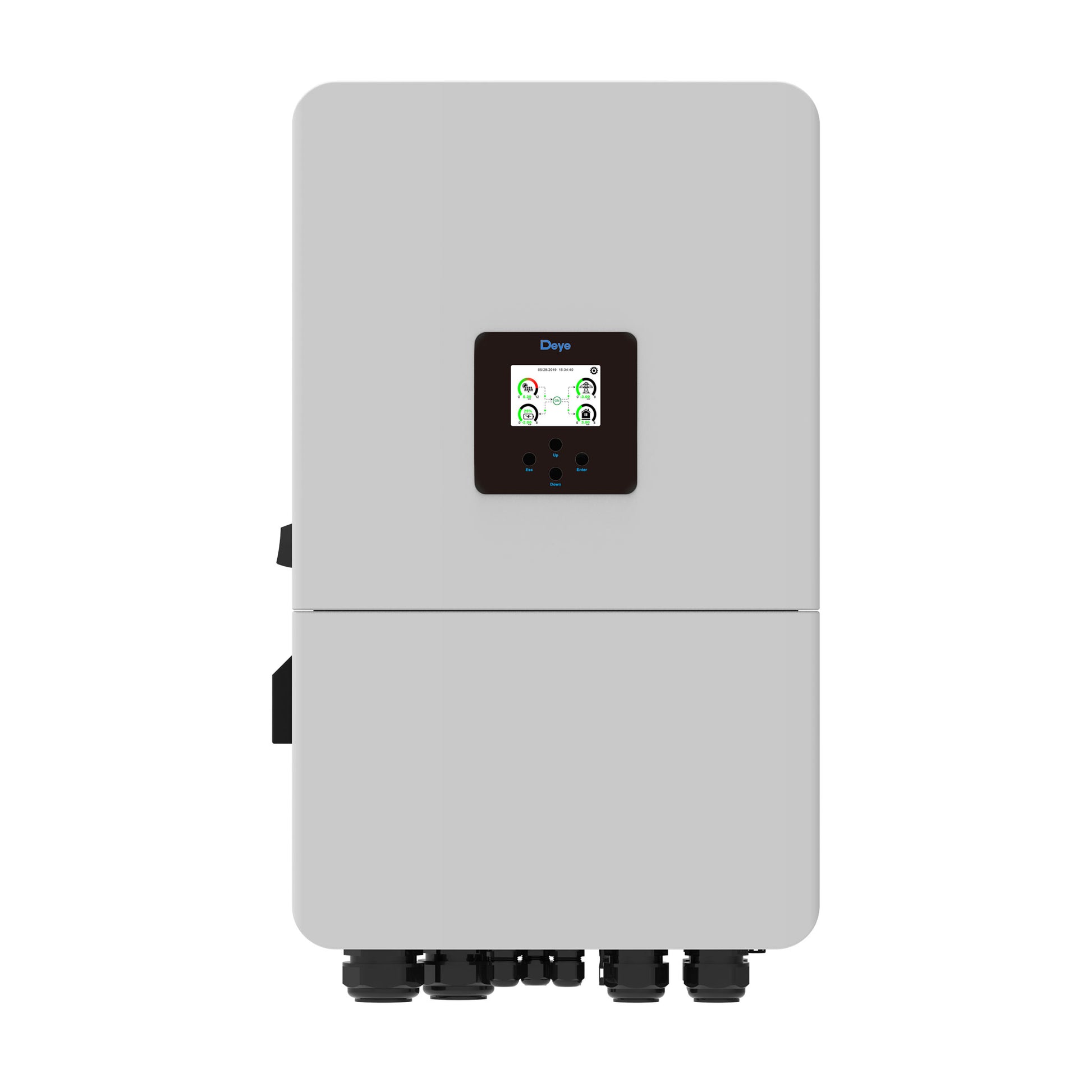

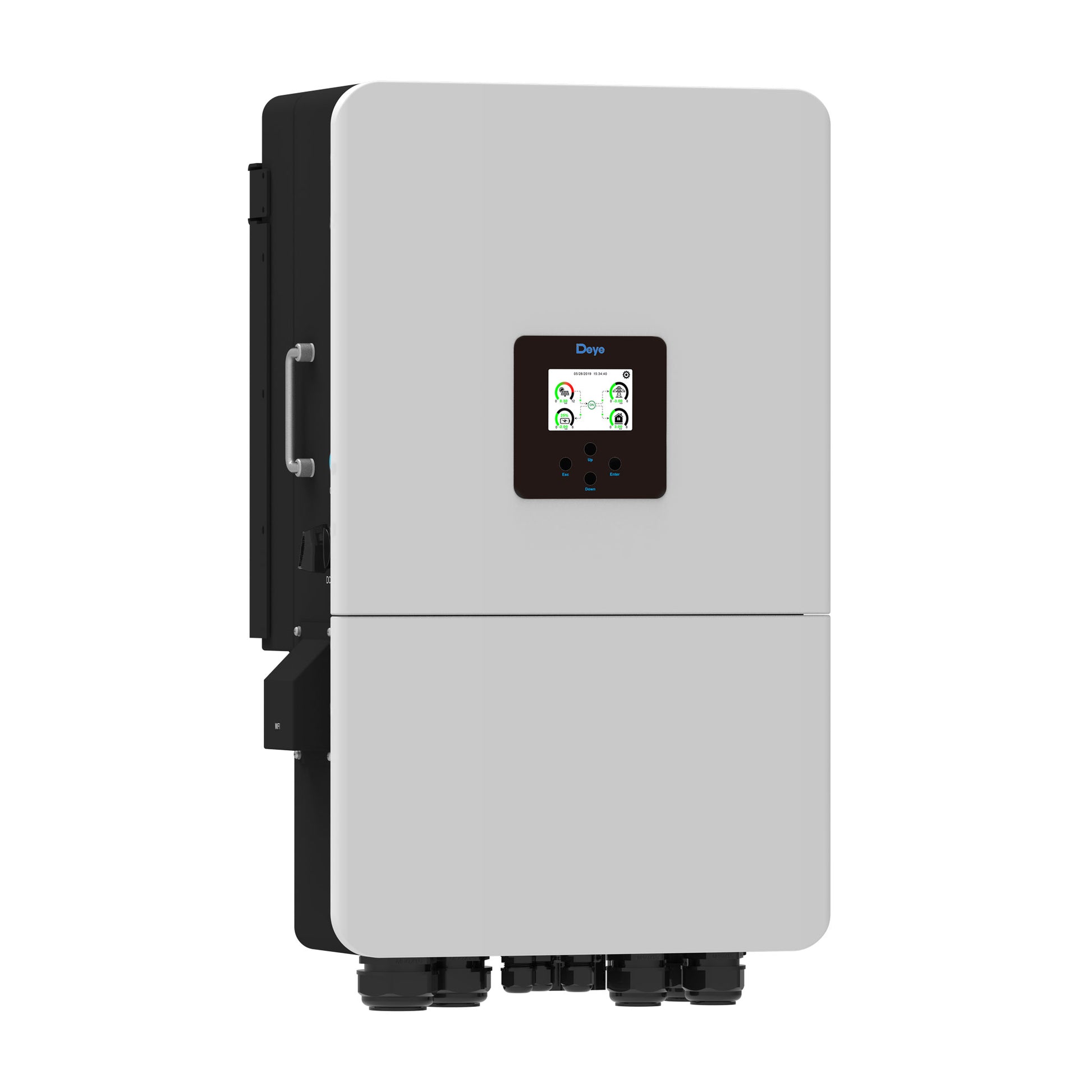

Deye LV 14kW Three Phase Hybrid Inverter - SUN-14K-SG05LP3-AU

Overview

The SUN-14/15/16/18/20K-SG05LP3-AU-SM2 Series is a modern range of three-phase hybrid inverters delivering outputs from 14 kW to 20 kW. Designed specifically for Australian residential and light commercial energy storage systems, this series combines high performance, intelligent energy management, and advanced low-voltage battery integration.

Supporting 48 V low-voltage batteries with a transformer-isolated design, these inverters provide enhanced electrical safety, very high battery current capability, and flexible hybrid operation. Features such as unbalanced three-phase output, AC coupling, and programmable battery scheduling make this series suitable for both new installations and retrofit projects.

Key Features

Three-Phase Hybrid Energy Platform

• Three-phase hybrid inverter range from 14 kW to 20 kW
• Suitable for residential and light commercial installations
• Supports both on-grid and off-grid system configurations

Low-Voltage Battery Integration

• Battery voltage: 48 V (low-voltage)
• Transformer-isolated battery design for improved safety
• Maximum charging / discharging current: 350 A
• Supports multiple low-voltage batteries connected in parallel

Advanced PV Input & MPPT Configuration

• MPPT channels: 2
• Flexible PV array configuration for higher energy yield
• Optimised for efficient solar generation

Three-Phase Output Performance

• 100% unbalanced output capability across phases
• Up to 50% of rated power available on a single phase
• Well suited to sites with uneven phase loading

AC-Coupled & Hybrid System Support

• AC coupling capability for retrofitting existing solar PV systems
• Supports energy storage from diesel generators
• Six programmable time periods for battery charging and discharging

Scalable & Parallel Ready

• Up to 10 inverters in parallel for larger systems
• Future-ready design for system expansion
