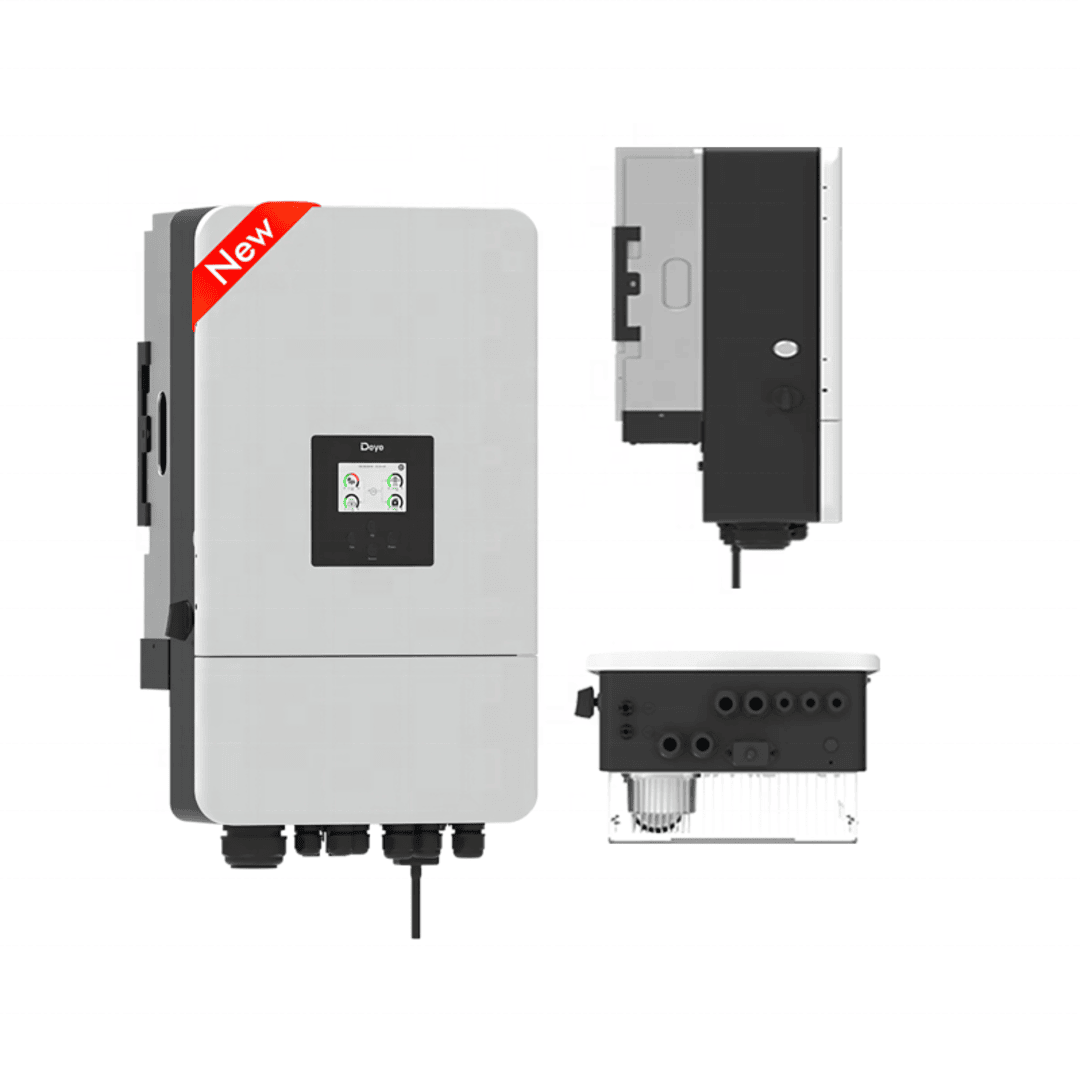

Deye LV 15kW Three Phase Hybrid Inverter - SUN-15K-SG05LP3-AU-SM2

Overview

The Deye SUN-14/15/16/18/20K-SG05LP3-AU-SM2 series is a three-phase low-voltage hybrid inverter range designed for advanced residential and commercial energy storage applications. Spanning from 14 kW to 20 kW, this series delivers high performance, flexible system design, and intelligent energy management.

Featuring support for AC-coupled retrofits, diesel generator integration, and parallel operation of up to 10 inverters, the SG05LP3-AU-SM2 range is ideal for new installations and system upgrades requiring reliability, scalability, and smart control.

Key Features

Three-Phase Hybrid Energy Control

• Three-phase hybrid inverter for on-grid and off-grid operation
• Power ratings: 14 kW / 15 kW / 16 kW / 18 kW / 20 kW
• Supports up to 10 inverters in parallel

Low-Voltage Battery Integration

• 48 V low-voltage battery system with transformer isolation design
• Supports multiple battery banks connected in parallel
• Maximum charging / discharging current: 350 A

Flexible & Unbalanced Power Output

• 100% unbalanced output across all three phases
• Up to 50% of rated power per phase
• Ideal for sites with uneven three-phase load profiles

Advanced System Compatibility

• AC coupling support for existing PV system retrofits
• Supports charging batteries from diesel generators
• Suitable for hybrid, backup, and off-grid applications

Smart Energy Management

• Configurable 6 time periods for battery charging and discharging
• Optimised for higher yields and reduced energy costs
• User-friendly system configuration and monitoring
