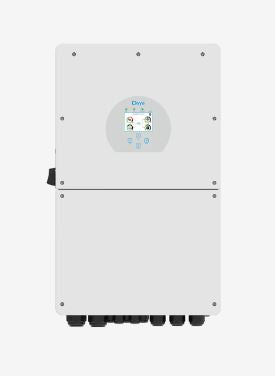

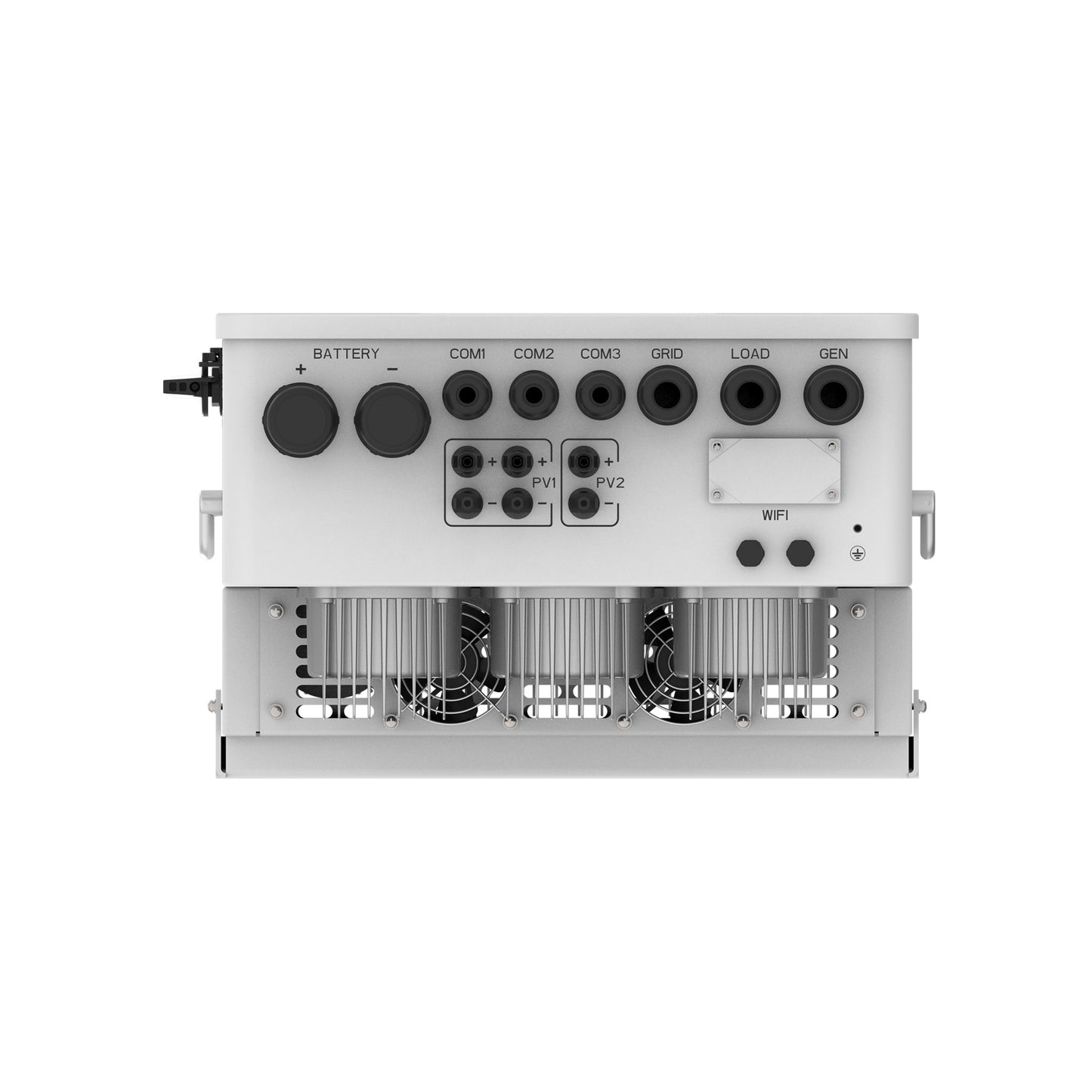

Deye LV 16kW Single Phase Hybrid Inverter - SUN-16K-SG01LP1-AU

Overview

The Deye 16 kW Single-Phase Low Voltage Hybrid Inverter is a powerful residential inverter designed for high-demand homes and advanced solar energy systems. It efficiently converts DC power from solar PV into AC electricity while enabling seamless integration with low-voltage battery storage.

With three MPPT channels, high charging and discharging capability, and robust thermal management, this inverter is ideal for larger residential installations seeking maximum self-consumption, backup power capability, and future-ready energy management.

Key Features

High-Power Hybrid Energy Control

• Single-phase hybrid inverter for residential applications
• Rated AC output power: 16 kW
• Supports solar PV, battery storage, and grid interaction

Low-Voltage Battery Compatibility

• Battery voltage range: 40–60 V
• Compatible with lithium-ion and lead-acid battery systems
• Maximum charging/discharging current: 290 A
• Single battery input for simplified system design

Advanced Solar Input Design

• 3 MPPT channels for flexible PV string configuration
• Maximum DC input power: 24,000 W
• MPPT voltage range: 150–425 V
• Start-up voltage: 150 V
• Maximum PV input voltage: 500 V

High Efficiency & Thermal Performance

• Maximum efficiency: 97.6%
• Intelligent air cooling for stable long-term operation
• Operating temperature range: -40°C to +60°C (derating above 45°C)

Durable Outdoor Rated Construction

• IP65 ingress protection for indoor or outdoor installation
