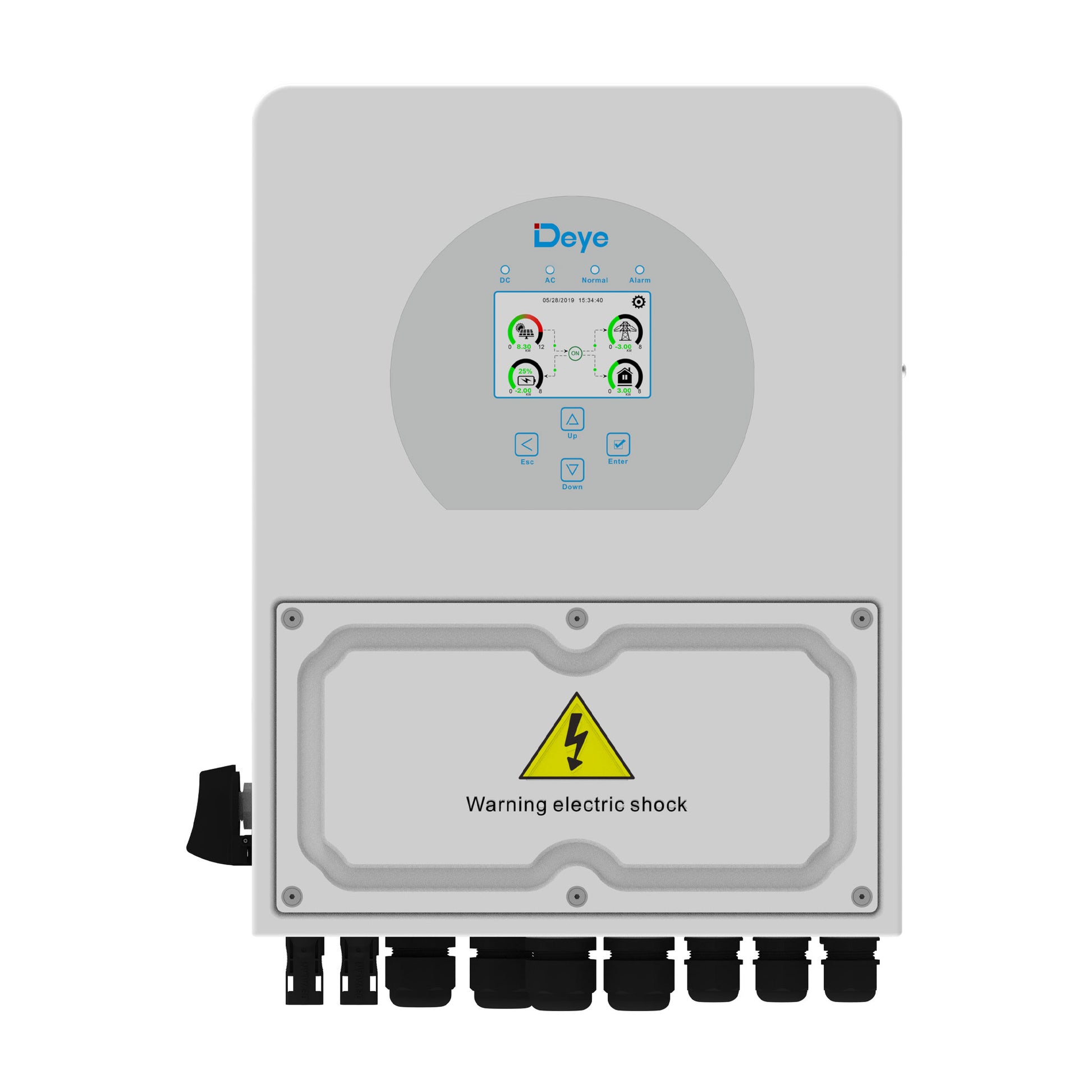

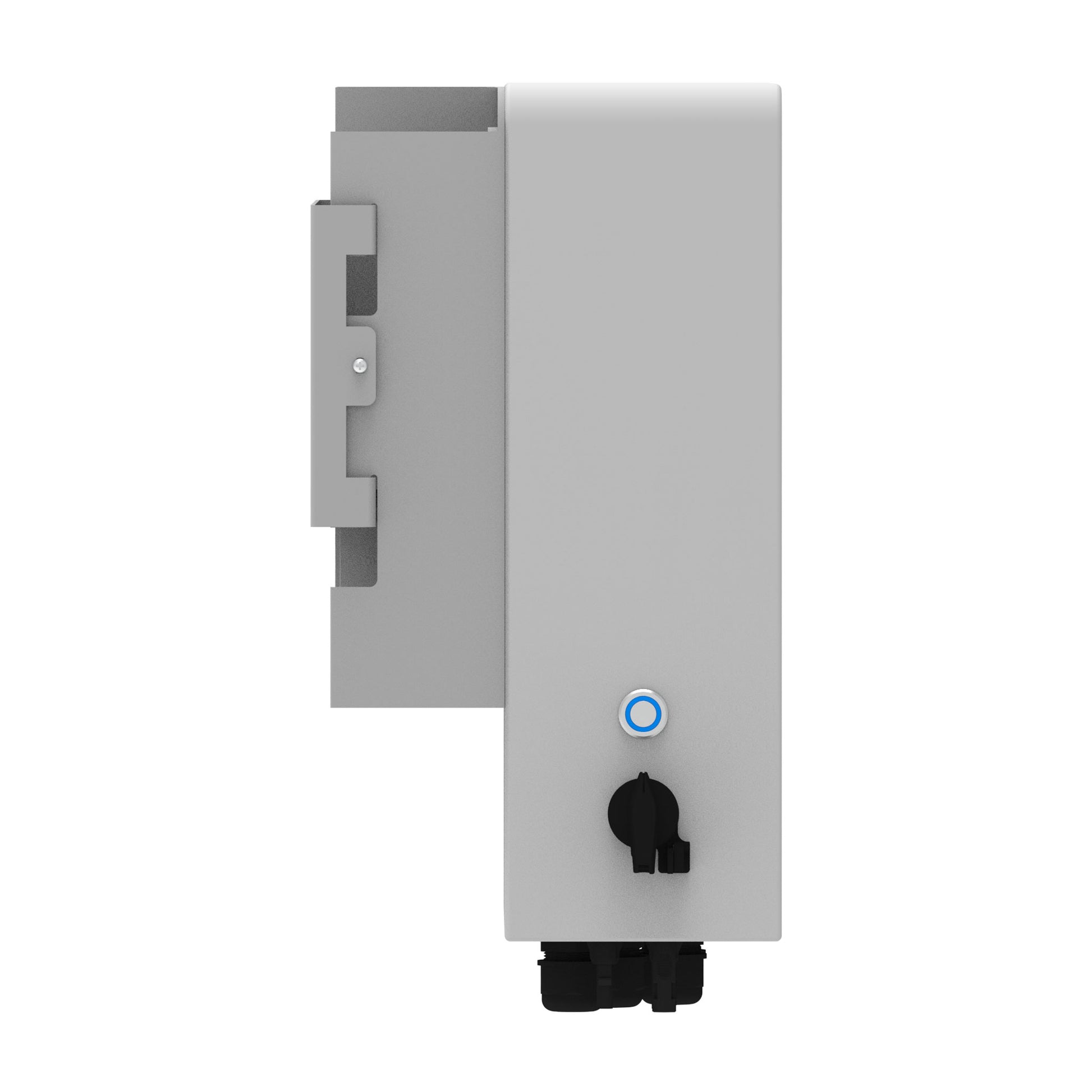

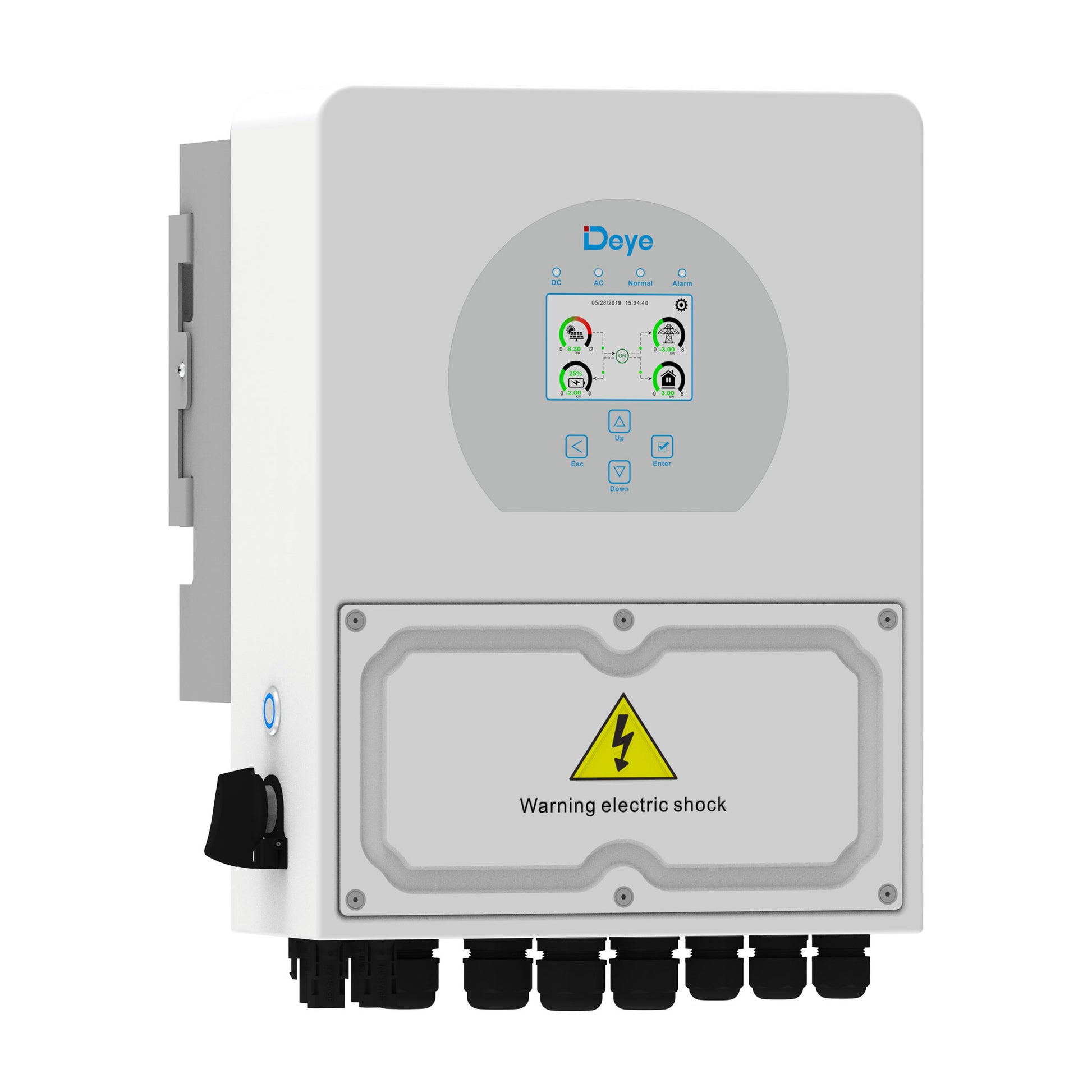

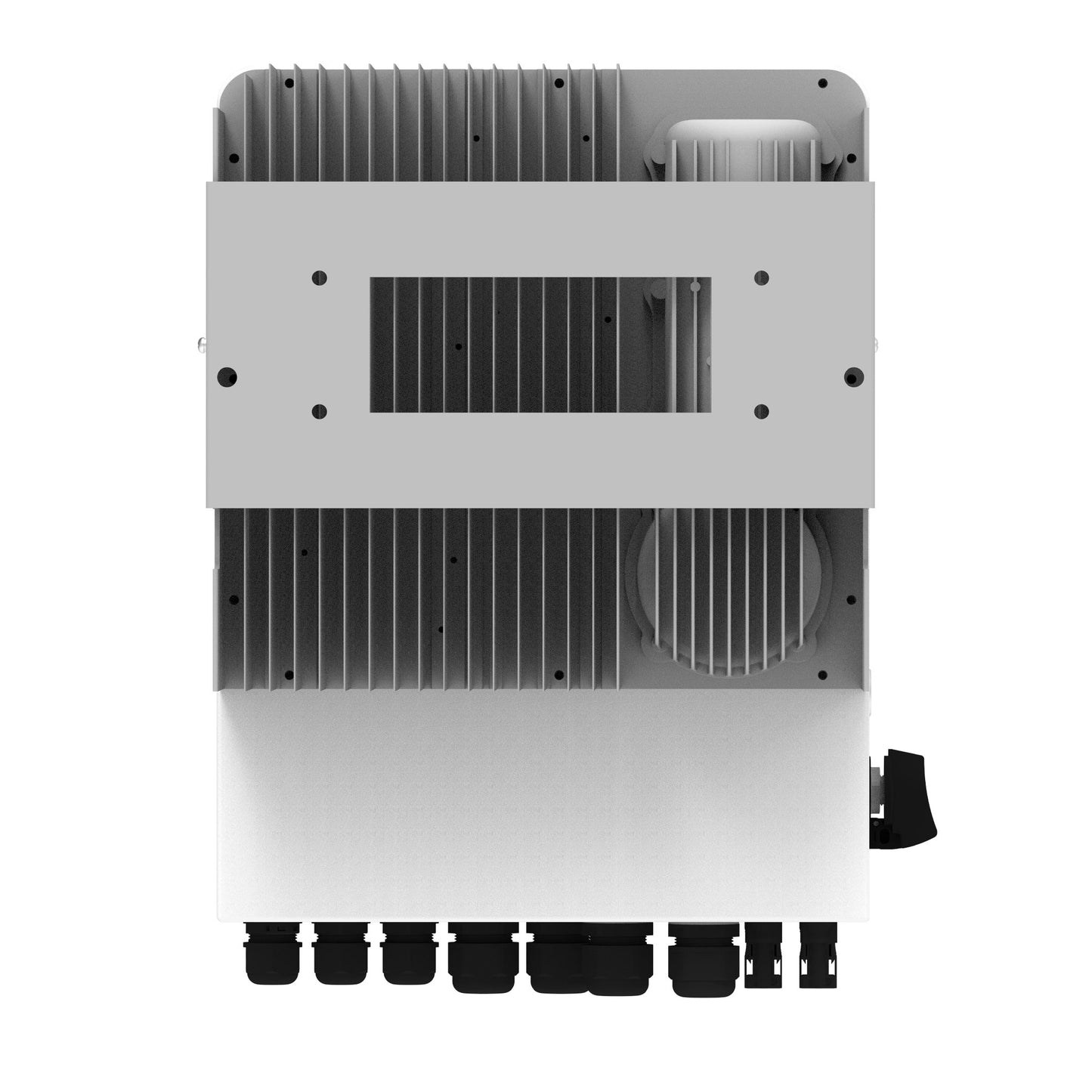

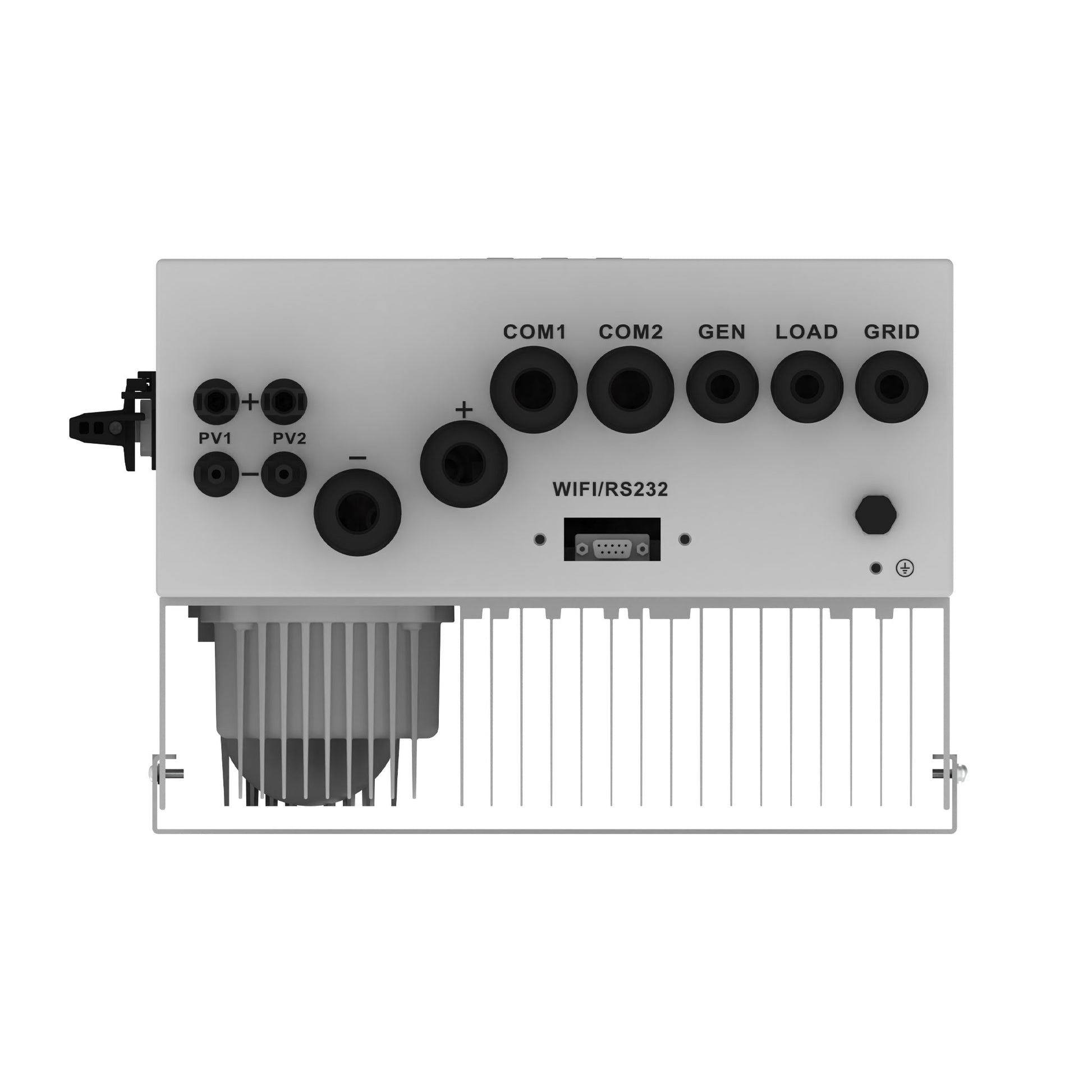

Deye LV 3.6kW Single Phase Hybrid Inverter - SUN-3.6K-SG04LP1-AU

Deye LV 3.6kW Single Phase Hybrid Inverter - SUN-3.6K-SG04LP1-AU

Deye Lv 3 6Kw Single Phase Hybrid Inverter Sun 3 6K Sg04Lp1 Au

Deye Low Voltage 3.6kW Single Phase Hybrid Inverter

The Deye 3.6kW single-phase hybrid inverter designed for residential solar energy systems. It efficiently converts DC power from solar panels into AC power for household use, while also supporting battery storage integration.

Key Features

• Rated Output Power: 3,600 W
• Maximum AC Output Power: 3,600 W
• AC Output Voltage: 220/230 V, single-phase
• AC Output Frequency: 50/60 Hz
• Voltage Range: 40–60 V
• Max. Charging Current: 90 A
• Max. Discharging Current: 90 A
• Max. DC Input Power: 4,680 W

Additional Features

• MPPT Voltage Range: 150–425 V
• Start-Up Voltage: 125 V
• Rated DC Input Voltage: 370 V
• Maximum Efficiency: 97.6%
• Euro Efficiency: 96.5%
• MPPT Efficiency: >99%
• Protection Rating: IP65
• Operating Temperature Range: -40°C to +60°C
• Warranty: 10 years

Downloads

• https://files.dpa.energy/wp-content/uploads/2025/10/datasheet_sun-3-6k-sg04lp1-au_240203_au.pdf
• https://files.dpa.energy/wp-content/uploads/2025/10/usermanuel_sun-3-6k-sg04lp1-au_240203_au.pdf
