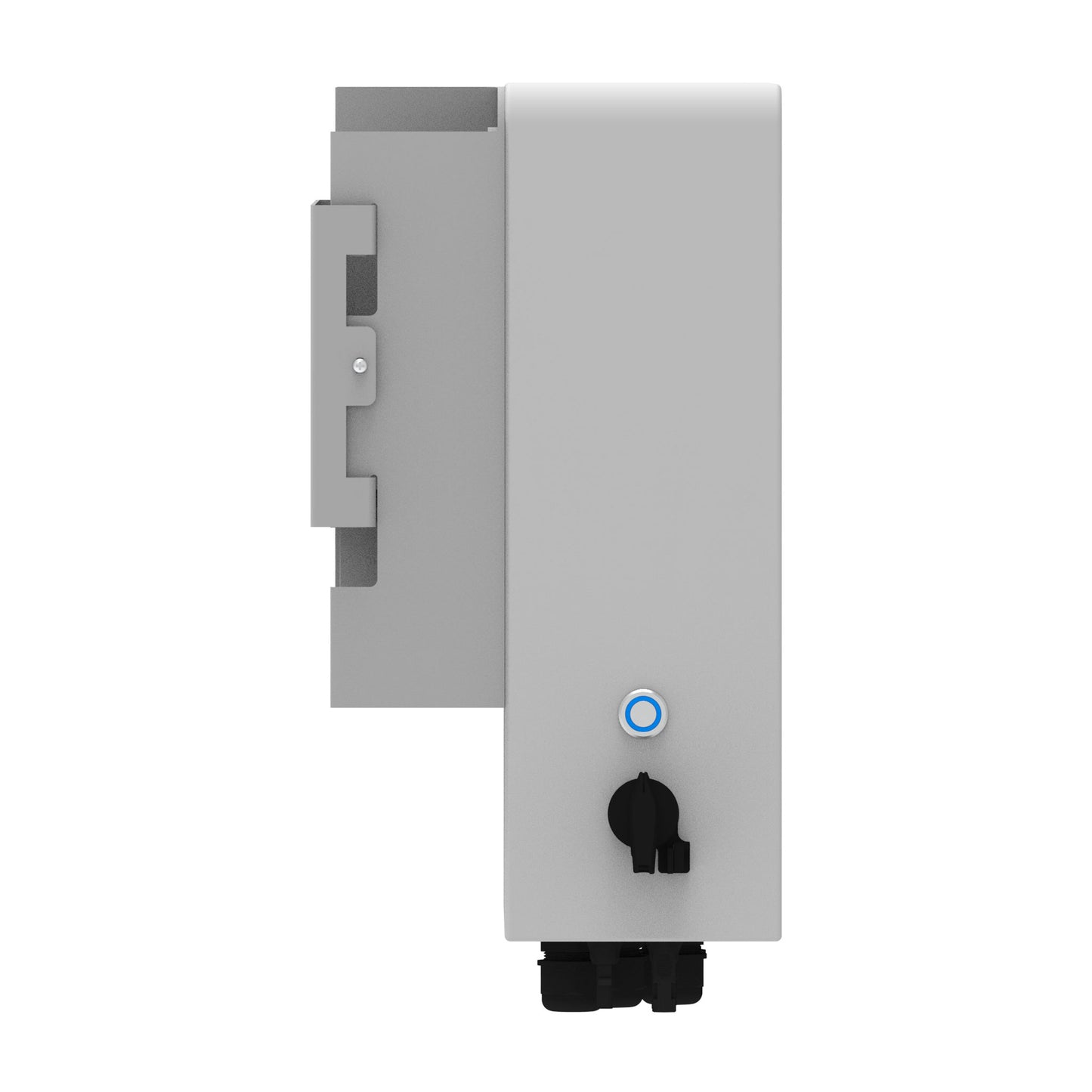

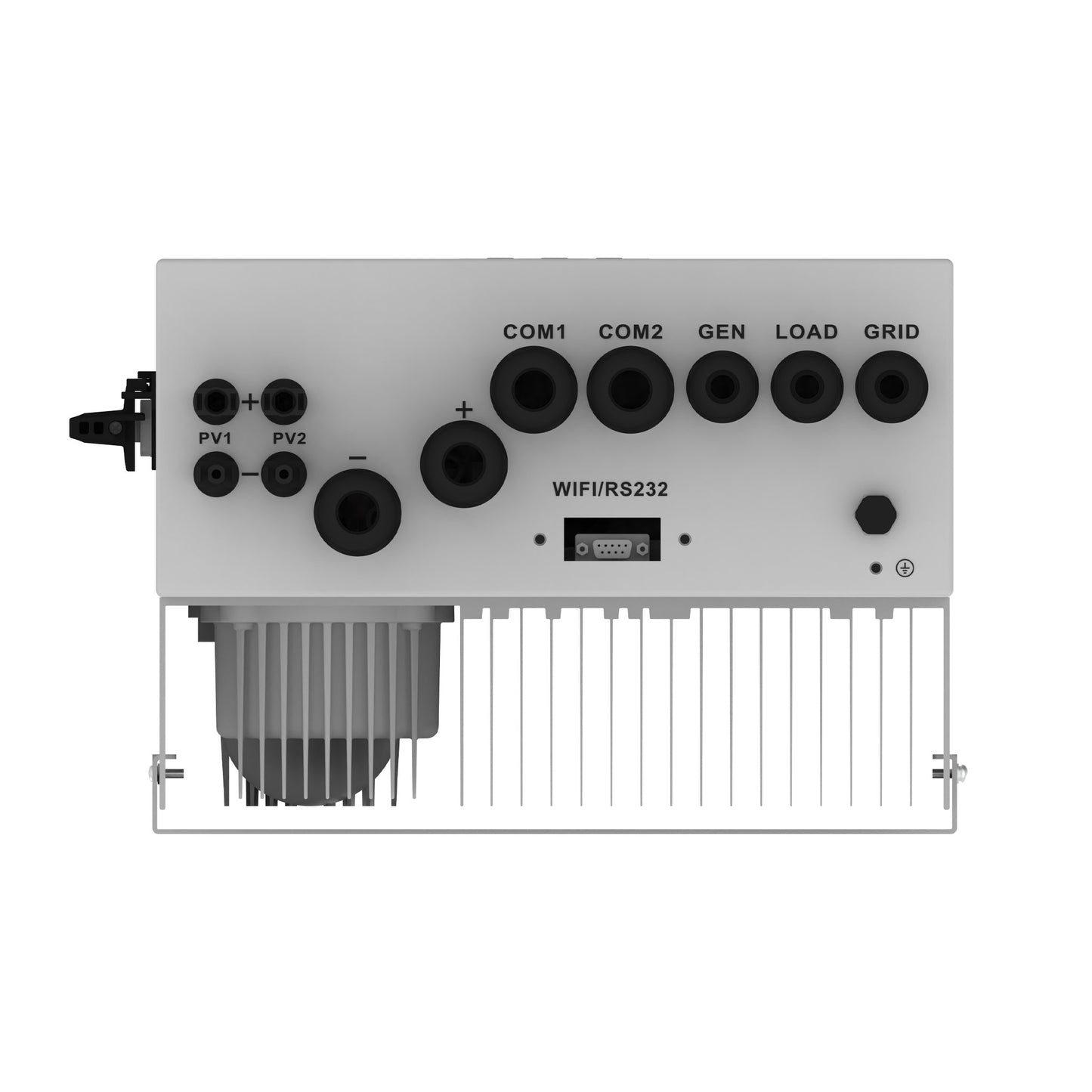

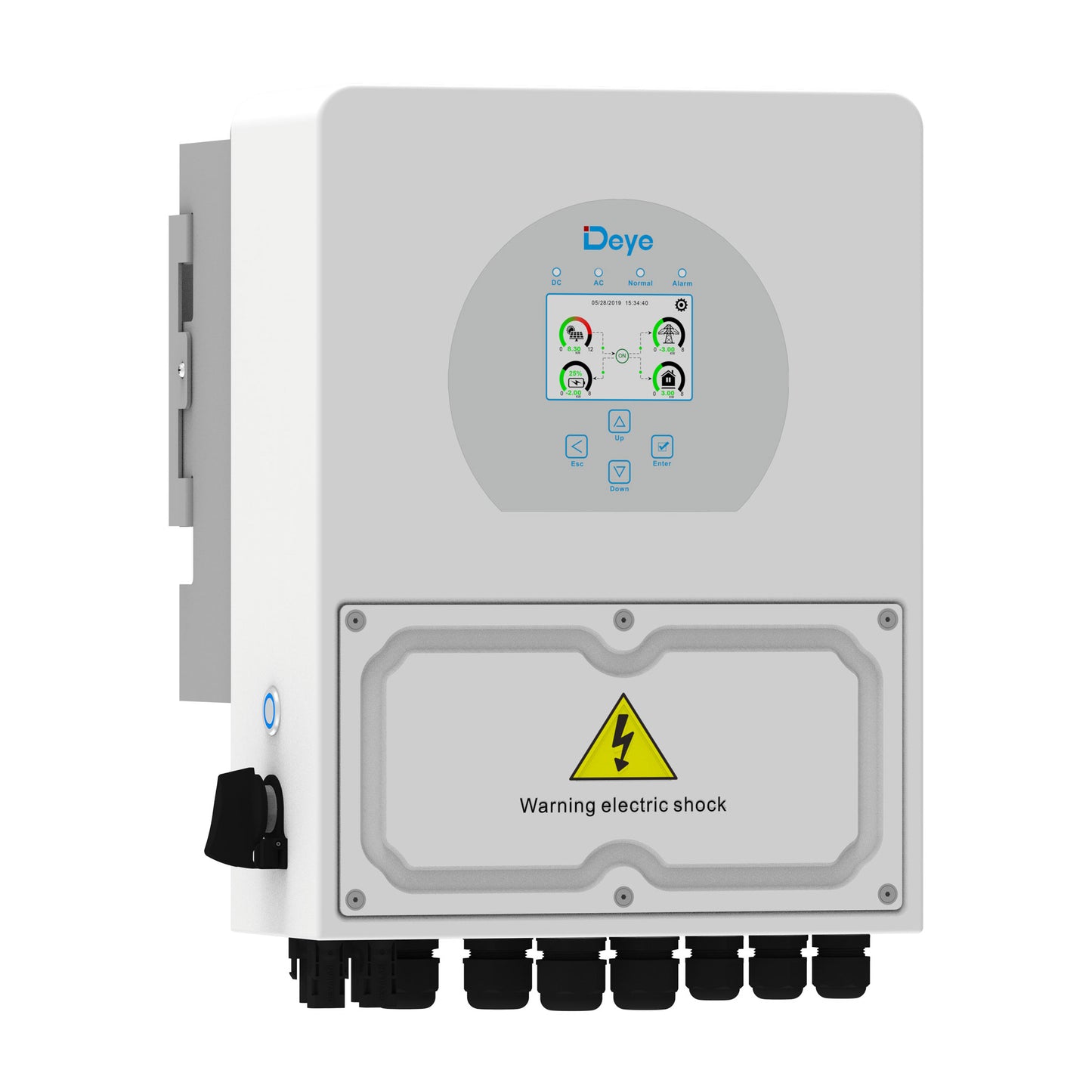

Deye LV 3kW Single Phase Hybrid Inverter - SUN-3K-SG04LP1-AU

Overview

The Deye Low Voltage 3 kW Single Phase Hybrid Inverter is a compact and efficient solution for residential solar energy systems. Designed to seamlessly integrate solar PV generation with battery storage, it converts DC power from solar panels into usable AC power for household consumption while enabling intelligent energy storage and usage.

Compatible with 24 V low-voltage battery systems, this inverter supports efficient battery cycling with high charge and discharge currents, making it well suited to homes seeking flexible energy management. With a robust IP65-rated enclosure, the inverter is suitable for both indoor and outdoor installations across a wide range of environmental conditions.

Key Features

Hybrid Solar & Battery Integration

• Single-phase hybrid inverter for solar PV and battery storage systems
• Optimised for residential self-consumption and backup-ready applications
• Compatible with low-voltage (24 V) battery configurations

High Performance & Efficiency

• Rated output power: 3,000 W
• Maximum efficiency: 97.6%
• Euro efficiency: 96.5%
• MPPT efficiency: >99%

Advanced Battery Charging Capability

• Maximum charging current: 70 A
• Maximum discharging current: 70 A
• Supports rapid and efficient battery cycling

Flexible PV Input & MPPT Design

• Maximum DC input power: 3,900 W
• MPPT voltage range: 125 – 425 V
• Start-up voltage: 125 V
• Rated DC input voltage: 370 V

Durable & Installation Ready

• IP65 protection rating for indoor and outdoor installations
• Operating temperature range: -40°C to +60°C
• Designed for long-term operation in harsh environments
