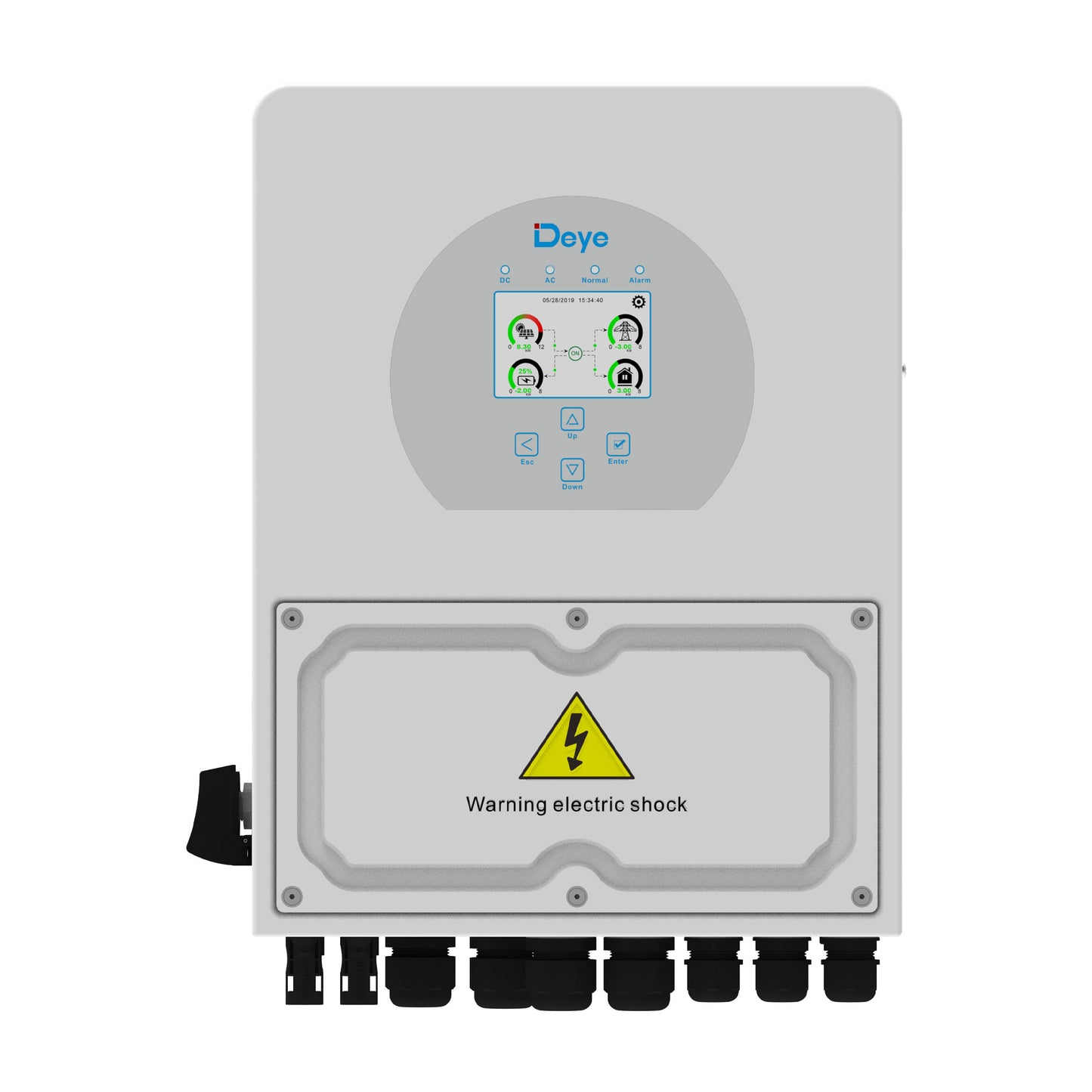

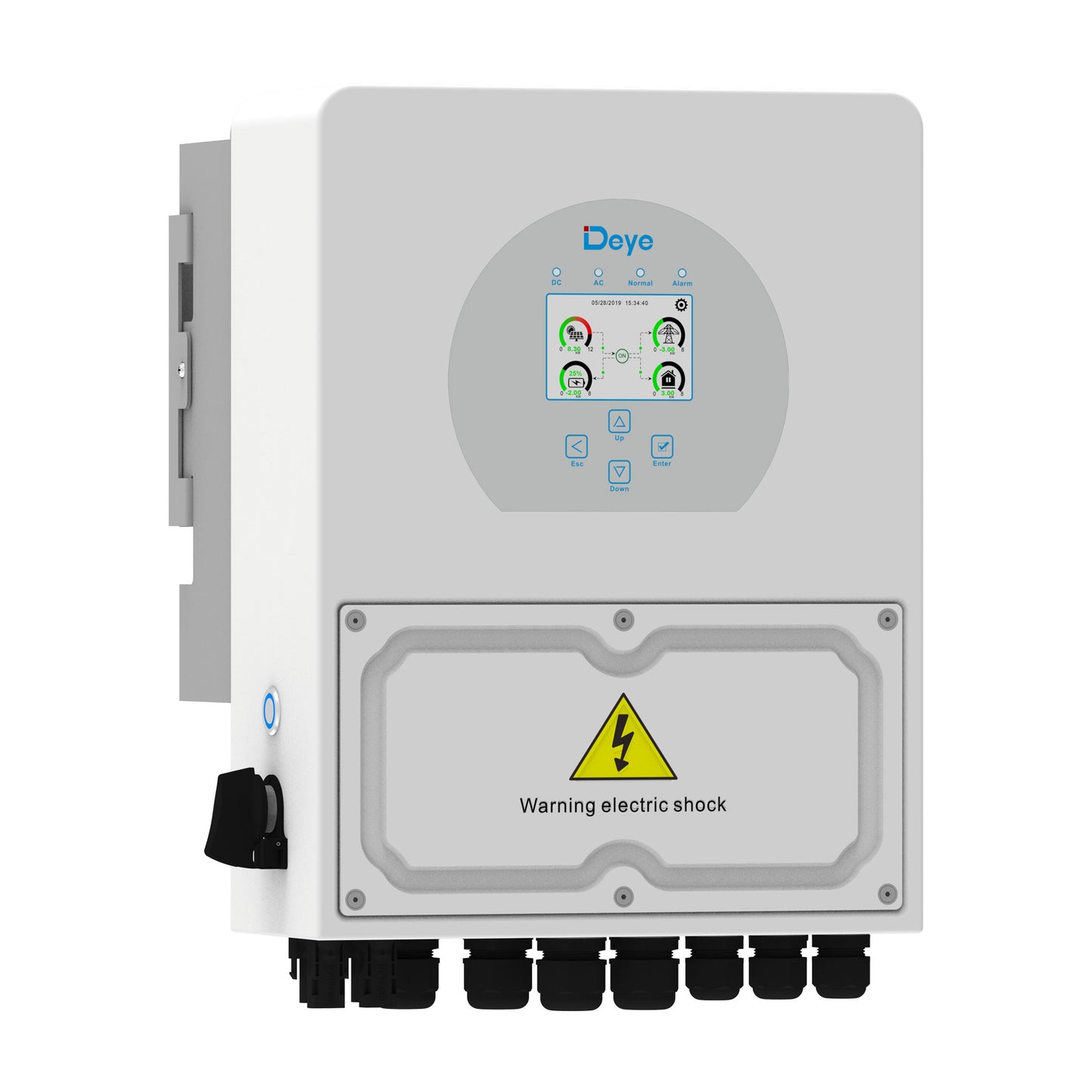

Deye LV 5kW Single Phase Hybrid Inverter - SUN-5K-SG04LP1-AU

Overview

The Deye Low Voltage 5kW Single Phase Hybrid Inverter is a compact and efficient solution for modern residential solar energy systems. Designed to seamlessly integrate solar generation, battery storage, and grid interaction, this hybrid inverter enables households to maximise self-consumption while maintaining reliable backup capability.

With dual MPPT trackers, wide operating voltage ranges, and high charging and discharging currents, the Deye hybrid inverter offers excellent flexibility for a wide variety of PV layouts and battery configurations. Its robust IP65-rated design ensures dependable operation in harsh environmental conditions.

Key Features

Solar & Battery Performance

• Rated power output: 6kW
• Dual MPPT trackers (2) for improved solar harvesting
• Maximum DC input power: 9,000W
• Wide MPPT voltage range: 150 – 425V
• Start-up voltage: 125V

Battery Compatibility

• Battery voltage range: 40 – 60V
• Supports Li-ion and lead-acid batteries
• Maximum charging / discharging current: 135A

Efficiency & Reliability

• Maximum efficiency: 97.6%
• Operating temperature range: -25°C to +65°C
• Ingress protection rating: IP65

Installation & Longevity

• Suitable for indoor and outdoor installation
• Designed for long-term residential operation
• 10-year manufacturer warranty
