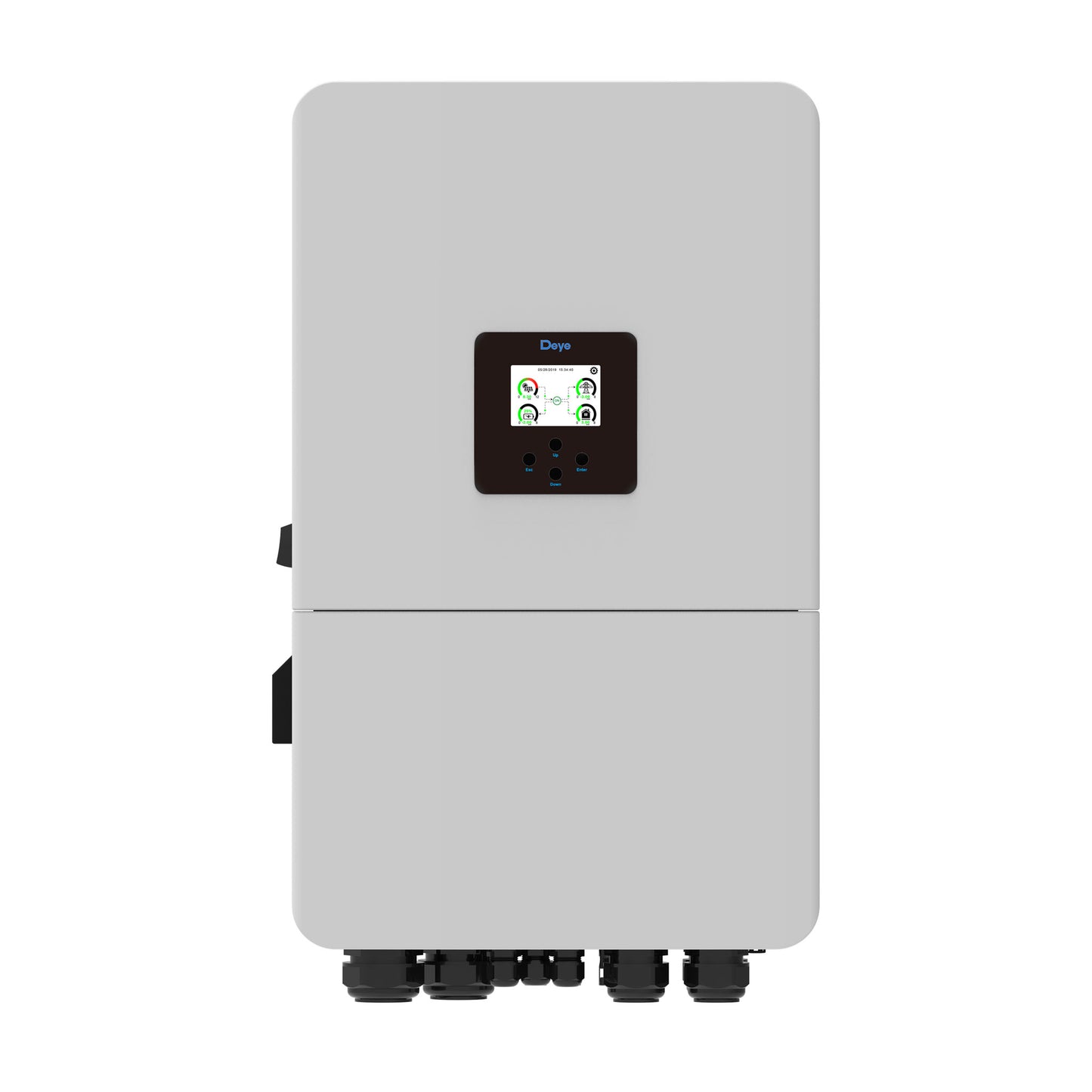

DEYE Low Voltage Hybrid Inverter Three Phase 5kW
The DEYE SUN-5K-SG04LP3-AU is a three-phase hybrid inverter designed for residential and light commercial solar applications in Australia. With a rated output of 5 kW, it efficiently converts DC power from solar panels into AC power, supporting both on-grid and off-grid configurations.
Specifications
Rated Output Power: 5 kW
Battery Voltage Range: 48 V (compatible with low-voltage batteries)
Max. Charging/Discharging Current: 240 A
Number of Battery Inputs: 1
MPPT Channels: 2
Max. DC Input Power: 6,500 W
MPPT Voltage Range: 125–425 V
Rated DC Input Voltage: 370 V
Max. DC Input Voltage: 500 V
Max. Efficiency: 97.6%
MPPT Efficiency: >99%
Operating Temperature Range: -40°C to +60°C (derating above 45°C)
Ingress Protection: IP65
Cooling: Intelligent Air Cooling
Warranty: 10 years
Data Sheet:
https://files.dpa.energy/wp-content/uploads/2025/10/datasheet_sun-5-12k-sg04lp3-au_241111_au.pdf
User Manual:
https://files.dpa.energy/wp-content/uploads/2025/10/Mauel-Sheet-5-12l-sg04lp3-au.pdf
