Discover AES RACKMOUNT 30kWh Slimline IP54 Enclosure - 950-0053

Overview

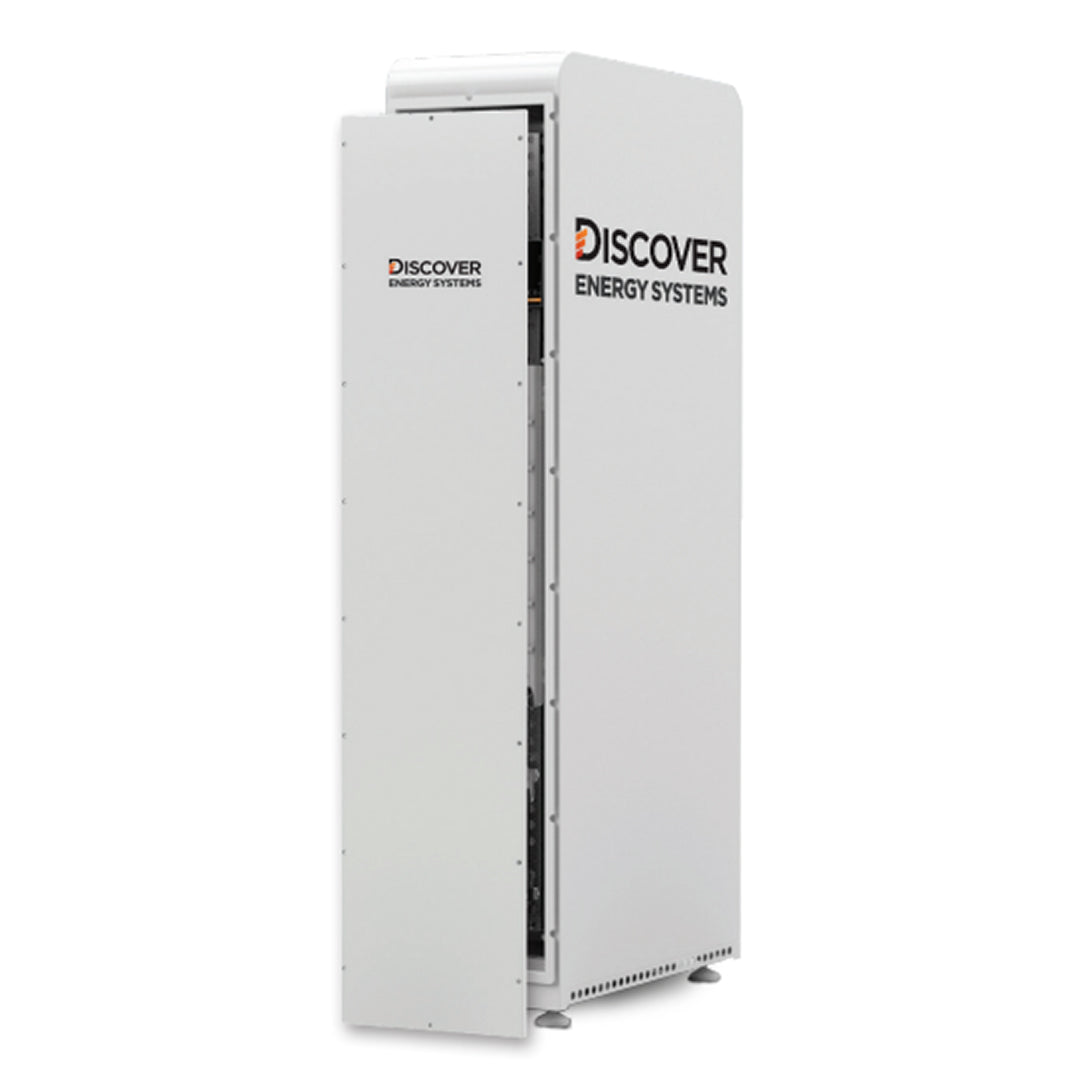

The Discover AES RACKMOUNT 30 kWh Slimline Enclosure is a compact, economical, and installer-friendly solution for housing Discover AES RACKMOUNT lithium battery systems. Designed for both indoor and outdoor installations, the IP54-rated enclosure delivers the smallest footprint available for 30 kWh of energy storage.

The enclosure is supplied pre-assembled with a heavy-duty 500 A DC busbar and battery cables fitted with Amphenol connectors, enabling fast and straightforward installation. For larger energy storage requirements, up to six slimline enclosures can be connected in parallel, delivering up to 180 kWh of total capacity.

Key Features

Compact & Scalable Design

• Single enclosure supports up to six AES RACKMOUNT battery modules
• Maximum capacity per enclosure: 30.7 kWh
• Parallel up to six enclosures for systems up to 180 kWh

Pre-Assembled & Installer Friendly

• Factory-installed 500 A DC busbar
• Battery cables included with Amphenol connectors
• Reduces installation time and on-site labour

Indoor & Outdoor Ready

• IP54-rated enclosure for dust and water resistance
• White, UV-rated powder-coated finish
• Suitable for residential, commercial, and industrial environments

System Integration

• Supports closed-loop communication when used with a LYNK II Gateway
• Optimised integration with compatible inverter-chargers

Construction & Security

• Removable front door with locking mechanism
• Robust steel enclosure design

Physical Specifications

• Weight: 80 kg (without batteries)
• Height (with footings): 1695.5 mm
• Width: 680 mm
• Depth: 350 mm
