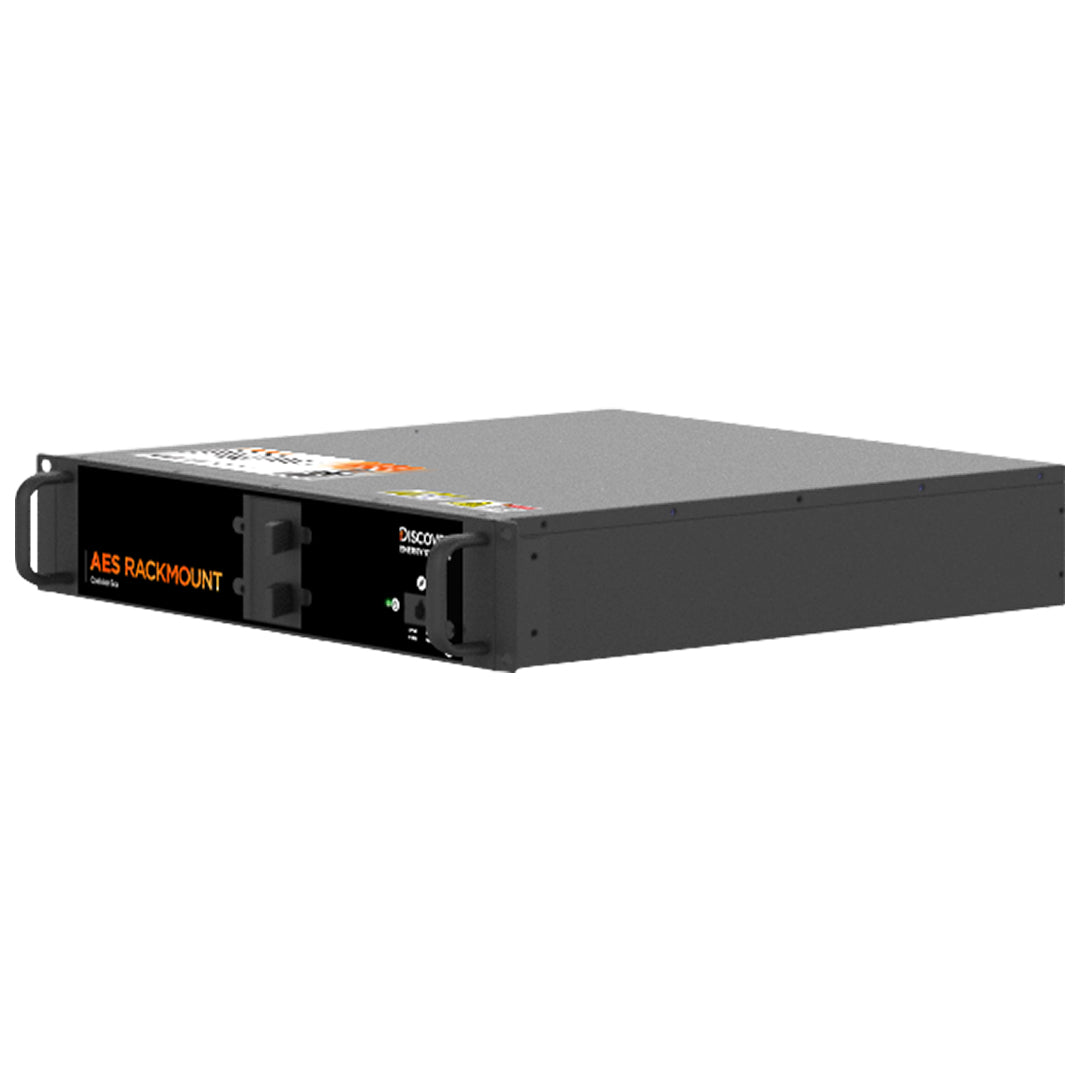

Discover AES RACKMOUNT Battery Combiner Module (6) - 950-0049-NB

Overview

LIMITED STOCK AVAILABLE AT THIS PRICE

The Discover AES RACKMOUNT Battery Combiner Module (6) – 950-0049 is designed to safely and efficiently connect up to six Discover AES RACKMOUNT Battery Modules in parallel. It is compatible with Discover RACKMOUNT Battery Modules 48-48-5120 (900-0062) and 48-48-5120-H (900-0067), forming a clean and scalable 48 V battery system.

Supplied fully assembled and rack-ready, the Battery Module Combiner simplifies installation while providing robust overcurrent protection, high current handling, and safe system isolation. It is an essential component for larger AES RACKMOUNT energy storage systems requiring parallel battery expansion.

Key Features

Parallel Battery Integration

• Connects up to six AES RACKMOUNT Battery Modules in parallel
• Includes six fused quick-connect battery cable sets
• Supports scalable, high-capacity energy storage systems

High Current & Safety Design

• Maximum DC battery current of 600 A
• Six battery cable fuses rated at 100 A, fast acting, 20 kAIC
• Two additional unpopulated DC fuse positions for DC loads

Installer-Friendly Rackmount Solution

• Fully assembled 19-inch rackmount enclosure
• 2U height for compact rack integration
• Single-button power off for safe and simple shutdown

Robust Construction

• Zinc-plated steel enclosure for durability
• IP20 rated for indoor installations
• Designed for professional energy storage environments
