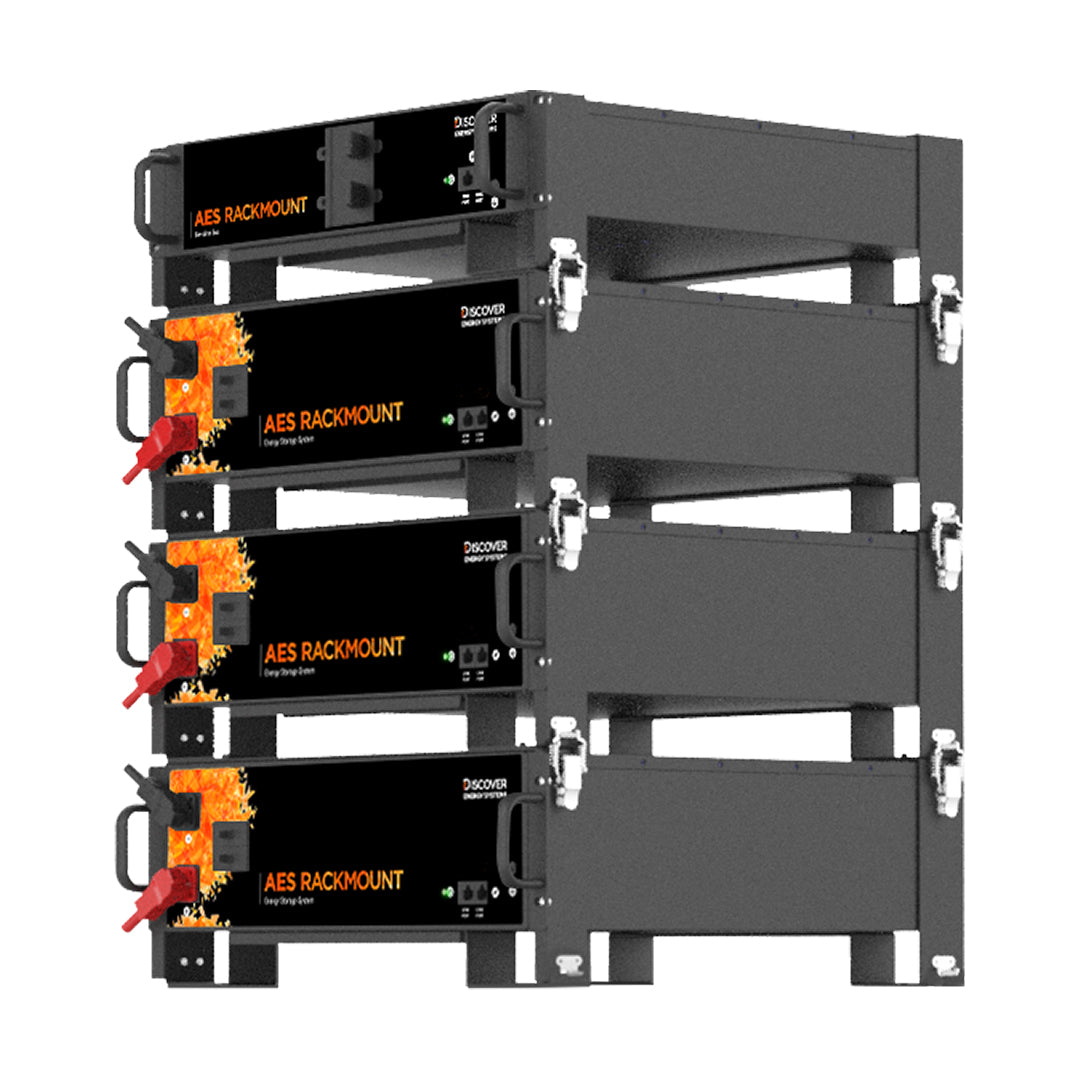

Discover AES RACKMOUNT Quick Stack Rack:
The AES RACKMOUNT Quick Stack Rack is designed for indoor use with AES RACKMOUNT Battery Modules and with the AES RACKMOUNT Battery Module Combiner to create an open stacking system containing up to six Battery Modules with one Battery Module Combiner. An open battery stacking system that is flexible, secure and sets up in only a couple of minutes.
Features:
- Stack Up to six Battery Modules and a Battery Module
Combiner
- Brackets Interlock Without Tools
- Facilitates Air Gap Between Batteries Reducing Heat Transfer
- Front End Bracket: Height: 179.0 mm, Width: 480.6 mm Depth: 53.0 mm
- Back End Bracket: Height: 179.0 mm, Width: 446.0 mm, Depth: 50.0 mm
- Side Arm Height: 30.0 mm, Length: 400.0 mm
- Environment : Indoors
Brochure:
https://discoverlithium.com/s4x_files/resources/808-0044-aes-rackmount-quick-stack-rack-data-sheet.pdf
Manual:
https://discoverlithium.com/s4x_files/resources/805-0056-aes-rackmount-quick-stack-rack-manual.pdf
