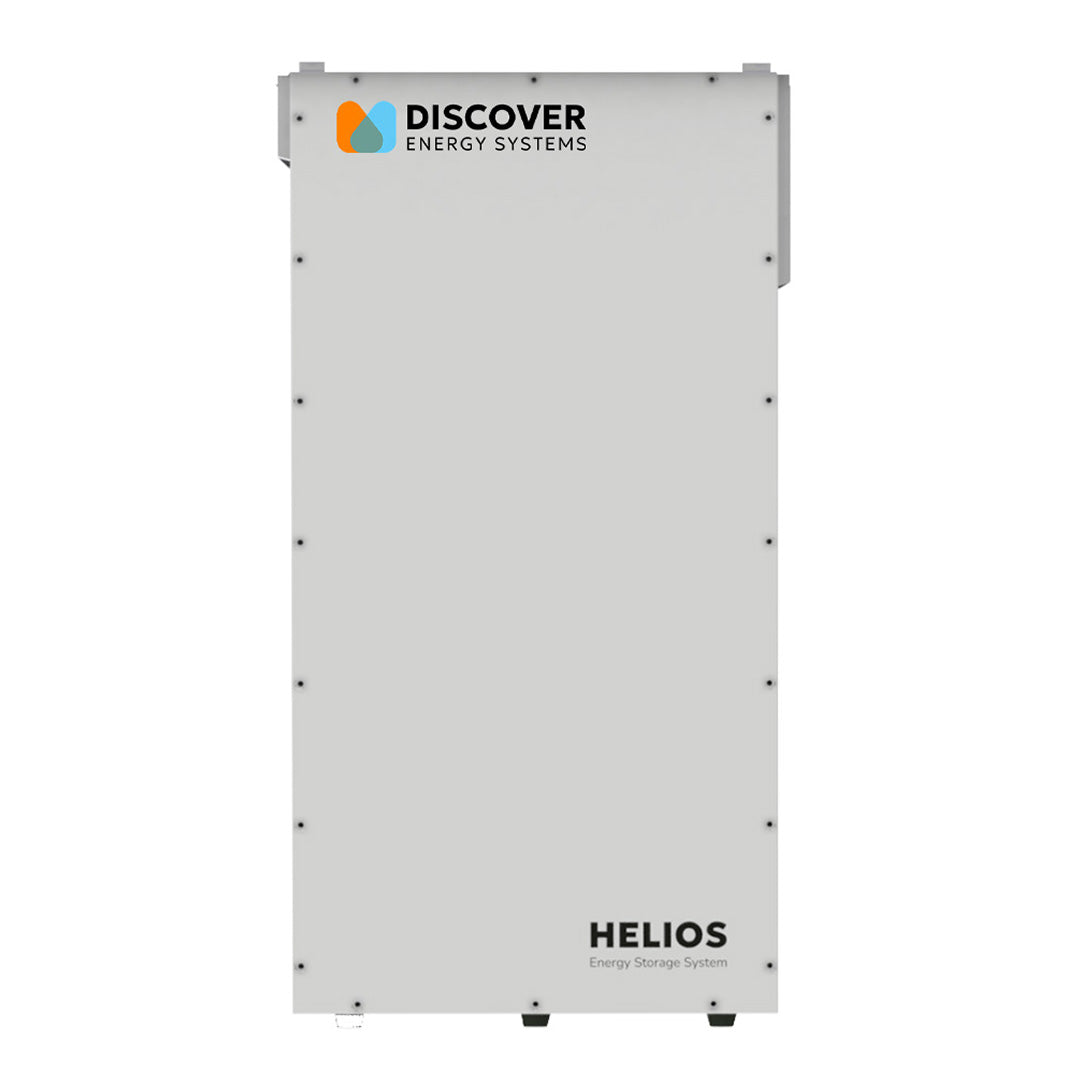

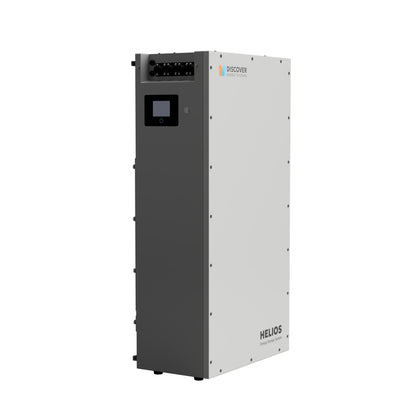

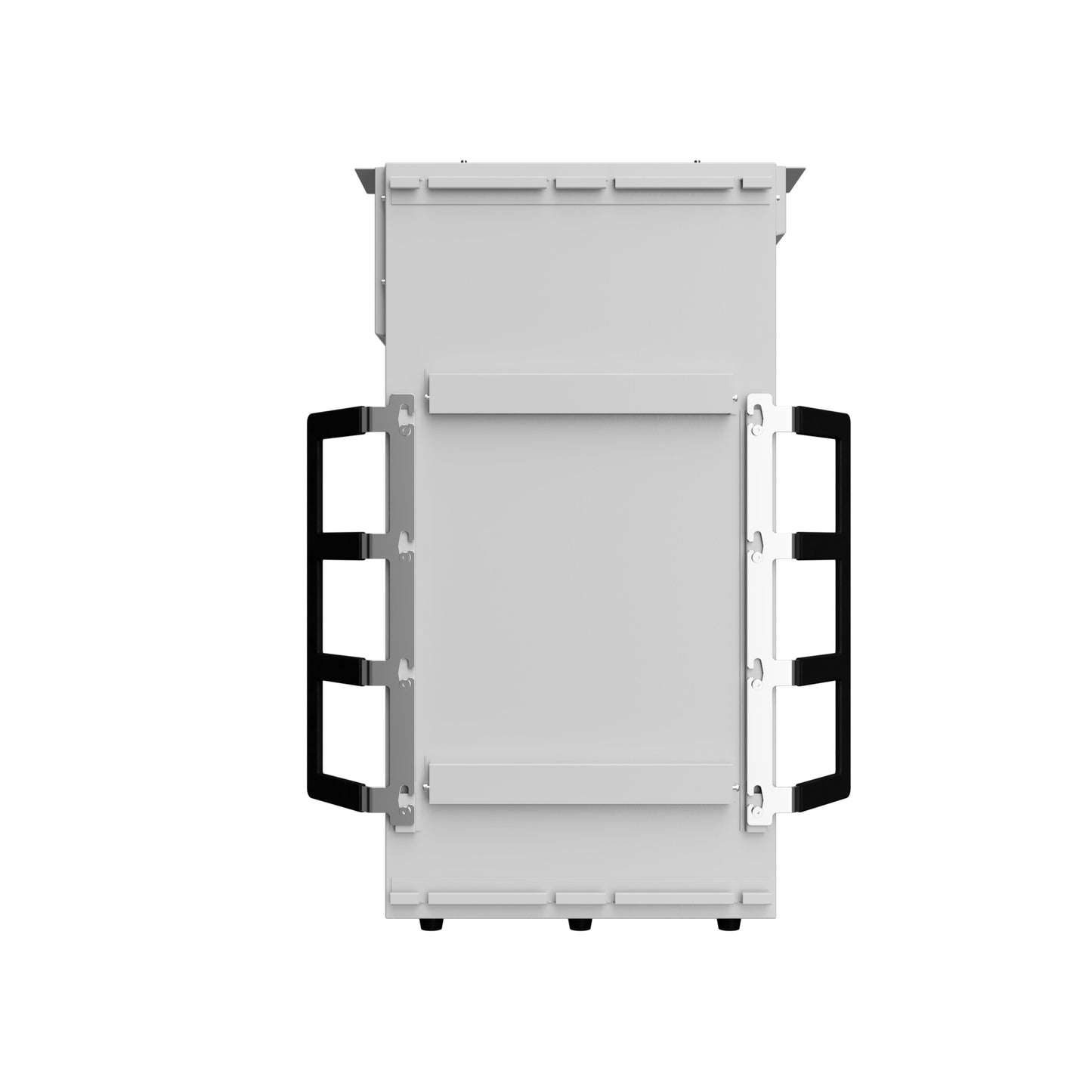

Discover Helios ESS 51.2V IP65 16kWh LiFePO4 Battery NS - 52-48-16000 - (900-0077)

Overview

The Discover Helios Energy Storage System (ESS) is a high-performance 16 kWh lithium iron phosphate (LiFePO₄) battery designed for off-grid, hybrid, commercial, and microgrid applications.

Built on Discover’s long-standing battery engineering heritage, Helios combines high power output, advanced safety systems, and closed-loop BMS communication to deliver predictable, long-term performance in real-world installations.

With an IP65 outdoor-rated enclosure, integrated cold-climate heating, and compatibility with leading inverter platforms, Helios is engineered for Australian conditions and demanding system designs — from whole-home backup through to multi-battery microgrids.

Where Helios Fits Best

Helios ESS is suited to projects where power delivery, system control, and long-term reliability matter, including:

• Off-grid residential systems
• Whole-home backup solutions
• Commercial and industrial energy storage
• Remote and microgrid applications
• Hybrid systems requiring closed-loop control

Key Benefits

High Power, Real-World Performance

• 16 kWh usable capacity per module
• 10 kW continuous output
• Up to 19 kW peak power (10 seconds)
• High continuous charge and discharge current for demanding loads

Designed to support high surge requirements and dynamic load profiles often seen in off-grid and hybrid systems.

Advanced BMS & Closed-Loop Communication

• 4th-generation Battery Management System (BMS)
• Supports closed-loop communication with major inverter platforms
• Enables accurate charge control, current limiting, and state-of-charge reporting
• Improves system efficiency and extends battery life

Closed-loop operation ensures the inverter follows the battery’s limits — not the other way around.

Built for Australian Conditions

• IP65-rated stainless steel enclosure for outdoor installation
• Integrated 250 W self-heating system
• Reliable operation down to -25 °C
• Designed for harsh, remote, and exposed environments

Safety First by Design

• Comprehensive over-voltage, over-current, and thermal protection
• Dual internal fire arrestors
• Emergency stop input for Rapid Shutdown (RSD) integration
• Designed to meet modern safety and compliance expectations

Scalable & System-Ready

• Parallel up to 36 modules (up to 579.6 kWh) with closed-loop communication
• Battery-to-battery parallel cabling available
• Supports expansion as system requirements grow

Inverter Compatibility

Helios ESS is compatible with a wide range of 48 V inverter-chargers and solar charge controllers, supporting both:

• Closed-loop communication (via CAN)
• Open-loop operation where required

Commonly deployed with platforms such as:

• Victron Energy
• Selectronic
• Deye / Noark

(Exact configuration depends on inverter model and firmware.)

Included & Optional Accessories

Available accessories include:

• Battery-to-battery parallel cable sets
• Battery-to-inverter cable sets (various gauges)
• LYNK II Gateway (for advanced communication and monitoring)
• Lift handle sets for safe installation

(Accessory selection depends on system design and inverter platform.)

Why Choose Helios from DPA?

DPA supports Helios ESS as part of a system-first approach, helping installers:

• Select the right inverter-battery pairing
• Configure closed-loop communication correctly
• Avoid commissioning issues and rework
• Build systems that perform predictably over time

If you’re designing an off-grid, hybrid, or commercial system and want one battery platform that works across multiple inverter ecosystems, Helios is a strong, proven option.
