6x Discover AES RACKMOUNT 51.2V 5.12kWh LiFePO4 Battery (Heated) + 1x Discover AES RACKMOUNT 30kWh Slimline IP54 Enclosure

6x Discover AES RACKMOUNT 51.2V 5.12kWh LiFePO4 Battery (Heated) + 1x Discover AES RACKMOUNT 30kWh Slimline IP54 Enclosure

Please sign in to see pricing
  • 30.72 kWh total storage – 6 × 5.12 kWh Discover AES RACKMOUNT heated LiFePO₄ batteries
  • Heated battery modules – BMS-managed heat mat for cold climate operation
  • Slimline IP54 enclosure – compact indoor or outdoor installation
  • High-current GEN-4 BMS – 1C charge/discharge with up to 2.2C peak surge
  • Closed-loop ready – integrate with inverters via Discover LYNK II
  • Scalable system – parallel up to 180 kWh
View full details
  • Description

Description

Overview

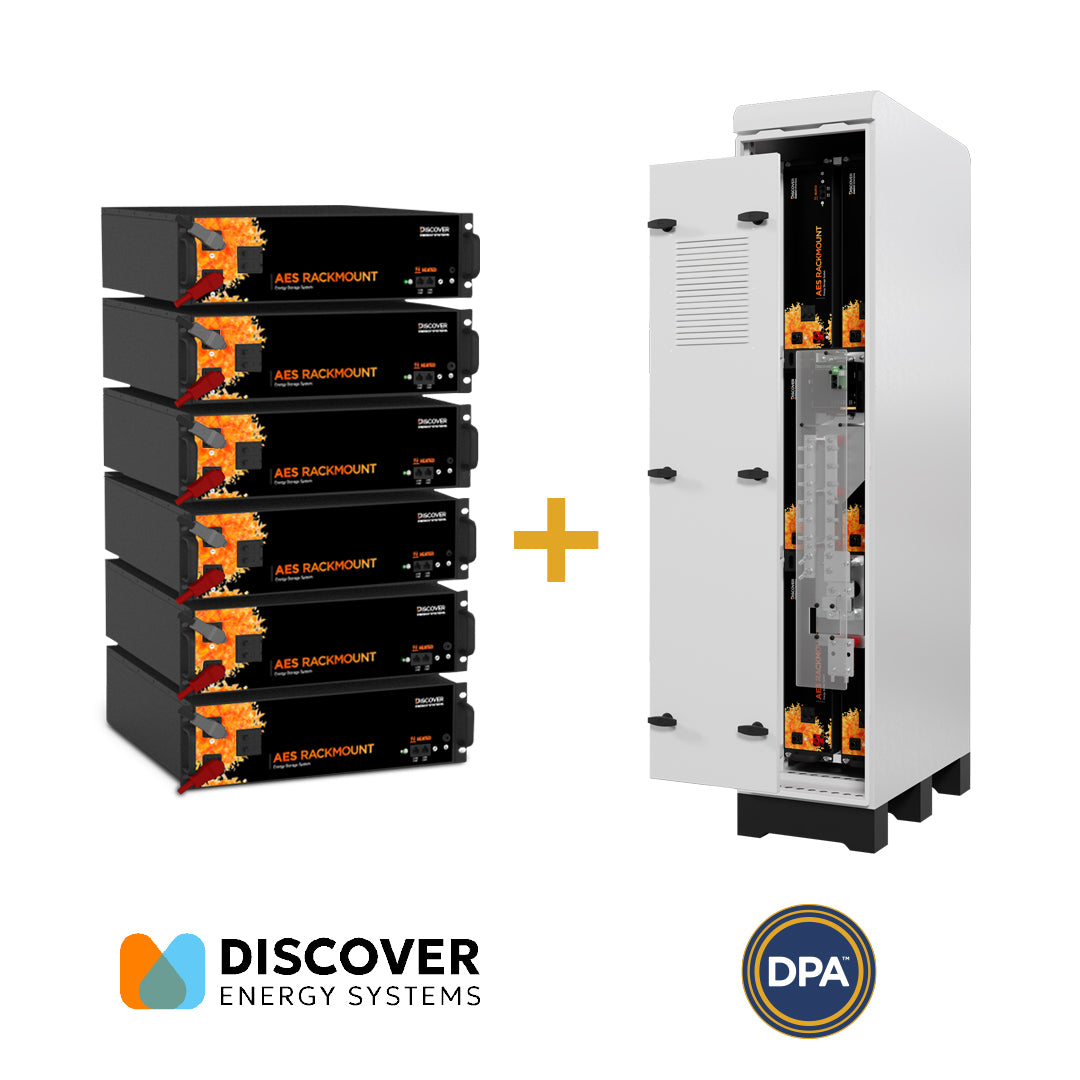

6 × Discover AES RACKMOUNT 48-48-5120-H Heated Battery Modules installed within a Discover AES RACKMOUNT 30 kWh Slimline IP54 Enclosure deliver a high-performance lithium energy storage solution with approximately 30.72 kWh of total capacity.

Designed for Residential Off-Grid Solar, Whole-Home Backup Power and Microgrids, this rapidly deployable rackmount system combines cobalt-free LiFePO₄ chemistry, a high-current GEN-4 BMS, and optional closed-loop communication via the LYNK II Gateway. The Slimline enclosure offers one of the smallest footprints available for 30 kWh of energy storage and is suitable for indoor or outdoor installations.

Key Features

Discover AES RACKMOUNT 48-48-5120-H Heated Battery Modules

  • 51.2 V, 5.12 kWh LiFePO₄ per module (×6 included)
  • Total system capacity: approximately 30.72 kWh
  • Cobalt-free LiFePO₄ cells for safety and long life
  • GEN-4 high-current BMS
  • Up to 1C continuous charge/discharge rate
  • Up to 2.2C peak surge power
  • Up to 98% round-trip efficiency
  • BMS-managed integrated heater mat (-17°C to 8°C operation support)
  • LYNK PORT for multi-battery communication

AES RACKMOUNT 30 kWh Slimline IP54 Enclosure

  • Indoor / Outdoor IP54 rated
  • Pre-assembled 500 A DC busbar
  • Battery cables included with Amphenol connectors
  • Supports up to six battery modules (30.7 kWh max per enclosure)
  • Parallel up to six Slimline enclosures (up to 180 kWh)
  • White UV-rated powder-coated finish
  • Removable locking door
  • Dimensions: 1695.5 mm (H with footings) × 680 mm (W) × 350 mm (D)
  • Weight: 80 kg (without batteries)

Performance & Benefits

  • Up to 100% usable capacity
  • Up to 10× the life of traditional lead-acid batteries
  • Up to 50% higher efficiency than lead-acid systems
  • Dynamic charge optimisation via LYNK II
  • Parallel scalability with linear charge and discharge scaling

Certifications & Compliance

  • IEC 62619
  • UL 1973
  • CE
  • UN 38.3
  • UN 3480 Class 9

Approvals & Compliance

  • Certified to international lithium battery safety standards
  • Designed for residential and commercial energy storage systems
  • Compatible with approved inverter models (see compatibility guide)

Warranty & Support

  • 5-year standard warranty
  • Upgrade to 10-year full replacement warranty (registration required)
  • 30 MWh Energy Throughput Performance Guarantee
  • Warranty Registration: Register Here
