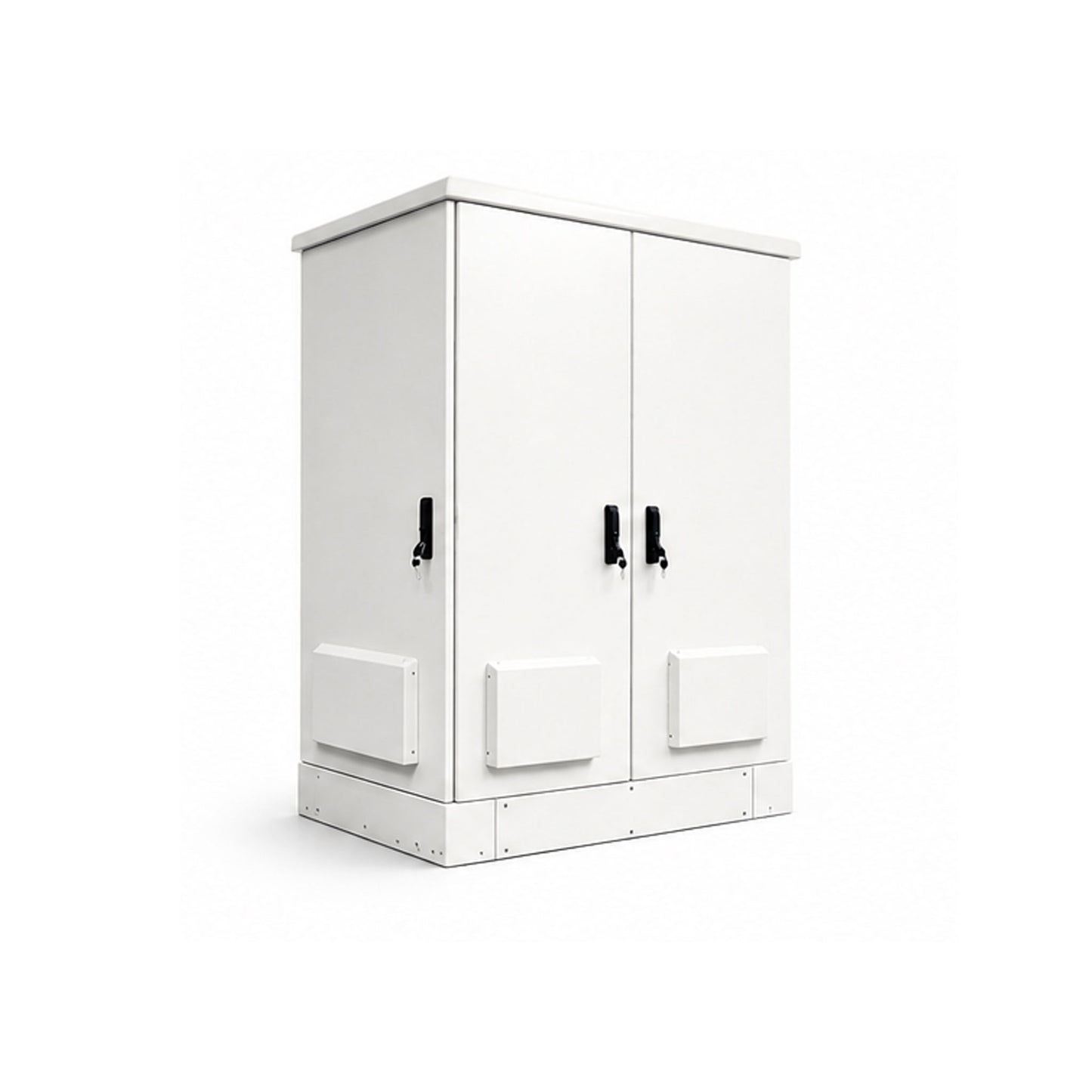

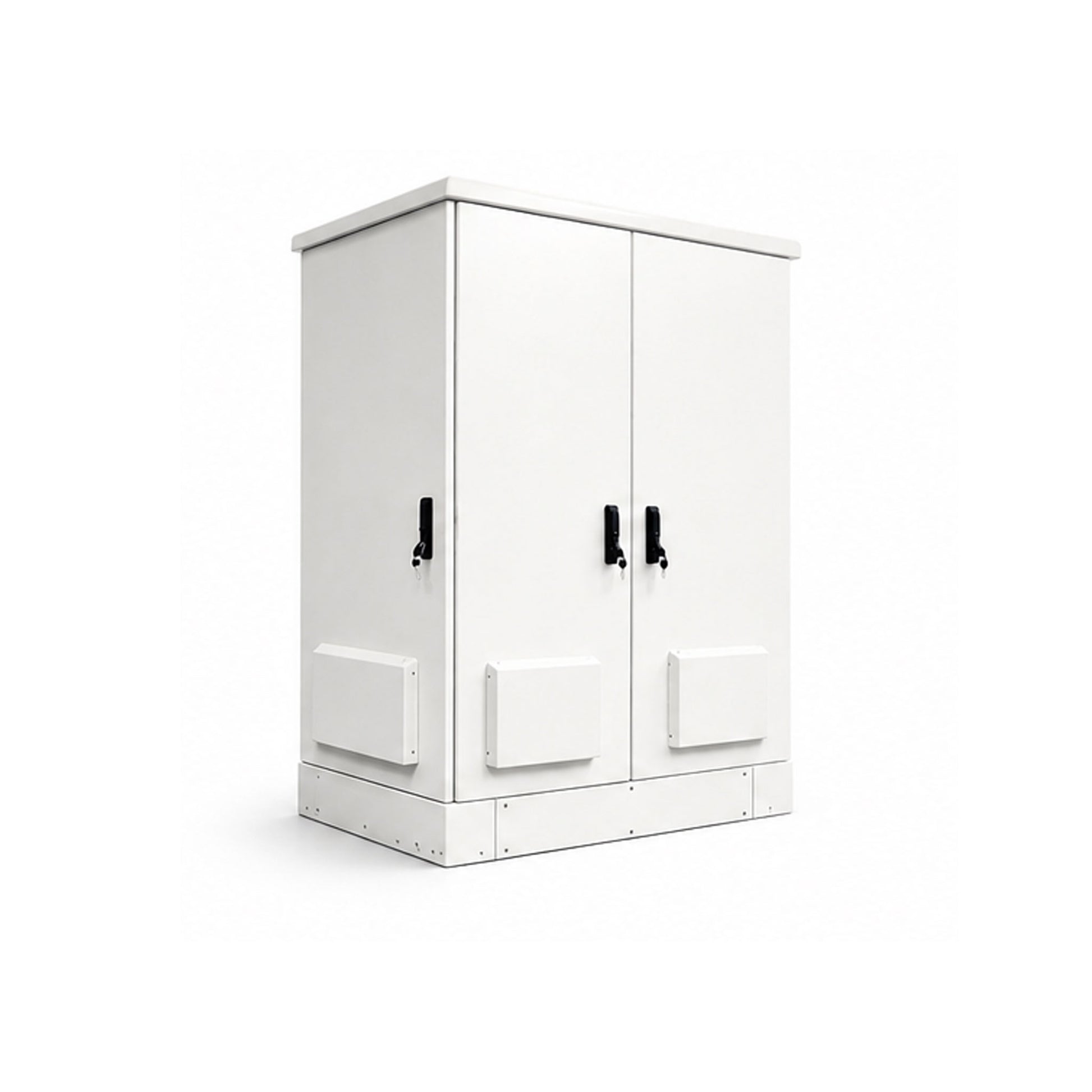

DPA ESSential 10 | Deye Single Phase | 2 Bay Cabinet
DPA ESSential 10 | Deye Single Phase | 2 Bay Cabinet
Please sign in to see pricing
Description
Overview
The DPA ESSential 10 | Deye Single Phase 10kW is a complete single-phase energy storage system designed for projects that want integrated solar, battery storage, and backup capability in one cabinet-based platform. Built around the Deye 10K-SG02LP1-AU hybrid inverter, it combines inverter performance, battery storage, and cabinet integration in a practical all-in-one solution.
Based on the supplied DPA datasheet, this model offers 25.6 kWh standard storage capacity, up to 15,000 W maximum PV input power, and a durable IP55-rated enclosure for tidy installed outcomes.
Key Features
Integrated Single-Phase Hybrid System
- Rated input/output power of 10,000 W
- Surge capability of 2 x rated power for 10 seconds
- Uses Deye hybrid inverter model Deye 10K-SG02LP1-AU
Solar Input & Energy Control
- Maximum PV input power of 15,000 W
- Maximum PV input voltage of 500 V
- Operating PV voltage range of 150 V to 425 V
- 3 MPPT trackers
- Maximum PV input current listed as 26 A + 26 A + 26 A
Battery Configuration
- Standard battery configuration of 25.6 kWh
- Minimum battery configuration of 15.36 kWh
- Maximum battery configuration of 51.2 kWh
- LiFePO4 battery chemistry using Discover 48-48-5120-H (48 V 5.1 kWh)
- Standard configuration uses 5 batteries per Solar Core
Cabinet & Installation Practicalities
- 2 (grid and generator or AC-coupled solar)
- Maximum AC-coupled inverter limit of 10,000 W
- Maximum battery charge current of 220 A
- Steel cabinet construction with IP55 protection rating
- Cabinet dimensions of 1200 x 830 x 1970 mm
- Approximate weight of 310 kg without batteries
Approvals & Compliance
- IP55 enclosure rating listed in the supplied datasheet
- No additional approvals or compliance certifications were specified in the supplied datasheet
Warranty & Support
- Warranty terms were not specified in the supplied datasheet
- Confirm final warranty coverage and support conditions with the seller or distributor before purchase
Specifications
| System Rating | 10kW |
|---|---|
| Phase | Single Phase |
| Hybrid Inverter Model | Deye 10K-SG02LP1-AU |
| Rated Input/Output Power | 10000W |
| Surge Power | 2 x Rated Power For 10 Seconds |
| Maximum PV Input Power | 15000W |
| Maximum PV Input Voltage | 500V |
| Operating Voltage Range | 150V-425V |
| Maximum PV Input Current | 26 + 26 + 26 A |
| Number Of Trackers | 3 |
| AC Coupled Solar | Optional |
| Maximum AC Coupled Inverter Limit | 10000W |
| Number Of AC Inputs | 2 (Grid & Gen Or AC Coupled Solar) |
| Maximum Battery Charge Current | 220A |
| AC Input Voltage Range | 204V - 264V |
| Input Frequency | 50Hz (Range Of 45Hz-55Hz) |
| Battery Model | Discover 48-48-5120-H (48V 5.1kWh) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Standard Battery Configuration (With ZYC Simpo 5000) | 25.6kWh |
| Minimum Battery Configuration (With ZYC Simpo 5000) | 15.36kWh |
| Maximum Battery Configuration (With ZYC Simpo 5000) | 51.2kWh |
| Standard Number Of Batteries Per Solar Core | 5 |
| Battery Communication | CANbus / AEBus |
| Cabinet Material | Steel |
| IP Rating | IP55 |
| Cooling Method | Fan Cooled (Optional 500W A/C) |
| Dimensions (L x W x H) | 1200 x 830 x 1970 mm |
| Approximate Weight (Without Batteries) | 310kg |
