DPA Essential 15kVA | Victron Single Phase | 3 Bay Cabinet

Quick Feature Highlights

• 15 kVA Victron ESS platform - single-phase integrated storage solution built around Victron inverter-charger hardware
• Strong usable output - nominal output of 12,000 W at 25 degrees C
• Flexible battery capacity - standard configuration of 51.2 kWh, with options from 20.48 kWh to 51.2 kWh
• Victron solar control - Victron SmartSolar 450/200 with up to 10,900 W PV input power
• Peak inverter performance - peak power of 27,000 W
• Protected enclosure - IP55-rated system with 500 W air conditioning

Overview

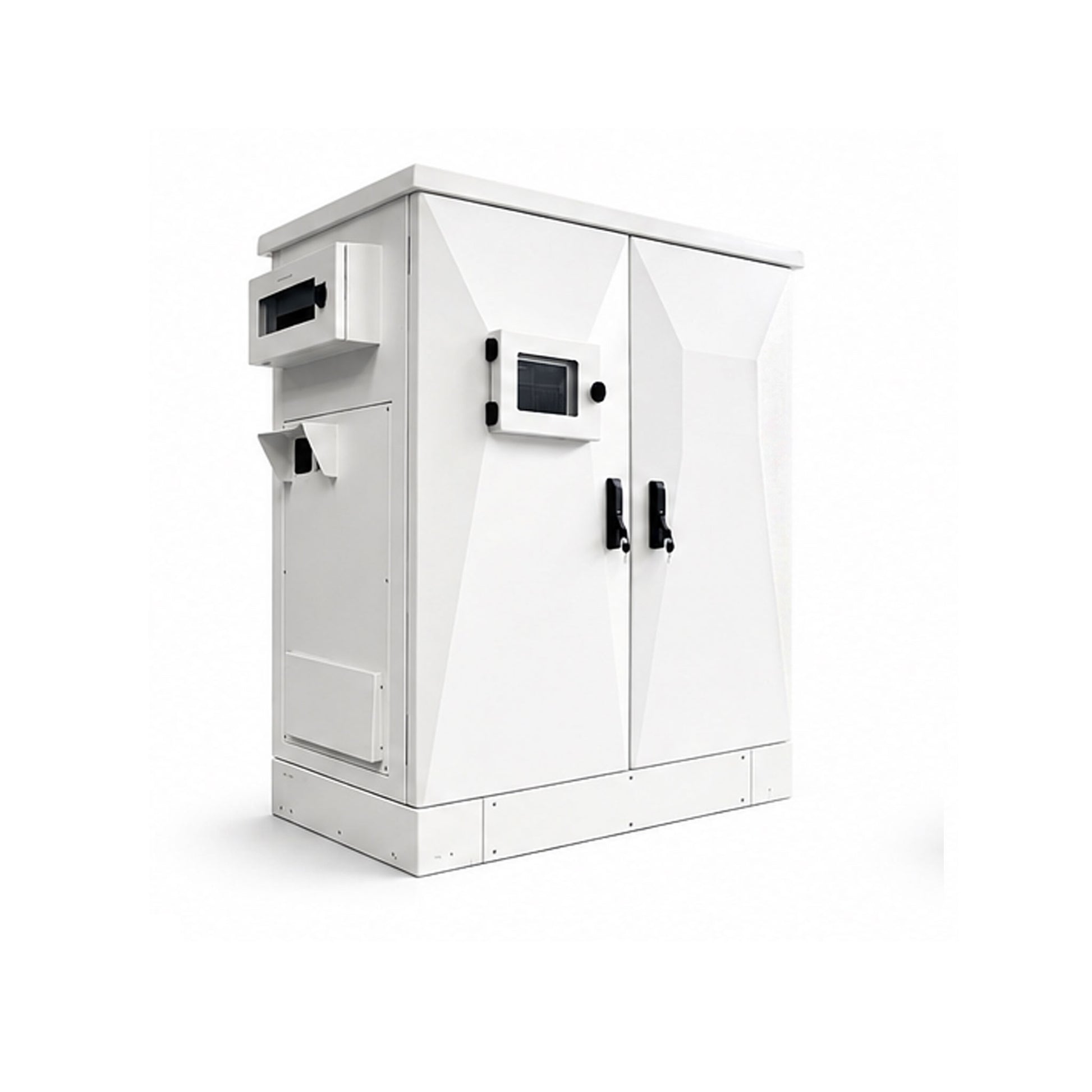

The DPA Essential 15kVA | Victron Single Phase | 3 Bay Cabinet is a complete single-phase Victron-based energy storage system designed for solar self-consumption, backup support, and integrated power management in a cabinet-based energy storage system. It is built around the Victron MultiPlus-II 48/15000 and matched with Victron SmartSolar charge control and lithium battery storage.

Based on the supplied DPA datasheet, this model delivers nominal output of 12,000 W at 25 degrees C, with a standard storage configuration of 51.2 kWh and an IP55-rated enclosure for practical installed use.

Key Features

Victron Inverter-Charger Performance

• Built around Victron MultiPlus-II 48/15000
• Nominal output of 12,000 W at 25 degrees C, 10,000 W at 40 degrees C, and 7,000 W at 65 degrees C
• Peak power of 27,000 W
• 1 AC input with battery charge current up to 200 A

Solar Input & AC Coupling Flexibility

• DC solar controller model Victron SmartSolar 450/200
• Maximum PV input power of 10,900 W
• Maximum PV input voltage of 450 V and operating range of 65 V to 450 V
• 4 with maximum PV input current of 16 A per tracker
• AC-coupled solar optional, with maximum AC-coupled inverter limit of 15 kW

Battery & Cabinet Configuration

• Standard battery configuration of 51.2 kWh
• Minimum battery configuration of 20.48 kWh and maximum configuration of 51.2 kWh
• LiFePO4 battery platform using Discover 48-48-5120-H (48 V 5.1 kWh)
• Standard configuration uses 10 batteries per Solar Core
• Approximate cabinet weight of 490 kg without batteries

Approvals & Compliance

• IP55 enclosure rating listed in the supplied datasheet
• No additional approvals or compliance certifications were specified in the supplied datasheet

Warranty & Support

• Warranty terms were not specified in the supplied datasheet
• Confirm final warranty coverage and support conditions with the seller or distributor before purchase

Downloads

• Datasheet - DPA Essential Series 2 Victron Single Phase
