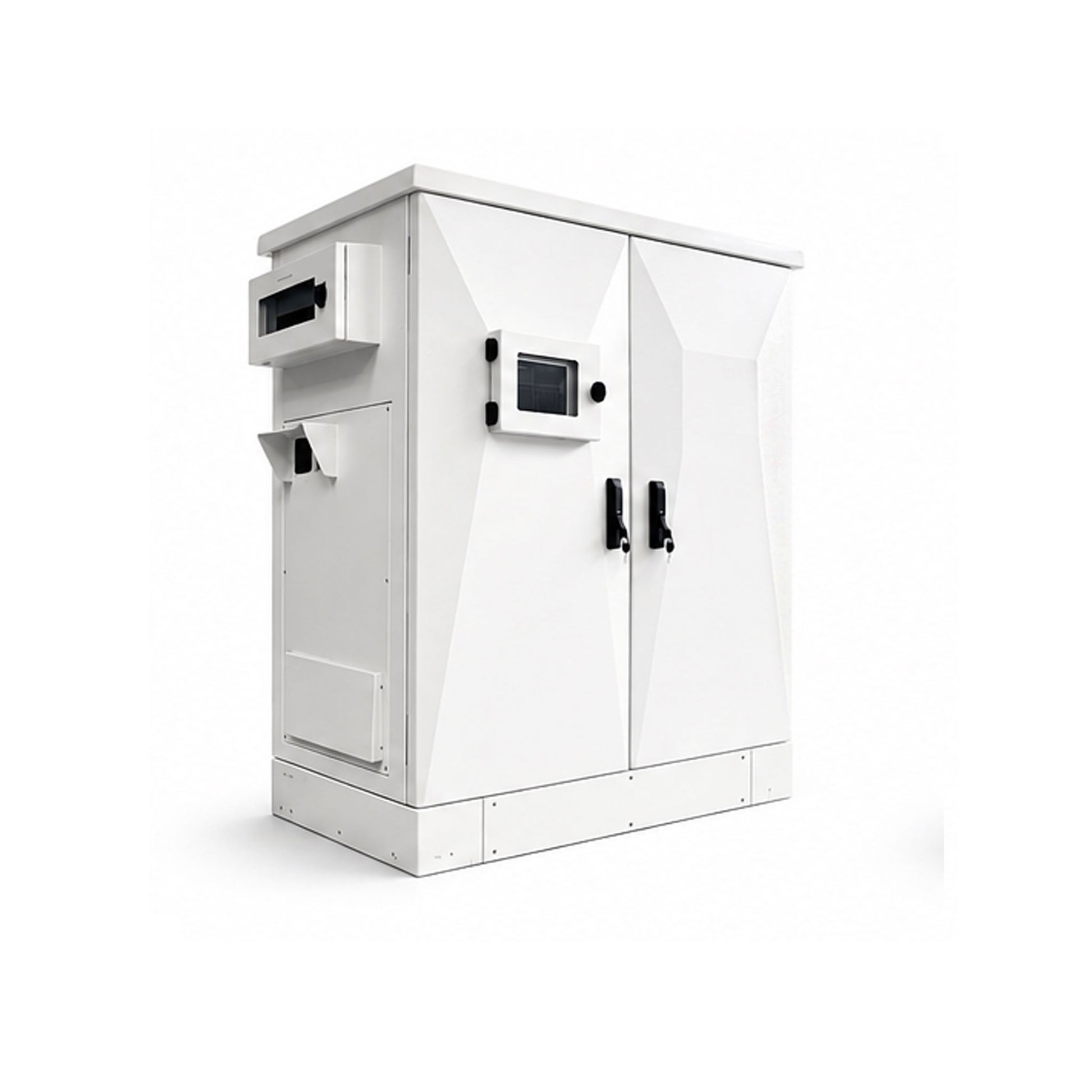

DPA ESSential 20 | Victron | 3 Bay Cabinet
DPA ESSential 20 | Victron | 3 Bay Cabinet
Please sign in to see pricing
Description
Overview
The DPA ESSential 20 | Victron Single Phase 20kVA is a complete single-phase Victron-based energy storage system designed for solar self-consumption, backup support, and integrated power management in a cabinet-based energy storage system. It is built around the 2 x Victron MultiPlus-II 48/10000 and matched with Victron SmartSolar charge control and lithium battery storage.
Based on the supplied DPA datasheet, this model delivers nominal output of 16,000 W at 25 degrees C, with a standard storage configuration of 51.2 kWh and an IP55-rated enclosure for practical installed use.
Key Features
Victron Inverter-Charger Performance
- Built around 2 x Victron MultiPlus-II 48/10000
- Nominal output of 16,000 W at 25 degrees C, 14,000 W at 40 degrees C, and 12,000 W at 65 degrees C
- Peak power of 36,000 W
- 1 AC input with battery charge current up to 280 A
Solar Input & AC Coupling Flexibility
- DC solar controller model Victron SmartSolar 450/200
- Maximum PV input power of 10,900 W
- Maximum PV input voltage of 450 V and operating range of 65 V to 450 V
- 4 with maximum PV input current of 16 A per tracker
- AC-coupled solar 8 kW Fronius, with maximum AC-coupled inverter limit of 20 kW
Battery & Cabinet Configuration
- Standard battery configuration of 51.2 kWh
- Minimum battery configuration of 30.72 kWh and maximum configuration of 71.6 kWh
- LiFePO4 battery platform using Discover 48-48-5120-H (48 V 5.1 kWh)
- Standard configuration uses 10 batteries per Solar Core
- Approximate cabinet weight of 650 kg without batteries
Approvals & Compliance
- IP55 enclosure rating listed in the supplied datasheet
- No additional approvals or compliance certifications were specified in the supplied datasheet
Warranty & Support
- Warranty terms were not specified in the supplied datasheet
- Confirm final warranty coverage and support conditions with the seller or distributor before purchase
Specifications
| System Rating | 20kVA |
|---|---|
| Phase | Single Phase |
| Inverter Charger Model (Victron MultiPlus-II) | 2 x 48/10000 |
| Nominal Output Power @ 25 Degrees | 16000W |
| Nominal Output Power @ 40 Degrees | 14000W |
| Nominal Output Power @ 65 Degrees | 12000W |
| Peak Power | 36000W |
| Number Of AC Inputs | 1 |
| Maximum Battery Charge Current | 280A |
| AC Input Voltage Range | 187 - 265VAC |
| Input Frequency | 45 - 65Hz |
| DC MPPT Solar Controller Model (Victron SmartSolar) | 450/200 |
| Maximum PV Input Power @ 54.5V | 10900W |
| Maximum PV Input Voltage @ 54.5V | 450V |
| Operating Voltage Range | 65-450V |
| Maximum PV Input Current | 16A Per Tracker |
| Maximum PV Short-circuit Current | 20A Per Tracker |
| Number Of Trackers | 4 |
| AC Coupled Solar | 8kW Fronius |
| Maximum AC Coupled Inverter Limit | 20kW |
| Battery Model | Discover 48-48-5120-H (48V 5.1kWh) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Standard Battery Configuration (With ZYC Simpo 5000) | 51.2kWh |
| Minimum Battery Configuration (With ZYC Simpo 5000) | 30.72kWh |
| Maximum Battery Configuration (With ZYC Simpo 5000) | 71.6kWh |
| Standard Number Of Batteries Per Solar Core | 10 |
| Battery Communication | CANbus / AEBus |
| Cabinet Material | Steel |
| IP Rating | IP55 |
| Cooling Method | 1500W A/C |
| Dimensions (L x W x H) | 2060 x 830 x 2160 mm |
| Approximate Weight (Without Batteries) | 650kg |
