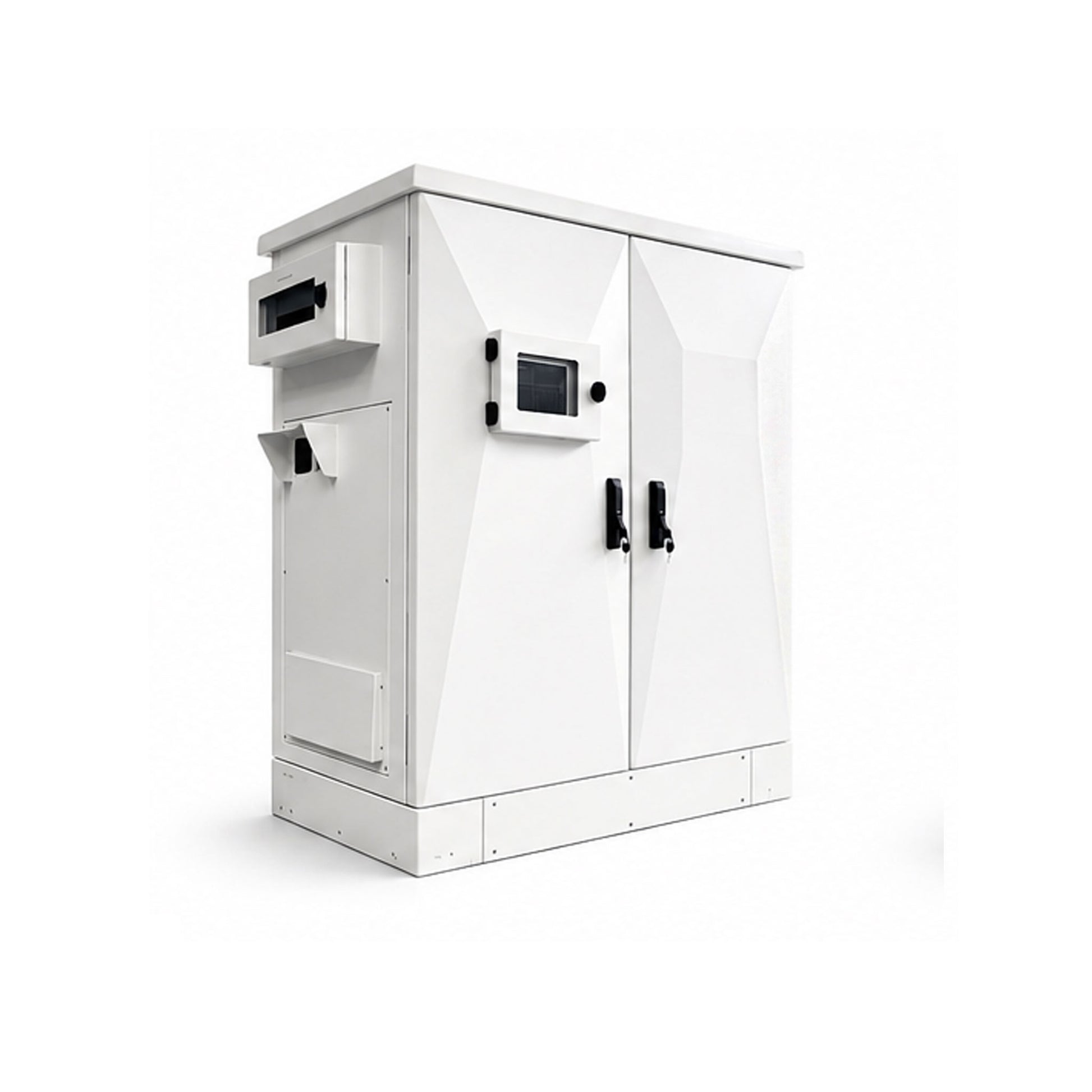

DPA Essential 5kVA | Victron Single Phase | 2 Bay Cabinet Aluminium

Quick Feature Highlights

• 5 kVA Victron ESS platform - single-phase integrated storage solution built around Victron inverter-charger hardware
• Strong usable output - nominal output of 4,000 W at 25 degrees C
• Flexible battery capacity - standard configuration of 15.36 kWh, with options from 10.24 kWh to 35.84 kWh
• Victron solar control - Victron SmartSolar 450/100 with up to 5,450 W PV input power
• Peak inverter performance - peak power of 9,000 W
• Protected enclosure - IP55-rated system with fan cooled with optional 500 W air conditioning

Overview

The DPA Essential 5kVA | Victron Single Phase | 2 Bay Cabinet Aluminium is a complete single-phase Victron-based energy storage system designed for solar self-consumption, backup support, and integrated power management in a aluminium cabinet version. It is built around the Victron MultiPlus-II 48/5000 and matched with Victron SmartSolar charge control and lithium battery storage.

Based on the supplied DPA datasheet, this model delivers nominal output of 4,000 W at 25 degrees C, with a standard storage configuration of 15.36 kWh and an IP55-rated enclosure for practical installed use.

Key Features

Victron Inverter-Charger Performance

• Built around Victron MultiPlus-II 48/5000
• Nominal output of 4,000 W at 25 degrees C, 3,700 W at 40 degrees C, and 3,000 W at 65 degrees C
• Peak power of 9,000 W
• 1 AC input with battery charge current up to 70 A

Solar Input & AC Coupling Flexibility

• DC solar controller model Victron SmartSolar 450/100
• Maximum PV input power of 5,450 W
• Maximum PV input voltage of 450 V and operating range of 65 V to 450 V
• 2 with maximum PV input current of 16 A per tracker
• AC-coupled solar optional, with maximum AC-coupled inverter limit of 5 kW

Battery & Cabinet Configuration

• Standard battery configuration of 15.36 kWh
• Minimum battery configuration of 10.24 kWh and maximum configuration of 35.84 kWh
• LiFePO4 battery platform using Discover 48-48-5120-H (48 V 5.1 kWh)
• Standard configuration uses 3 batteries per Solar Core
• Approximate cabinet weight of 245 kg without batteries

Approvals & Compliance

• IP55 enclosure rating listed in the supplied datasheet
• No additional approvals or compliance certifications were specified in the supplied datasheet

Warranty & Support

• Warranty terms were not specified in the supplied datasheet
• Confirm final warranty coverage and support conditions with the seller or distributor before purchase

Downloads

• Datasheet - DPA Essential Series 2 Victron Single Phase
