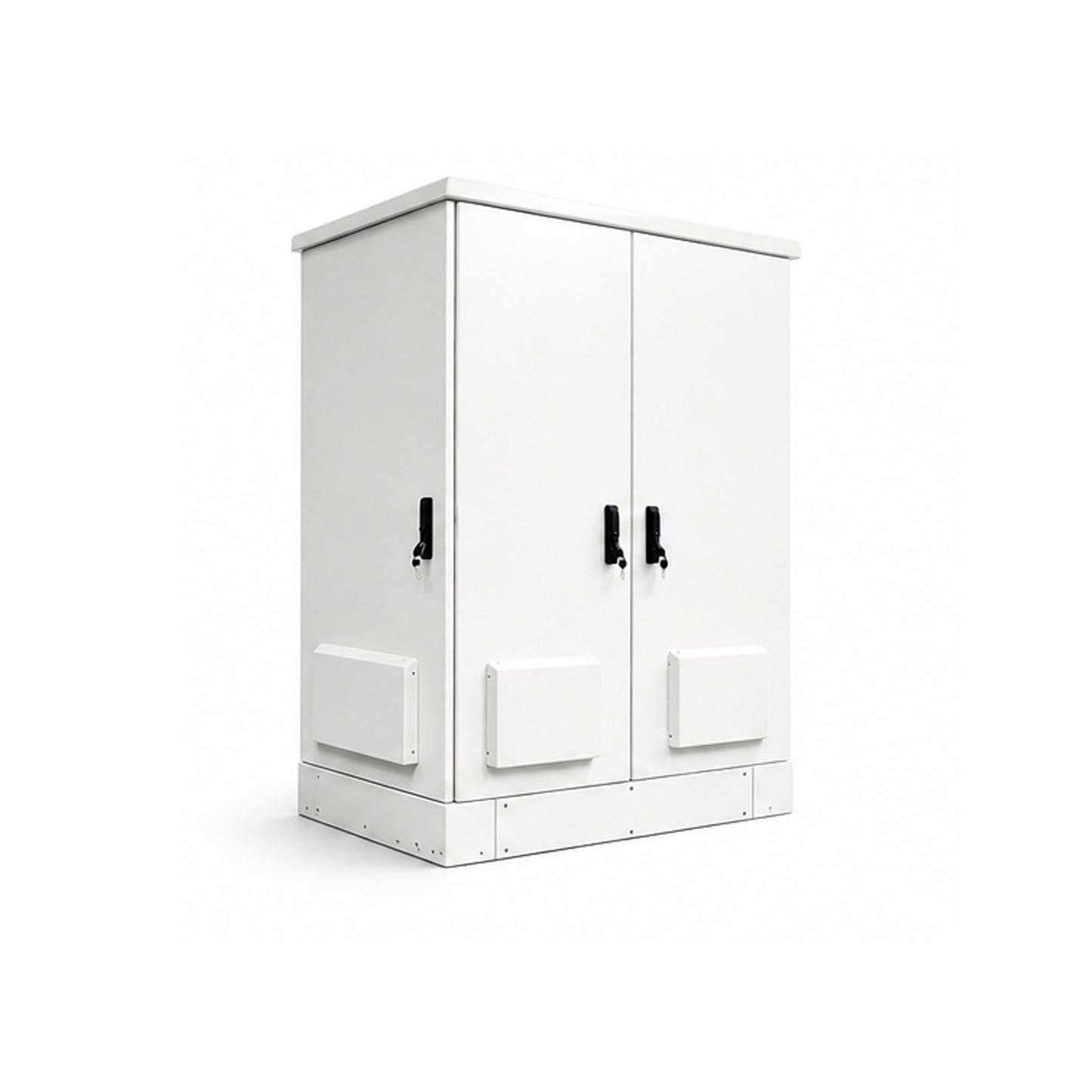

DPA Essential 5kW | Deye Single Phase | 2 Bay Cabinet | D+

Quick Feature Highlights

• 5 kW single-phase ESS output - complete Deye-based cabinet energy storage system
• 2 bay cabinet platform - integrated cabinet format for residential or light commercial installation
• Flexible battery capacity - standard configuration of 15.36 kWh, scalable from 5.12 kWh to 51.2 kWh
• Strong solar input support - up to 7,500 W maximum PV input power
• Backup-ready surge capability - 2 x rated power for 10 seconds
• Outdoor-capable enclosure - IP55 steel cabinet with fan cooled with optional 500 W air conditioning

Overview

The DPA Essential 5kW | Deye Single Phase | 2 Bay Cabinet | D+ is a complete single-phase energy storage system designed for projects that want integrated solar, battery storage, and backup capability in one cabinet-based platform. Built around the Deye 5K-SG04LP1-AU hybrid inverter, it combines inverter performance, battery storage, and cabinet integration in a practical all-in-one solution.

Based on the supplied DPA datasheet, this model offers 15.36 kWh standard storage capacity, up to 7,500 W maximum PV input power, and a durable IP55-rated enclosure for tidy installed outcomes.

Key Features

Integrated Single-Phase Hybrid System

• Rated input/output power of 5,000 W
• Surge capability of 2 x rated power for 10 seconds
• Uses Deye hybrid inverter model Deye 5K-SG04LP1-AU

Solar Input & Energy Control

• Maximum PV input power of 7,500 W
• Maximum PV input voltage of 500 V
• Operating PV voltage range of 150 V to 425 V
• 2 MPPT trackers
• Maximum PV input current listed as 13 A + 13 A

Battery Configuration

• Standard battery configuration of 15.36 kWh
• Minimum battery configuration of 5.12 kWh
• Maximum battery configuration of 51.2 kWh
• LiFePO4 battery chemistry using Discover 48-48-5120-H (48 V 5.1 kWh)
• Standard configuration uses 3 batteries per Solar Core

Cabinet & Installation Practicalities

• 2 (grid and generator or AC-coupled solar)
• Maximum AC-coupled inverter limit of 5,000 W
• Maximum battery charge current of 120 A
• Steel cabinet construction with IP55 protection rating
• Cabinet dimensions of 1200 x 830 x 1970 mm
• Approximate weight of 295 kg without batteries

Approvals & Compliance

• IP55 enclosure rating listed in the supplied datasheet
• No additional approvals or compliance certifications were specified in the supplied datasheet

Warranty & Support

• Warranty terms were not specified in the supplied datasheet
• Confirm final warranty coverage and support conditions with the seller or distributor before purchase

Downloads

• Datasheet - DPA Essential Series 2 Deye Single Phase
