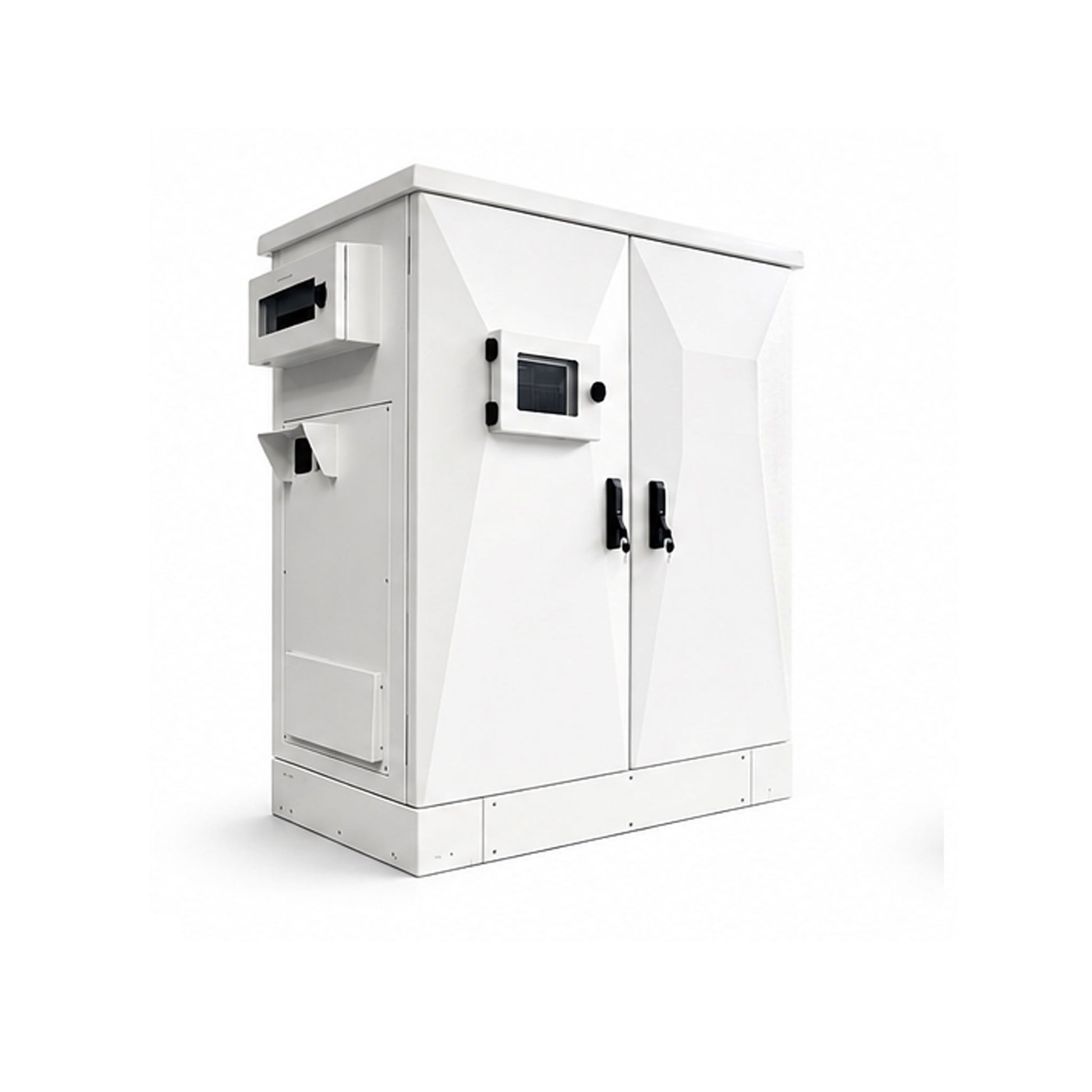

DPA ESSential 8 | Victron | 2 Bay Cabinet
DPA ESSential 8 | Victron | 2 Bay Cabinet
Please sign in to see pricing
Description
Overview
The DPA ESSential 8 | Victron Single Phase 8kVA is a complete single-phase Victron-based energy storage system designed for solar self-consumption, backup support, and integrated power management in a cabinet-based energy storage system. It is built around the Victron MultiPlus-II 48/8000 and matched with Victron SmartSolar charge control and lithium battery storage.
Based on the supplied DPA datasheet, this model delivers nominal output of 6,400 W at 25 degrees C, with a standard storage configuration of 20.48 kWh and an IP55-rated enclosure for practical installed use.
Key Features
Victron Inverter-Charger Performance
- Built around Victron MultiPlus-II 48/8000
- Nominal output of 6,400 W at 25 degrees C, 5,500 W at 40 degrees C, and 4,000 W at 65 degrees C
- Peak power of 15,000 W
- 1 AC input with battery charge current up to 110 A
Solar Input & AC Coupling Flexibility
- DC solar controller model Victron SmartSolar 450/100
- Maximum PV input power of 5,450 W
- Maximum PV input voltage of 450 V and operating range of 65 V to 450 V
- 2 with maximum PV input current of 16 A per tracker
- AC-coupled solar optional, with maximum AC-coupled inverter limit of 8 kW
Battery & Cabinet Configuration
- Standard battery configuration of 20.48 kWh
- Minimum battery configuration of 10.24 kWh and maximum configuration of 35.84 kWh
- LiFePO4 battery platform using Discover 48-48-5120-H (48 V 5.1 kWh)
- Standard configuration uses 4 batteries per Solar Core
- Approximate cabinet weight of 265 kg without batteries
Approvals & Compliance
- IP55 enclosure rating listed in the supplied datasheet
- No additional approvals or compliance certifications were specified in the supplied datasheet
Warranty & Support
- Warranty terms were not specified in the supplied datasheet
- Confirm final warranty coverage and support conditions with the seller or distributor before purchase
Specifications
| System Rating | 8kVA |
|---|---|
| Phase | Single Phase |
| Inverter Charger Model (Victron MultiPlus-II) | 48/8000 |
| Nominal Output Power @ 25 Degrees | 6400W |
| Nominal Output Power @ 40 Degrees | 5500W |
| Nominal Output Power @ 65 Degrees | 4000W |
| Peak Power | 15000W |
| Number Of AC Inputs | 1 |
| Maximum Battery Charge Current | 110A |
| AC Input Voltage Range | 187 - 265VAC |
| Input Frequency | 45 - 65Hz |
| DC MPPT Solar Controller Model (Victron SmartSolar) | 450/100 |
| Maximum PV Input Power @ 54.5V | 5450W |
| Maximum PV Input Voltage @ 54.5V | 450V |
| Operating Voltage Range | 65-450V |
| Maximum PV Input Current | 16A Per Tracker |
| Maximum PV Short-circuit Current | 20A Per Tracker |
| Number Of Trackers | 2 |
| AC Coupled Solar | Optional |
| Maximum AC Coupled Inverter Limit | 8kW |
| Battery Model | Discover 48-48-5120-H (48V 5.1kWh) |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Standard Battery Configuration (With ZYC Simpo 5000) | 20.48kWh |
| Minimum Battery Configuration (With ZYC Simpo 5000) | 10.24kWh |
| Maximum Battery Configuration (With ZYC Simpo 5000) | 35.84kWh |
| Standard Number Of Batteries Per Solar Core | 4 |
| Battery Communication | CANbus / AEBus |
| Cabinet Material | Aluminium |
| IP Rating | IP55 |
| Cooling Method | Fan Cooled (Optional 500W A/C) |
| Dimensions (L x W x H) | 1430 x 650 x 1450 mm |
| Approximate Weight (Without Batteries) | 265kg |
