Description
Overview

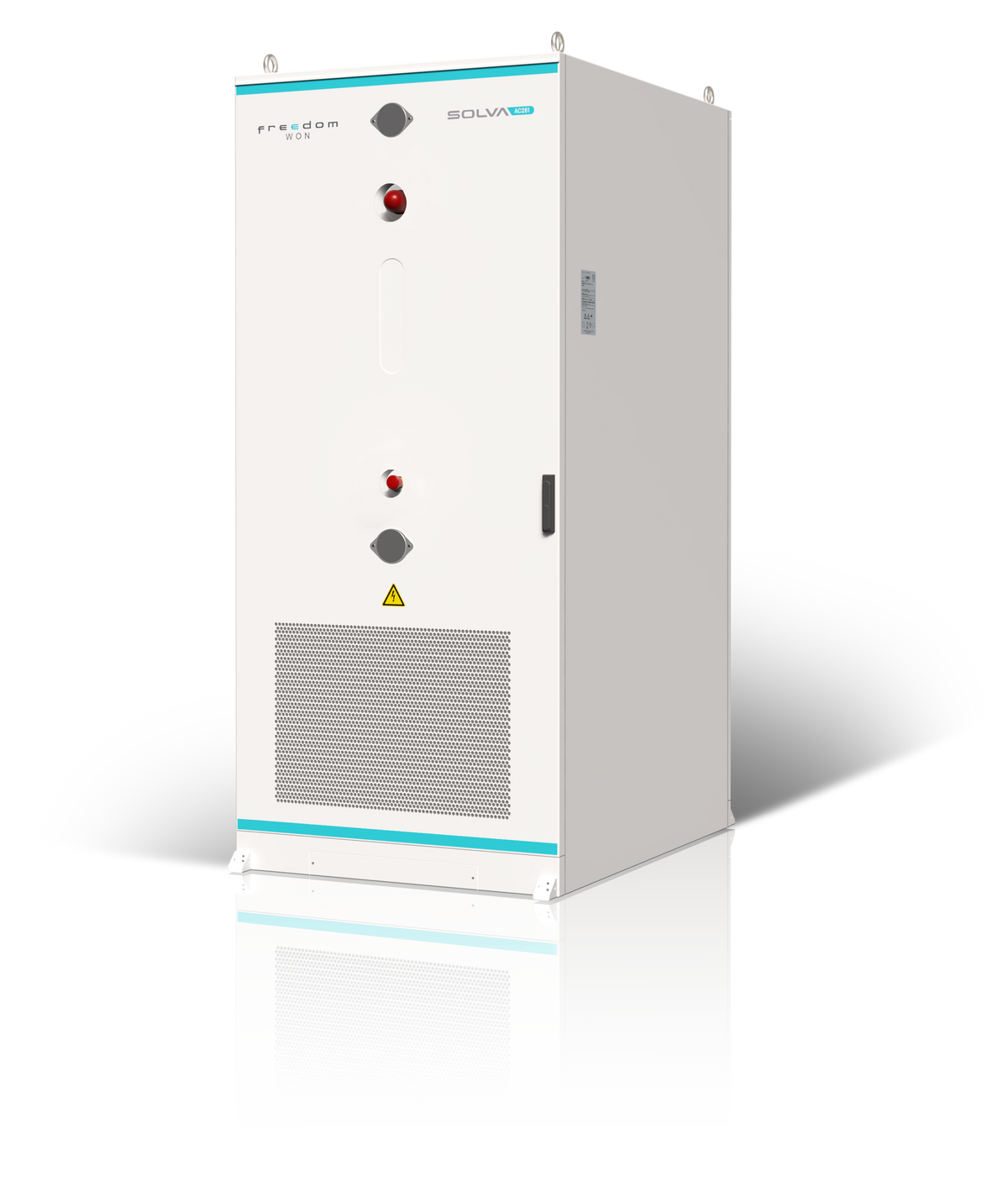

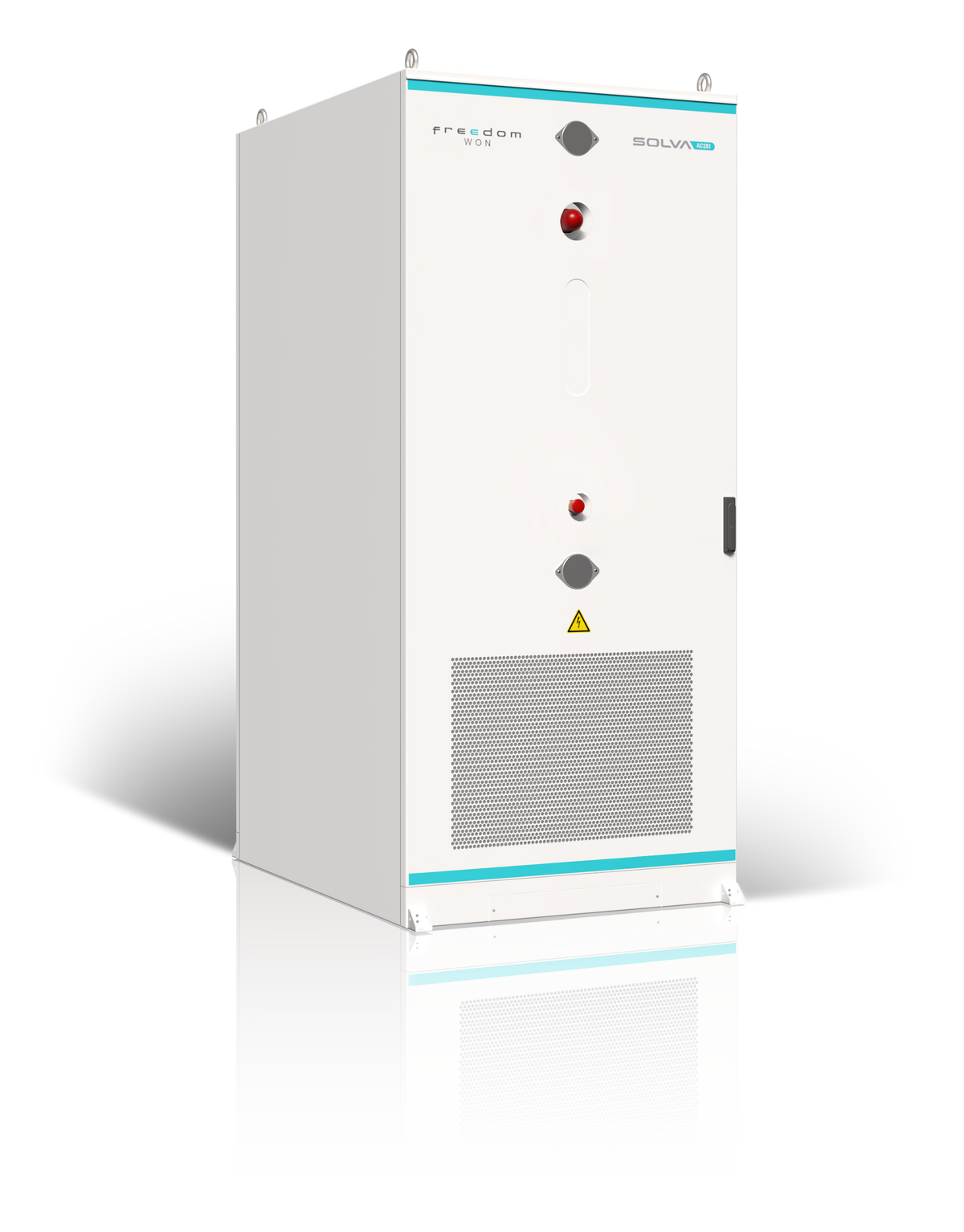

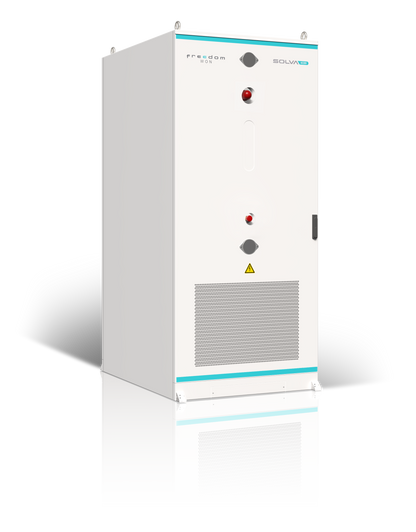

The Freedom Won SOLVA AC261 is an integrated-PCS, AC-coupled Battery Energy Storage System (BESS) cabinet combining 261 kWh of LiFePO₄ storage, an on-board 125 kW power conversion system and intelligent system control in a single outdoor-rated enclosure. Its transformerless topology and all-in-one design make it a rapid-deploy platform for commercial and industrial energy storage.
Active liquid heating and cooling keep the battery packs and PCS at stable operating temperatures, while an integrated Cabinet Monitoring System (CMS), aerosol fire suppression and IP55 / C5 protection deliver safe, reliable operation in demanding environments. The AC261 scales to 20 cabinets in parallel on-grid (8 off-grid) for multi-MWh deployments.
Key Features
Integrated AC-Coupled Platform
- 261 kWh LiFePO₄ storage with 90% depth of discharge
- On-board 125 kW PCS — transformerless, reducing balance-of-system cost
- 400 V three-phase (3P+N+PE) AC output, 50/60 Hz
Advanced Thermal Management
- Integrated liquid heating (2 kW) and cooling (5 kW) for stable pack temperatures
- Intelligent air cooling for the inverter/PCS section
- Wider outdoor operating envelope with reduced thermal stress for longer cell life
Grid Support & Scalability
- Full active/reactive power capability, power factor 1.0 leading to 1.0 lagging
- Parallel scalable: up to 20 cabinets on-grid / 8 off-grid
- Total current harmonic distortion (THD-I) <2% at rated power
Safety & Protection
- Aerosol fire suppression system integrated at cabinet level
- AC over-current, over-voltage, short-circuit and anti-islanding protection; DC reverse-polarity protection
- IP55 ingress protection and C5 corrosion class for coastal / high-humidity sites
Monitoring & Communication
- Built-in Cabinet Monitoring System (CMS) with local storage and cloud sync
- RS485 (EMS), CAN (BMS), PARA (STS) and LAN (Network) interfaces
- Certified to UN38.3, IEC 62619/62477/60730/61000/60529, NRS 097-2-1 and AS/NZS 4777.2:2020 — 5-year warranty
Specifications
| Model | SOLVA AC261 |
|---|---|
| Type | Integrated-PCS AC-Coupled BESS Cabinet |
| Cell Capacity | 314Ah |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Total Energy Capacity | 261kWh |
| System Depth of Discharge | 90% |
| Nominal Voltage | 832V |
| Max/Min Operating Voltage | 936/728V |
| Cell Configuration | 1P52S per module, 5 modules per pack |
| Battery Pack Thermal Management | Liquid Heating and Cooling |
| Integrated PCS Rated Power | 125kW |
| System Output AC Voltage | 400V |
| Rated Frequency | 50/60Hz |
| AC Connection Method | (3P+N+PE) Three-Phase, Four-Wire System |
| Power Factor Range | 1.0 leading to 1.0 lagging (full active/reactive power) |
| Total Current Harmonic Distortion (THD-I) | <2% (at Rated Power) |
| Isolation Type | Transformerless |
| Cable Entry | Bottom Entry |
| Max. Auxiliary Power / Current | 2.8kW / 13.4A |
| Cooling Capacity | 5kW |
| Heating Capacity | 2kW |
| System Total Efficiency | ≥88% |
| Dimensions (H×W×D) ±5mm | 2346×1050×1376mm |
| Weight | 2.7 Tons |
| Ingress Protection | IP55 |
| Corrosion Protection Class | C5 |
| Inverter Thermal Management | Intelligent Air Cooling |
| Communication Interface | RS485 (EMS), CAN (BMS), PARA (STS), LAN (Network) |
| Parallel Configuration | Up to 20 cabinets on-grid / 8 cabinets off-grid |
| Protection | AC overcurrent, overvoltage, short-circuit, anti-islanding; DC reverse-polarity |
| Fire Suppression System | Aerosol |
| Operating Temperature | -20 to 55°C |
| Operating Humidity | ≤95% |
| Max. Operating Altitude | Full load up to 2000m; derate 10% per 1000m up to 4000m |
| Standards & Certifications | UN38.3, IEC 62619, IEC 62477, IEC 60730, IEC 61000, IEC 60529, NRS 097-2-1, AS/NZS 4777.2:2020 |
| Standard Warranty | 5 years (extension available) |
