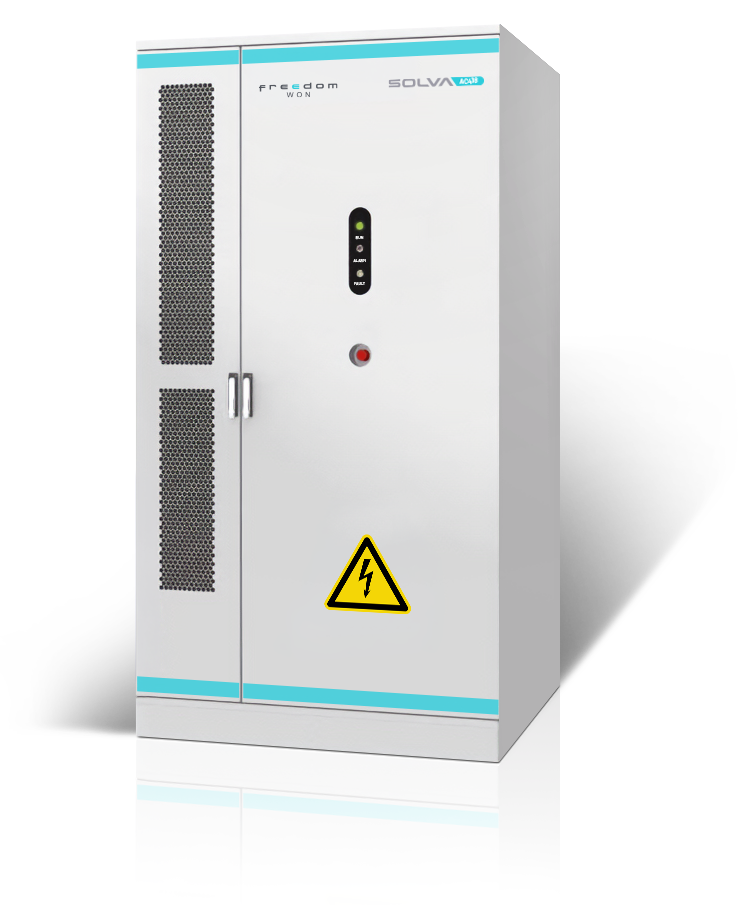

Freedom Won SOLVA AC418 418kWh Integrated-PCS BESS Cabinet
Freedom Won SOLVA AC418 418kWh Integrated-PCS BESS Cabinet
Description
Overview
The Freedom Won SOLVA AC418 is a large-scale, integrated-PCS Battery Energy Storage System (BESS) cabinet combining 418 kWh of LiFePO₄ storage with an on-board 215 kW, 690 V power conversion system. Its higher-voltage AC architecture is built for MW-class commercial, industrial and utility deployments, pairing with an MV step-up transformer for grid-scale sites.
Active liquid heating and cooling (8 kW cooling), aerosol fire suppression, IP54 / C5 protection and a built-in Cabinet Monitoring System (CMS) deliver safe, reliable operation. The AC418 scales to 20 cabinets in parallel on-grid (8 off-grid) for multi-MWh energy storage.
Key Features
Grid-Scale Integrated Platform
- 418 kWh LiFePO₄ storage with 90% depth of discharge
- On-board 215 kW PCS with 690 V three-phase (3P+N+PE) AC output
- Use with an MV step-up transformer for grid-scale deployment
Advanced Thermal Management
- Integrated liquid heating (2 kW) and cooling (8 kW) for stable pack temperatures
- Intelligent air cooling for the inverter/PCS section
Grid Support & Scalability
- Adjustable power factor 0.99 leading to 0.99 lagging for full active/reactive power control
- Parallel scalable: up to 20 cabinets on-grid / 8 off-grid
- Total current harmonic distortion (THD-I) <3% at rated power
Safety & Protection
- Aerosol fire suppression system integrated at cabinet level
- AC over-current, over-voltage, short-circuit and anti-islanding protection; DC reverse-polarity protection
- IP54 ingress protection and C5 corrosion class
Monitoring & Communication
- Built-in Cabinet Monitoring System (CMS) with local storage and cloud sync
- RS485 (EMS), CAN (BMS), PARA (STS) and LAN (Network) interfaces
- Certified to GB/T 36276-2023, IEC 62619 and UN38.3 — 5-year warranty
Specifications
| Model | SOLVA AC418 |
|---|---|
| Type | Integrated-PCS (690V) AC-Coupled BESS Cabinet |
| Cell Capacity | 314Ah |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Total Energy Capacity | 418kWh |
| System Depth of Discharge | 90% |
| Nominal Voltage | 1331.2V |
| Max/Min Operating Voltage | 1497.6/1164.8V |
| Cell Configuration | 1P52S per module, 8 modules per pack |
| Battery Pack Thermal Management | Liquid Heating and Cooling |
| Integrated PCS Rated Power | 215kW |
| System Output AC Voltage | 690V (-15% to +15%) |
| Rated Frequency | 50/60Hz |
| AC Connection Method | (3P+N+PE) Three-Phase, Four-Wire System |
| Power Factor Range | 0.99 leading to 0.99 lagging |
| Total Current Harmonic Distortion (THD-I) | <3% (at Rated Power) |
| Isolation Type | Non-isolated |
| AC Cable Entry | Bottom Entry |
| Liquid Thermal Power Supply | 1/PE AC 220V 50/60Hz |
| Cooling Capacity | 8kW |
| Heating Capacity | 2kW |
| System Total Efficiency | ≥88% |
| Dimensions (H×W×D) ±5mm | 2550×1350×1350mm |
| Weight | 4.3 Tons |
| Ingress Protection | IP54 |
| Corrosion Protection Class | C5 |
| Inverter Thermal Management | Intelligent Air Cooling |
| Communication Interface | RS485 (EMS), CAN (BMS), PARA (STS), LAN (Network) |
| Parallel Configuration | Up to 20 cabinets on-grid / 8 cabinets off-grid |
| Protection | AC overcurrent, overvoltage, short-circuit, anti-islanding; DC reverse-polarity |
| Fire Suppression System | Aerosol |
| Operating Temperature | Charging: 0 to 55°C; Discharging: -20 to 55°C |
| Operating Humidity | ≤95% |
| Max. Operating Altitude | Full load up to 2000m; derate 10% per 1000m up to 4000m |
| Standards & Certifications | GB/T 36276-2023, IEC 62619, UN38.3 |
| Standard Warranty | 5 years (extension available) |
