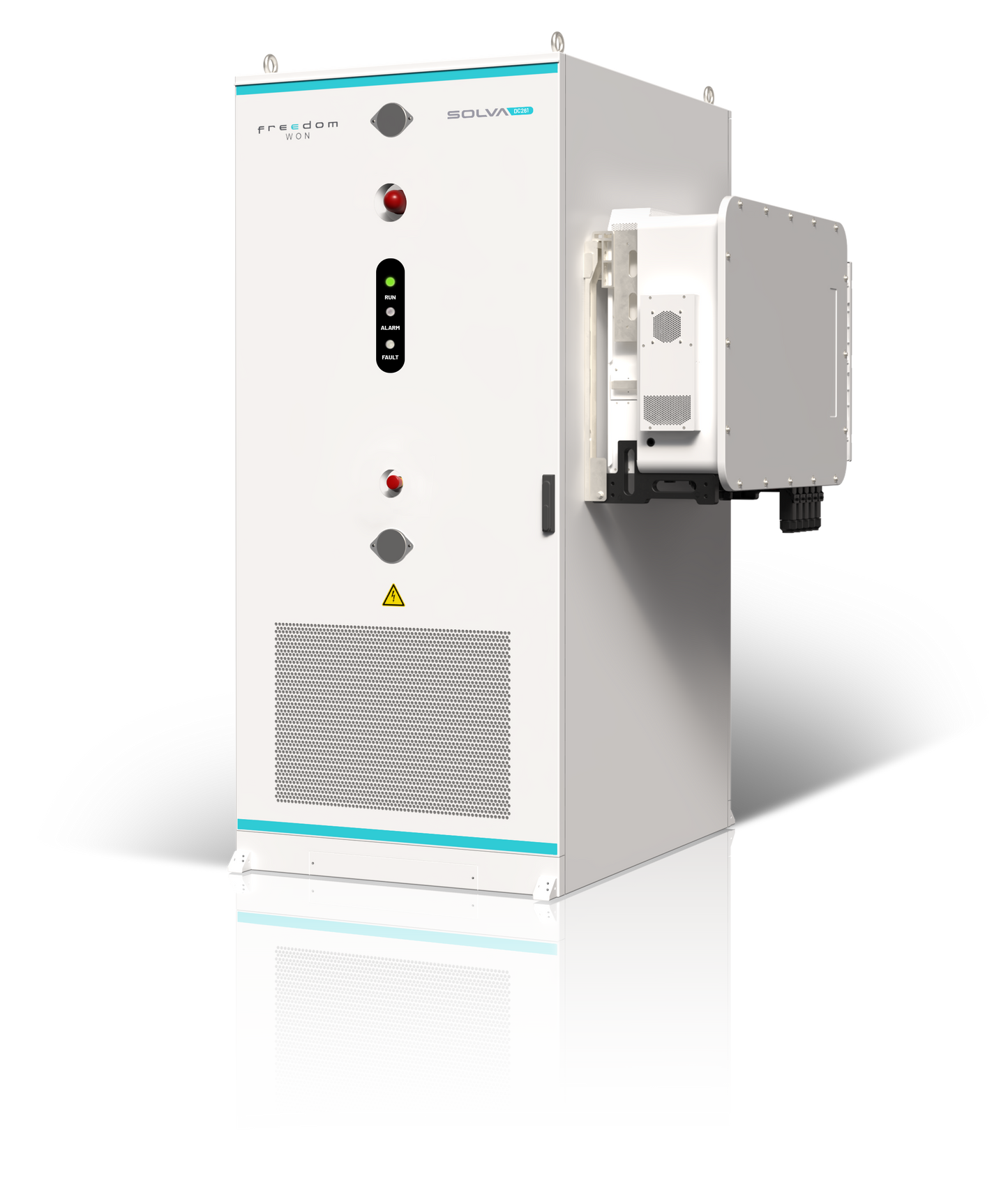

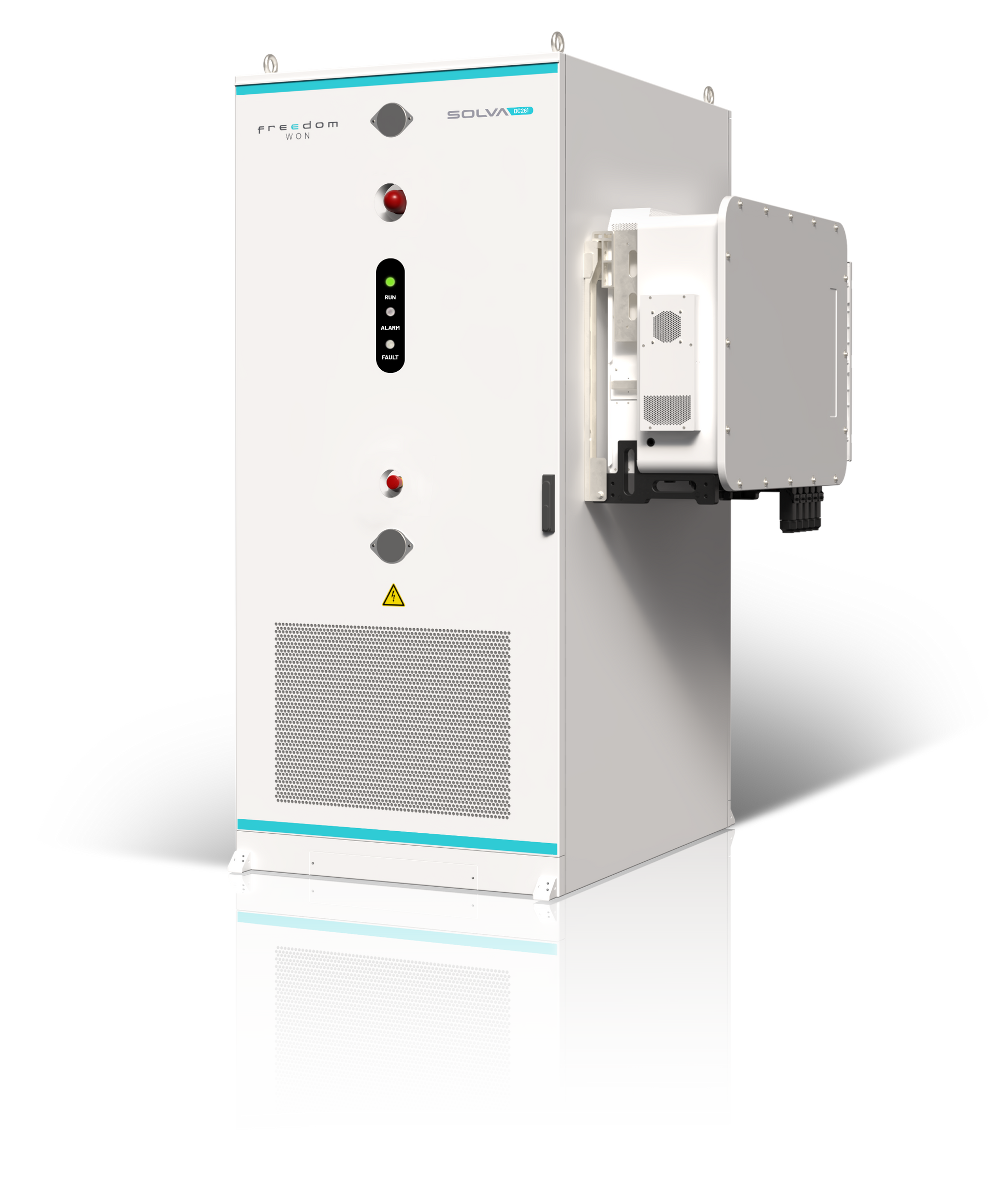

Freedom Won SOLVA DC261 261kWh DC-Coupled Battery Cabinet
Freedom Won SOLVA DC261 261kWh DC-Coupled Battery Cabinet
Description
Overview
The Freedom Won SOLVA DC261 is a DC-coupled Battery Energy Storage System (BESS) cabinet delivering 261 kWh of LiFePO₄ storage through integrated DC busbars rated for 125 kW. Designed to pair with an external hybrid inverter, its flexible DC-coupled architecture lets you scale storage with your choice of inverter platform.
Up to 12 cabinets can be connected in DC parallel (with an additional controller), with external inverters connected in AC parallel. Active liquid heating and cooling, aerosol fire suppression, IP55 / C5 protection and a built-in Cabinet Monitoring System (CMS) deliver safe, reliable operation in commercial and industrial installations.
Key Features
Flexible DC-Coupled Architecture
- 261 kWh LiFePO₄ storage with 90% depth of discharge
- Integrated DC busbars rated 125 kW for an external hybrid inverter
- Up to 12 cabinets in DC parallel (additional controller required)
Advanced Thermal Management
- Integrated liquid heating (2 kW) and cooling (5 kW) for stable pack temperatures
- Reduced thermal stress for extended battery lifespan
Safety & Protection
- Aerosol fire suppression system integrated at cabinet level
- DC breaker protection
- IP55 ingress protection and C5 corrosion class for coastal / high-humidity sites
Monitoring & Communication
- Built-in Cabinet Monitoring System (CMS) with local storage and cloud sync
- RS485 (EMS), CAN (BMS) and LAN (Network) interfaces; CAN Bus to external inverter
- Certified to UN38.3, IEC 62619/62477/60730/61000/60529 — 5-year warranty
Specifications
| Model | SOLVA DC261 |
|---|---|
| Type | DC-Coupled Battery Cabinet |
| Cell Capacity | 314Ah |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Total Energy Capacity | 261kWh |
| System Depth of Discharge | 90% |
| Nominal Voltage | 832V |
| Max/Min Operating Voltage | 936/728V |
| Cell Configuration | 1P52S per module, 5 modules per pack |
| Battery Pack Thermal Management | Liquid Heating and Cooling |
| External Hybrid Inverter Connection | Integrated DC Busbars - rated for 125kW |
| DC Cabinet Parallel Connection | Up to 12 cabinets in parallel (additional controller required) |
| External Inverter Communication Interface | CAN Bus |
| DC Cable Entry | Bottom Entry |
| Max. Auxiliary Power / Current | 2.8kW / 13.4A |
| Cooling Capacity | 5kW |
| Heating Capacity | 2kW |
| Dimensions (H×W×D) ±5mm | 2346×1050×1376mm |
| Weight | 2.5 Tons |
| Ingress Protection | IP55 |
| Corrosion Protection Class | C5 |
| Communication Interface | RS485 (EMS), CAN (BMS), LAN (Network) |
| Protection | DC Breaker |
| Fire Suppression System | Aerosol |
| Operating Temperature | -20 to 55°C |
| Operating Humidity | ≤95% |
| Max. Operating Altitude | Full load up to 2000m; derate 10% per 1000m up to 4000m |
| Standards & Certifications | UN38.3, IEC 62619, IEC 62477, IEC 60730, IEC 61000, IEC 60529 |
| Standard Warranty | 5 years (extension available) |
